2001-2006 Mazda Tribute Rear Wiper Motor: Fixing the Common Seized Shaft

Symptoms of a Failing Rear Wiper Motor

When the rear wiper motor on a 2001-2006 Mazda Tribute begins to fail, the symptoms are usually obvious. Paying attention to these signs can help you determine if the motor is the problem or if another part of the system is at fault.

• Wiper is Slow, Struggles, or is Completely Stuck: This is the most common symptom. Often, the wiper will start moving slower than usual before eventually seizing completely. This is frequently caused by the internal shaft corroding and binding within its housing, not necessarily an electrical failure of the motor itself.
• Humming or Grinding Noise, but No Movement: If you activate the rear wiper and hear a humming or buzzing sound from the back of the vehicle but the arm doesn't move, the motor is receiving power but is likely seized internally or the drive gear is stripped.
• Wiper Doesn't Move and Makes No Sound: If there's no movement and no sound, the issue could be a dead motor, a blown fuse, a bad switch, or broken wiring. The wires in the flexible harness between the liftgate and the body are a common failure point, as they can break from repeated opening and closing of the hatch.
• Intermittent Operation: The wiper may work sometimes but not others. This can point to a developing electrical issue inside the motor, a loose connection, or a failing relay.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

The 2001-2006 Mazda Tribute shares its platform with the Ford Escape (2001-2007) and Mercury Mariner (2005-2007), meaning they share many of the same parts and problems.

Common Failure Point: Seized Wiper Shaft

The single most common issue with this rear wiper motor is not the motor itself, but the output shaft that the wiper arm attaches to. Over time, moisture gets past the outer seal and causes corrosion between the metal shaft and its housing. This corrosion causes the shaft to bind, putting immense strain on the motor. Eventually, the shaft will seize completely, and the motor will either burn out trying to move it or simply stop trying. When diagnosing a failed rear wiper, it's often this seized shaft that is the root cause.

Recall Notice: 2006 FRONT Wiper Motor

There was a safety recall (NHTSA ID: 05V-525, Mazda Recall No: 3705K) issued in November 2005 for some 2006 Mazda Tribute vehicles. This recall was for the FRONT windshield wiper motor only. The issue was that the motor's internal gears may not have been properly greased at the factory, potentially leading to failure. This recall does not apply to the rear wiper motor discussed in this article. There are no known safety recalls for the rear wiper motor on this vehicle.

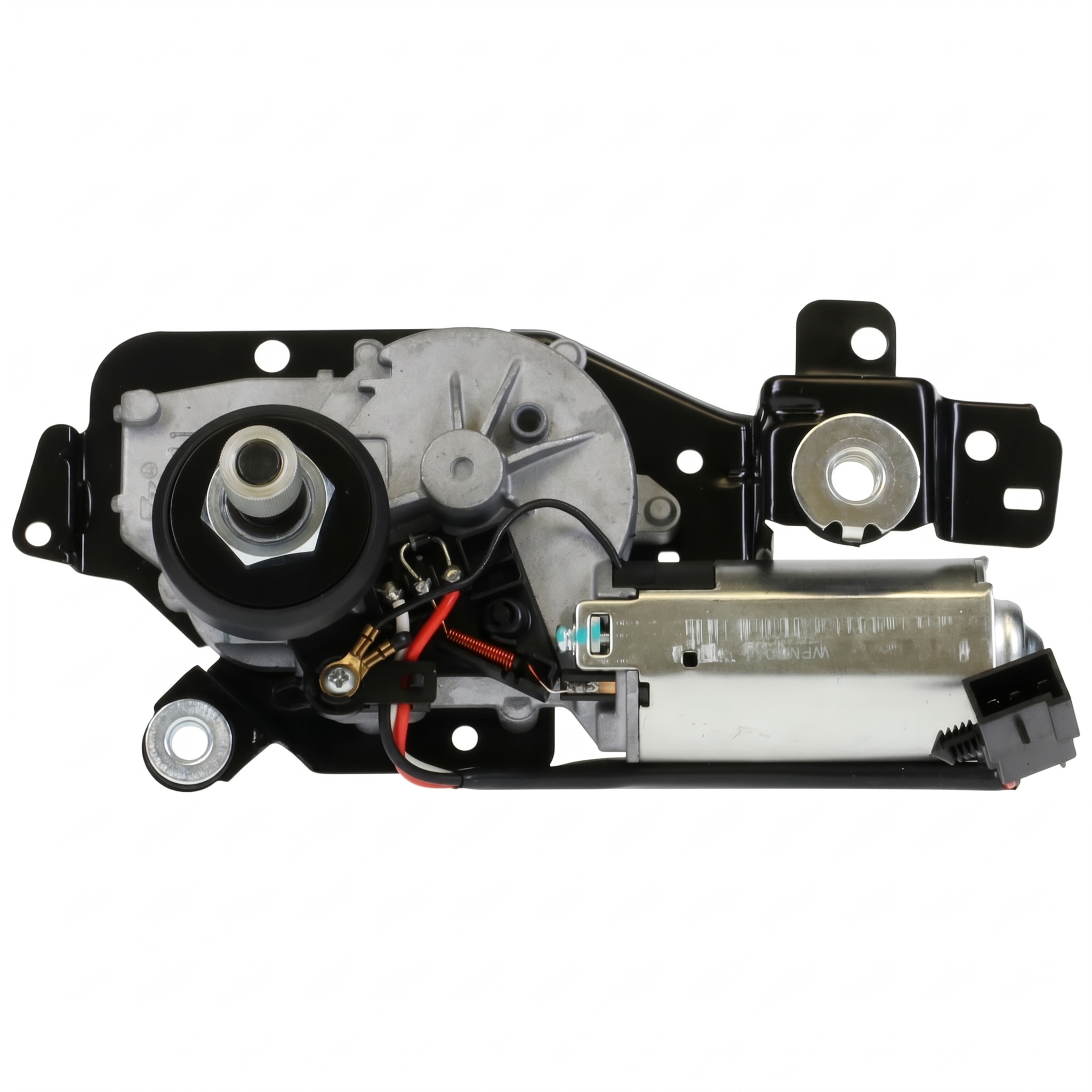

Buying a Used Rear Wiper Motor

A used OEM motor is an excellent, cost-effective option for this repair. Since the most common failure is a seized shaft from moisture, a part from a dry, low-mileage vehicle can provide years of service. Here’s what to look for:

• Verify the Shaft Turns Freely: This is the most important check. Ask the seller to confirm that the splined output shaft can be turned by hand. It should move with some resistance due to the gearing, but it should not be frozen solid.
• Inspect for Corrosion: Look at the area where the shaft exits the motor housing. Heavy rust or corrosion is a red flag indicating significant moisture intrusion.
• Check the Connector: The 2001-2006 Tribute uses a specific 3-pin electrical connector. Later models (2008+) used a different 8-pin connector. Ensure the connector on the used part matches your original to avoid compatibility issues.
• Confirm Part Numbers: Cross-reference the OEM part numbers if possible. Common Ford and Mazda numbers for this part include 4L8Z-17508-AB, YL8Z-17508-AB, and EC01-67-450A.

Replacement Overview & Difficulty

Replacing the rear wiper motor is a manageable DIY task for most people with basic tools, but it comes with one major potential challenge.

• Difficulty: 3 out of 5
• Estimated Time: 1-2 hours

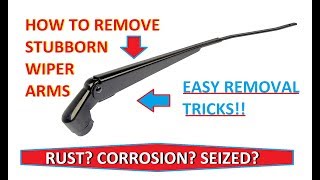

• Key Challenge: The most difficult part of the job is often removing the old wiper arm from the motor's corroded shaft. The arm can become fused to the shaft and may require a special battery terminal/wiper arm puller tool. 🎬 Watch these clever tricks to remove a stuck wiper arm. In severe cases, the retaining nut may be so rusted that it needs to be broken off with a nut splitter.

General Replacement Steps:

1. Lift the plastic cap at the base of the wiper arm and remove the retaining nut.
2. Attempt to remove the wiper arm. If it is stuck, use a puller tool. Apply penetrating oil if necessary.
3. Open the rear liftgate and remove the large interior trim panel. It is held on by clips and possibly a few screws, so pull carefully to release it.
4. With the panel off, the wiper motor is visible. Disconnect the single electrical connector.
5. Remove the two or three bolts holding the motor to the liftgate frame.
6. Install the new motor, reconnect the electrical plug, and reinstall the interior panel and wiper arm.

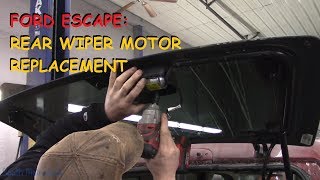

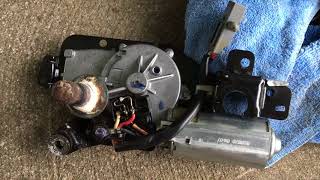

🎬 Watch this step-by-step rear wiper motor replacement guide.

Cost of Replacement

The cost to replace the rear wiper motor can vary significantly depending on the type of part used and whether you perform the labor yourself.
