2004-2006 Scion xB Wiper Motor Guide: Fixing Slow or Dead Wipers

Symptoms of a Failing 2004-2006 Scion xB Wiper Motor

Wiper motor failure is often gradual. Recognizing the early signs can help you diagnose the problem before you're caught in a storm with no visibility. Here are the most common symptoms:

• Slow or Hesitant Wipers: The wipers move across the glass much slower than they used to, even on the fastest setting. They might seem to struggle or move in a jerky, hesitant motion. This can be caused by internal wear or debris inside the motor's mechanical components.
🎬 Watch: How to fix slow moving or seized windshield wipers
• Only One Speed Works: You may find that the wipers only function on one speed, typically the high setting. If the low and intermittent settings stop working, it often points to a problem within the motor's internal circuitry or resistor.
• Wipers Don't 'Park' Correctly: When you turn the wipers off, they should automatically return to their resting position at the bottom of the windshield. If they stop in the middle of the glass or wherever they are when you flip the switch, it usually indicates a failure of the internal park switch mechanism inside the motor.
• Humming or Buzzing Noises: You might hear a distinct electrical humming or buzzing sound from the base of the windshield when the wipers are turned on, but the arms don't move. This typically means the motor is receiving power but is either internally seized or the wiper linkage is jammed.
• Wipers Don't Move at All: The most obvious symptom is a complete lack of movement when you activate the wiper switch. While this can be the motor itself, it's important to check other potential causes first, like a blown fuse or a bad switch.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) issued by Toyota or the NHTSA for widespread failure of the windshield wiper motor on the 2004-2006 Scion xB. While other recalls exist for this vehicle generation (related to airbags and window switches), the wiper system has proven to be generally reliable. Any failure is typically due to normal age and wear rather than a specific manufacturing defect.

Step-by-Step Diagnosis

Before spending money on a new motor, follow these steps to confirm it's the source of the problem.

1. Check the Fuse: This is the simplest and most important first step. Locate the fuse box and find the fuse for the wipers. If it's blown, replace it with a new one of the same amperage. If the new fuse blows immediately, it indicates a short circuit in the system, possibly in the motor itself.
2. Listen to the Motor: With the engine off but the key in the 'ON' position, have a friend operate the wiper switch while you listen near the cowl panel at the base of the windshield. If you hear a humming sound, the motor is getting power, and the issue may be a seized motor or a jammed linkage. If you hear nothing, the problem is likely electrical.
3. Test for Voltage: If you have a multimeter, you can perform a more definitive test. Unplug the electrical connector from the wiper motor. With the key on and the wiper switch activated, carefully test the terminals in the connector for 12-volt power. If you have power and ground at the connector, but the motor doesn't run when plugged in, the motor has failed. If you do not have power, the problem lies elsewhere, such as the wiper switch, a relay, or the wiring.

Buying a Used Windshield Wiper Motor

A used OEM wiper motor can be a reliable and cost-effective alternative to expensive new parts. Since this part is not a common failure item, a low-mileage used unit is often a smart purchase. Here’s what to look for:

• Inspect the Electrical Connector: The pins inside the electrical connector should be clean, straight, and free of any green or white corrosion. Corrosion indicates water intrusion, which is a primary cause of electrical failure.
• Check the Output Shaft: Look at the splined shaft where the wiper linkage attaches. Ensure the splines are well-defined and not stripped or worn down. The shaft should be straight and not bent.

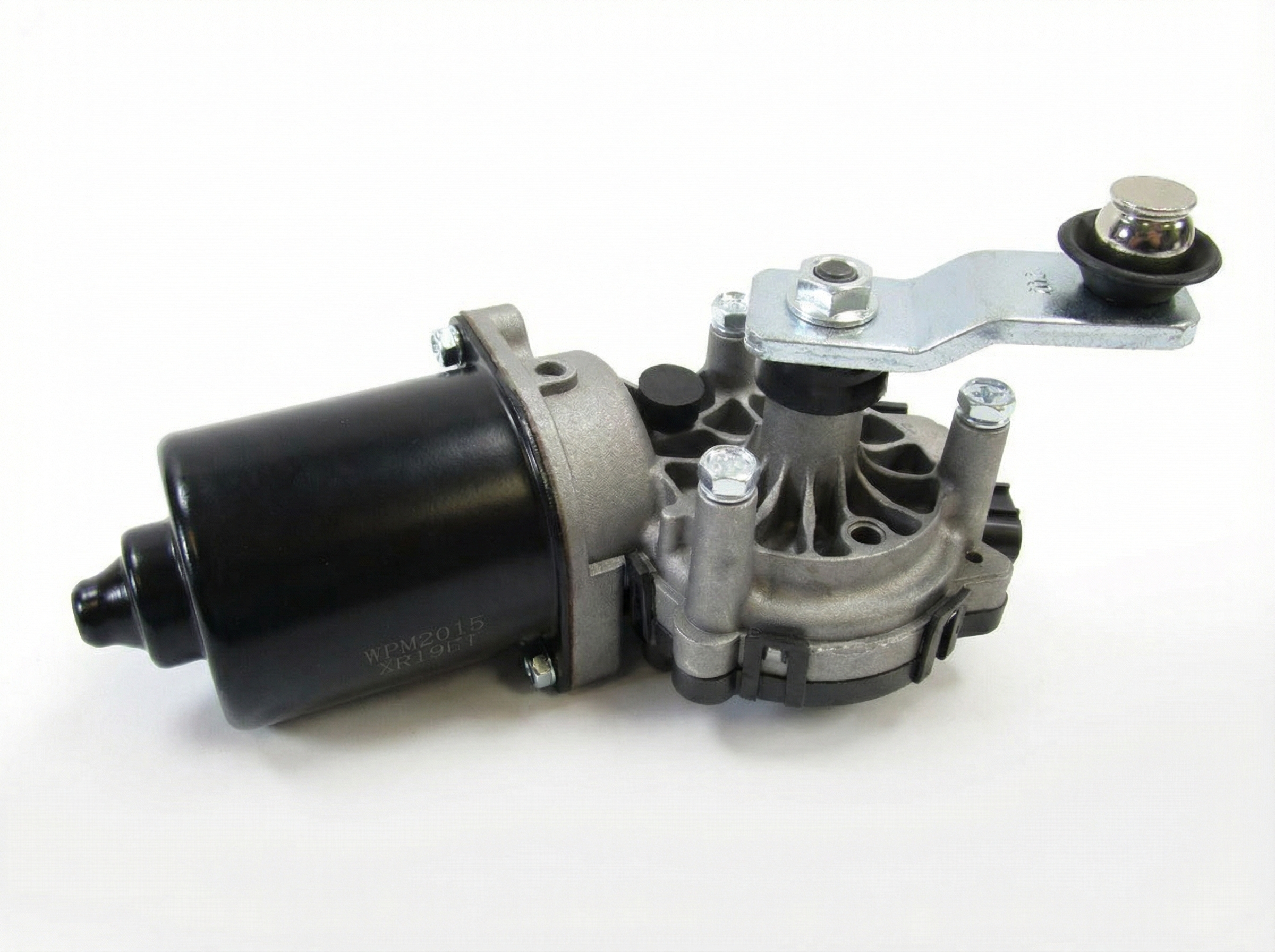

• Verify Compatibility: The front windshield wiper motor for the 2004-2006 Scion xB is Toyota OEM part number 85110-52240. Ensure the part you are buying matches this number or is confirmed to be a direct replacement from the same year range vehicle.
• Ask About Mileage: If possible, choose a motor from a vehicle with lower mileage. A motor from a car with 80,000 miles is likely to have much more life left than one from a car with 200,000 miles.
• Why Used OEM is a Good Choice: An original Toyota motor is designed for perfect fitment and electrical compatibility with your Scion's system. Cheaper aftermarket parts can sometimes have different wiring or slightly off-spec mounting points, leading to installation headaches or premature failure.

Replacement Overview & Difficulty

Replacing the wiper motor on a 2004-2006 Scion xB is a straightforward job for a DIY mechanic with basic tools.

• Difficulty: 2 out of 5
• Estimated Time: 1 to 1.5 hours
• Tools Needed: Socket set, wrenches, flathead screwdriver, trim removal tool (optional).

The basic process involves removing the wiper arms, taking off the plastic cowl panel that sits at the base of the windshield, unbolting the wiper linkage assembly, and then unbolting the motor from the linkage. Installation is the reverse of removal.
