Overview

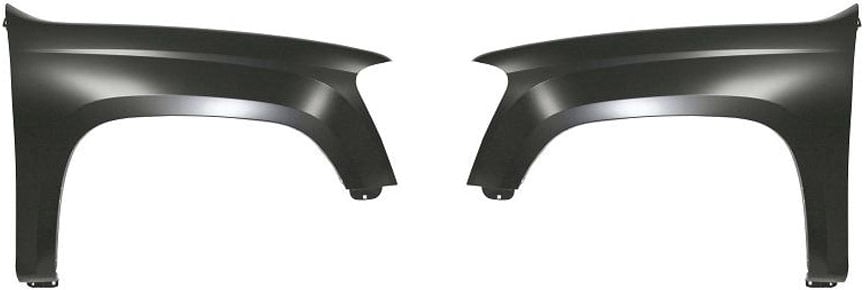

The GMC Canyon's fender-also called the front wheel-arch panel or mudguard-covers the tire, keeps rocks and water from spraying, and forms part of the truck's crash-energy "crumple" zone. Tests show the 2022 Canyon's crew-cab body, including its steel fenders, earned top "Good" marks in most crash categories IIHS safety rating. Modern fenders tie into high-strength steel rails and bolt to the hood hinge pillar, apron, and bumper bracket, so damage here often affects door and hood gaps.

Model Years

• First generation (2004-2012): straight-edge steel fender; no factory flares.
• Second generation (2015-2022): wider flare lip and plastic liners; A-pillar reinforcement added for 2017.
• Third generation (2023-present): 3-inch-wider track, factory 2- or 3-inch lift, and bolt-on composite flare pieces on AT4X. Replacement fenders from any one generation will not interchange with another because mounting holes, width, and side-marker light cut-outs differ.

Purpose & Safety

A fender is more than a splash guard. It helps channel air around the wheel to cut drag, supports pedestrian-protection features, and folds in a controlled way during a crash to spread impact loads. In many U.S. states you can be ticketed if you drive without a fender that stops debris from leaving the wheel well; Washington's "dropping-load" law is a common example.

Construction

Most Canyon fenders are stamped from 0.8-mm galvanized steel, e-coat-primed, and seam-sealed-only the hood is aluminum. Engineers add small "crush beads" near the leading edge so the metal buckles predictably in a collision. Inside surfaces carry an e-coat layer; experts note e-coat is the best long-term rust barrier inside enclosed panels.

Common Damage

Front-end bumps, parking-lot scrapes, and stone chips are the usual culprits. Owners in snow-belt states report rust first appears where the inner liner traps mud at the wheel-lip fold. Power-steering recall 21V-213 also mentions corrosion at electrical connectors; although unrelated to body panels, it shows how salt can migrate under the hood.

Care & Rust-Proofing

Rinse the wheel arch after every salt drive, then apply spray-wax or oil-wax to the seam once a year. A DIY wand and cavity wax kit costs less than a single body repair and reaches the hidden backside of the panel. Regular washing plus a ceramic or paste-wax coat keeps water from sitting on the paint.

DIY Replacement

Replacing a Canyon fender is a bolt-off, bolt-on job that an experienced hobbyist can finish in two to three hours:

1. Disconnect battery and remove wheel-liner screws.
2. Unbolt headlamp and bumper corner screws to expose the upper flange bolts.
3. Support the panel, then remove the 10-mm and 13-mm bolts along the hood edge and A-pillar.
4. Lift off, transfer side-marker wiring, and reverse steps. A video walk-through shows the process on a Colorado (same body). (YouTube) Always test-fit before paint.

Upgrades & Flares

2023-plus AT4X models mount larger composite flare pieces and under-fender cameras for trail spotting. Owners of earlier trucks often add bolt-on pocket flares for extra tire coverage; installation uses existing liner holes and butyl tape to seal the wheel-lip. (YouTube)

Environmental Notes

Damaged steel fenders are 100 % recyclable, and GM's plants scan body panels with lasers to verify weld integrity before e-coating, reducing scrap. Used solvent and sanding dust from body work fall under EPA hazardous-waste rules; shops must collect and label this waste properly.

Frequently Asked Questions

Q: What does a fender do on a truck?
A: It shields the tire, blocks road spray, shapes airflow, and helps absorb crash energy.

Q: Are Canyon fenders the same as Colorado fenders?
A: Yes within the same generation; both trucks share the GMT 31XX and 32XX bodies, so panels interchange left-to-right but not across generations.

Q: Steel or aluminum?
A: All Canyon front fenders are steel; only the hood is aluminum on most trims.

Q: How can I spot rust early?
A: Feel the inner wheel-lip; bubbling paint or roughness means corrosion is starting under the seam sealer.

Q: Can I drive without a fender?
A: In most states no-laws require trucks to prevent rocks or loose loads from leaving the wheels.

Q: Do I need to remove the bumper to change the fender?
A: On 2015-22 models you loosen the bumper corner and headlamp; full bumper removal is not required. (YouTube)

Q: Should I reuse factory bolts?
A: Yes. They are class-10.9 flange bolts designed to distribute load; clean them and apply thread-sealant.

Q: Will bigger tires rub the new fender?
A: Stock clearance handles up to a 32-inch tire. The 2023 AT4X's widened fender flare clears 33-inch MT tires.

Q: How often should I wax the wheel arch?
A: Twice a year in mild climates; every 3 months where roads are salted.

Q: What paint code matches my truck?
A: The service parts identification label inside the glovebox lists the base-coat code (e.g., "GAN" for Summit White).

Q: Does replacing a fender void my corrosion warranty?
A: No, but keep receipts and ensure e-coat or equivalent primer is applied to the backside, as recommended by collision-repair best practices.
