Buy Honda Civic Side View Mirrors

Honda Civic side mirrors-also called side-view, door, or wing mirrors-do much more than reflect traffic. On modern Civics they can heat away frost, warn about blind spots, stream a LaneWatch® camera view, and even fold in by themselves. They mount with three 10 mm nuts behind the sail panel and plug into a single wiring connector, making DIY swap-outs fairly simple. U.S. rules say every car must have a driver-side outside mirror, and the passenger mirror must be marked "Objects in mirror are closer than they appear" because it is convex. Replacing a complete assembly averages $810-$837, while just the painted cap or glass costs far less. (YouTube, Federal Register, RepairPal.com)

Quick Facts

• Fits: All Honda Civic body styles from 2016-2025 (sedan, hatchback, Si, Type R) with trim-specific wiring for options like LaneWatch or Blind-Spot Information (BSI). (techinfo.honda.com, techinfo.honda.com)
• Legal basics: Mirrors must meet the federal FMVSS 111 vision rule, and most states require at least the left mirror; Florida, for example, writes that into its driver handbook. (, Florida Highway Safety)
• Main features: Power adjustment, heating grid, built-in turn signal, convex passenger glass, auto-dimming (Touring), LaneWatch camera (2013-2021 on EX/EX-L/Touring), BSI indicator lamp (2022+), and optional power-fold motors. (Honda Owners, Popular Mechanics, techinfo.honda.com, CivicXI)

Key Parts

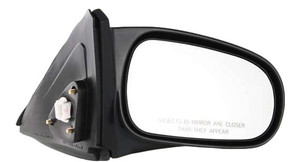

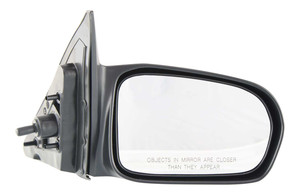

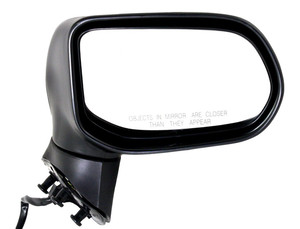

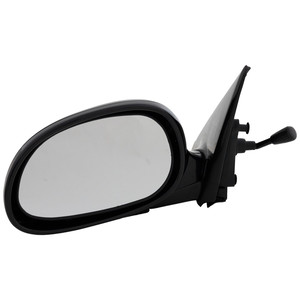

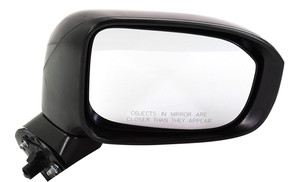

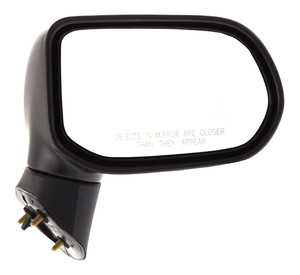

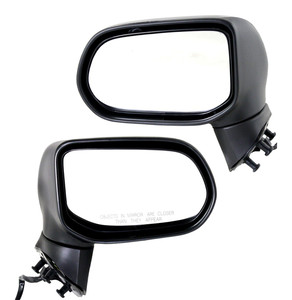

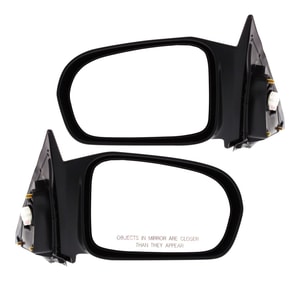

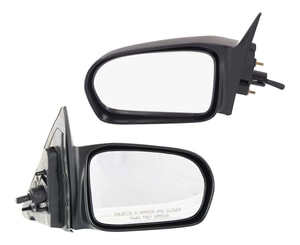

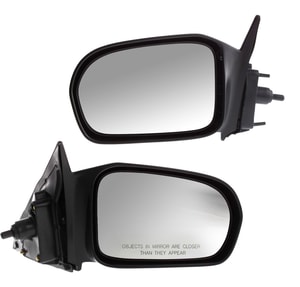

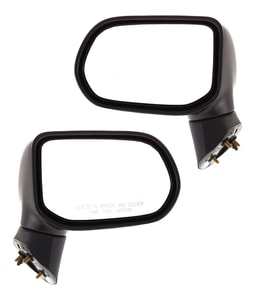

1. Mirror glass - flat on the driver side, convex on the passenger side for a wider field of view. (Wikipedia)

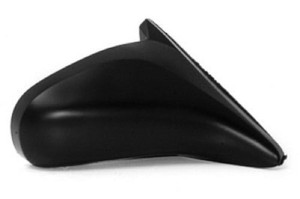

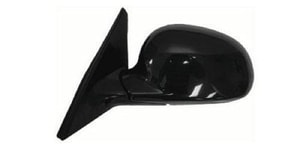

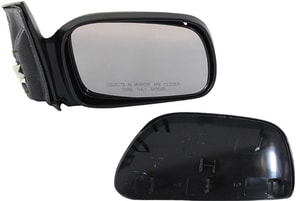

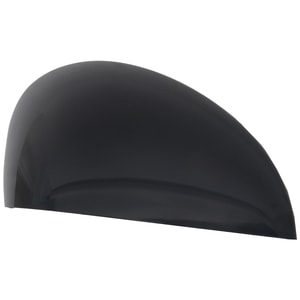

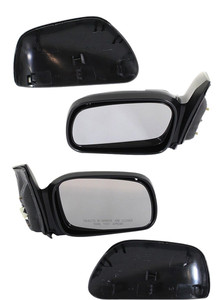

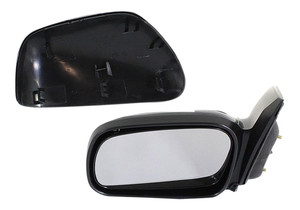

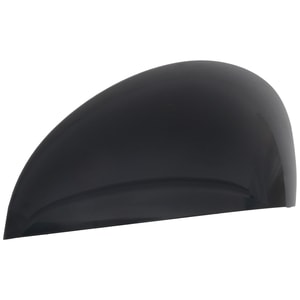

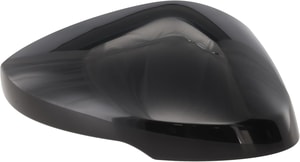

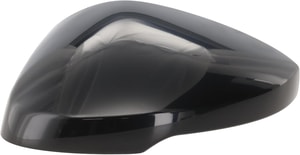

2. Housing & cap - ABS shell that can be painted or left in black "wing mirror" texture. DIY color-match is popular in Civic forums. (CivicXI)
3. Actuator motor - angles glass up/down/left/right; some trims add memory recall, so swap motors only with the same pin count. (HowStuffWorks)
4. Heater pad - a thin resistance mat bonded to the back clears fog in about two minutes. (Popular Mechanics)

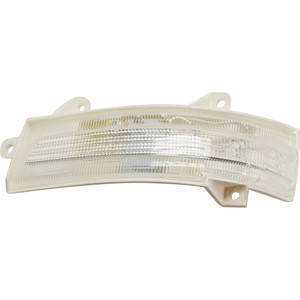

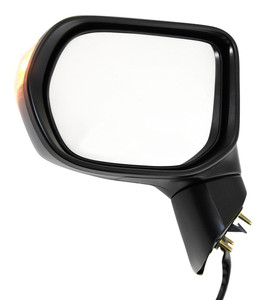

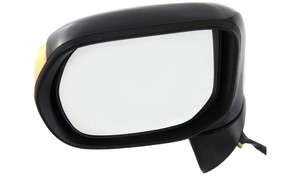

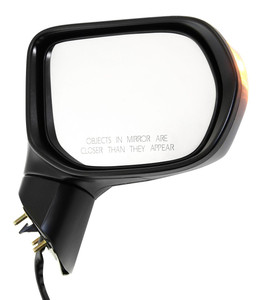

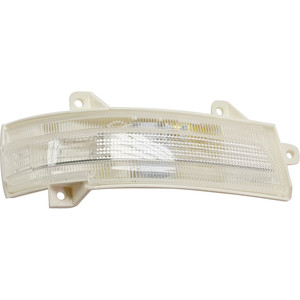

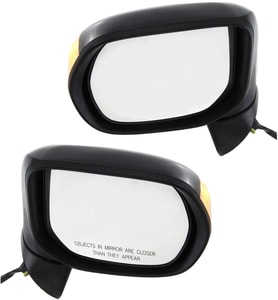

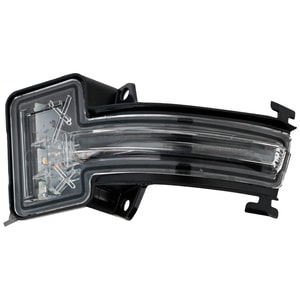

5. Turn-signal repeater - high-mount LED makes lane changes easier for others to see.
6. BSI radar light - amber icon flashes when radar behind the bumper senses a car in your blind spot. (techinfo.honda.com)
7. Camera (LaneWatch) - 80° lens under the passenger mirror sends video to the center screen when you signal right. (techinfo.honda.com)

Fit & Models

← scroll table horizontally →

Always count pins before ordering a replacement to avoid rewiring. (CivicXI)

Installation Guide

1. Disconnect the battery to prevent shorting the door harness.
2. Pop the sail-panel trim; a plastic pry tool protects paint. (YouTube)

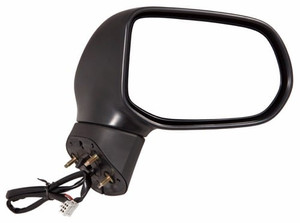

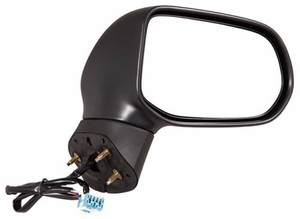

3. Unplug the connector and remove the three 10 mm nuts (5-7 ft-lb torque). (YouTube)
4. Lift the old mirror straight out; reverse steps to install the new unit.
5. Test movement, heat, and signals before snapping the trim back.

Tip: If you retrofit a power-fold kit, follow the supplied wiring to tap the door-lock circuit so the mirrors tuck in when you lock the car. (CivicXI)

Care Tips

• Keep glass clean: A mild glass cleaner preserves the hydrophobic coating.
• Fold manually in snow: Even power units can stall if ice jams the hinge.
• Touch-up caps: Small scratches are easy to sand, prime, and respray with matching code NH-883P white; see the CivicXI DIY thread for results. (CivicXI)
• Refit loose glass: Replacement stick-on pads are inexpensive and restore clarity.

Safety Rules

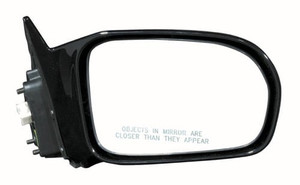

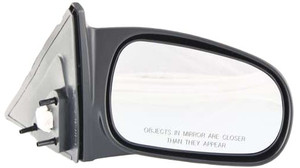

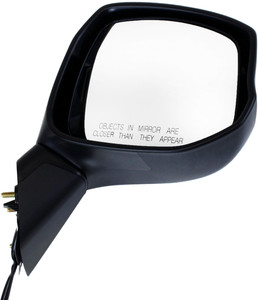

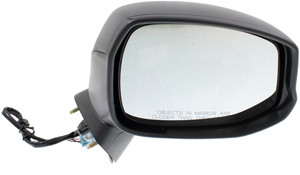

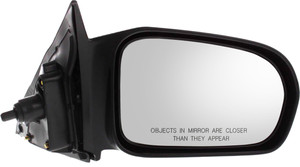

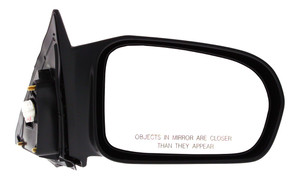

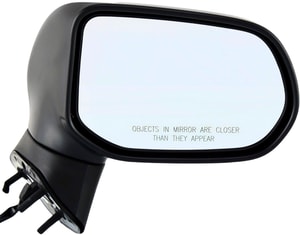

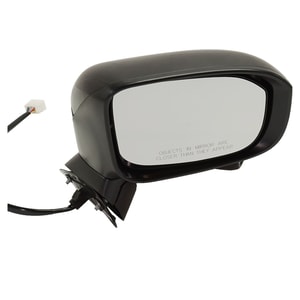

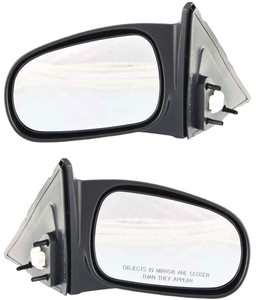

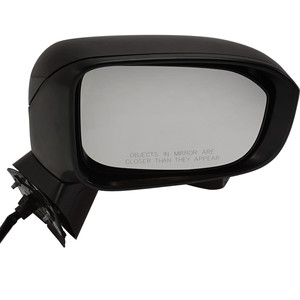

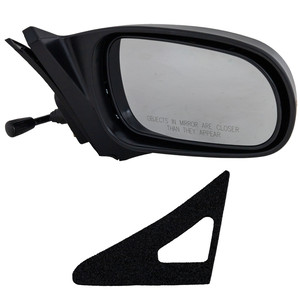

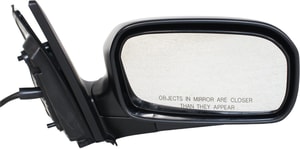

• Convex passenger mirrors must carry the etched warning because objects look 2× smaller and seem farther away. (Wikipedia)
• FMVSS 111 bans convex glass on the driver side; it must be flat to give 1:1 size. (NHTSA)
• State laws vary: some off-road states let you drive door-less if you fit at least one mirror giving 200 ft rear view. Always check local code. (Florida Highway Safety)

Costs

A full painted, powered, heated Civic mirror averages $810-$837 installed, with parts the bulk of the bill; DIY owners who buy an unpainted housing and swap the cap can cut the cost in half. (RepairPal.com) Labor is usually under one hour.

Upgrades & Mods

• Blind-spot mirrors: Stick-on convex "peep mirrors" remove the last shoulder-check zone. (HowStuffWorks)
• Power-fold retrofits: Plug-and-play kits for 2022+ Civics add a folding motor and relay so mirrors tuck with the key fob. (CivicXI)
• Painted caps: Body-color caps modernize LX/Sport trims without buying a full assembly. (CivicXI)
• Heated glass swap: If your car is pre-wired, you can snap in heated glass and add the defrost switch. (Popular Mechanics)

Frequently Asked Questions

Q: How can I tell if my mirror is heated?
A: Look for a tiny "defrost" symbol on the glass or check for two extra pins in the plug.

Q: What does LaneWatch show?
A: It streams a real-time view of the right blind spot to the center screen when you signal right. (techinfo.honda.com)

Q: Why is the passenger mirror curved?
A: The convex shape widens your view but shrinks images, so the warning reminds you that cars are nearer than they look. (Wikipedia)

Q: Is the right-side mirror legally required?
A: Federal law needs only a left outside mirror; most states add a right mirror if the rear window is blocked. (Federal Register, Florida Highway Safety)

Q: Can I fold the mirrors by hand?
A: Yes-both manual and power versions have a break-away hinge to avoid damage in parking lots. (8th Civic)

Q: What size socket removes a Civic mirror?
A: A 10 mm socket fits the three retaining nuts. (YouTube)

Q: Do I need to recalibrate sensors after replacement?
A: Only if your mirror contains a LaneWatch camera or BSI radar; the dealer can aim them with scan-tool menus. (techinfo.honda.com)

Q: How fast does the heater clear ice?
A: About two minutes in freezing weather, based on Popular Mechanics testing of resistance grids. (Popular Mechanics)

Q: Will a 2024 mirror fit a 2018 Civic?
A: No-the 2022 redesign added extra wires for BSI, so plugs differ. Match year range and pin count. (techinfo.honda.com, CivicXI)

Q: What torque do the mounting nuts need?
A: Tighten each 10 mm nut to 5-7 ft-lb to avoid cracking the mount. (YouTube)
