Buy INFINITI I30 Engine Splash Shield

Summary

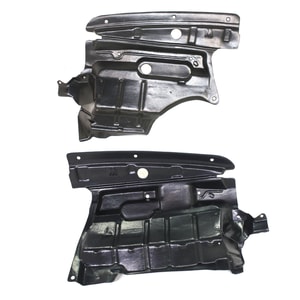

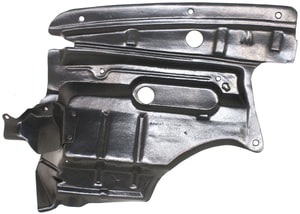

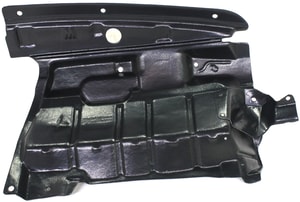

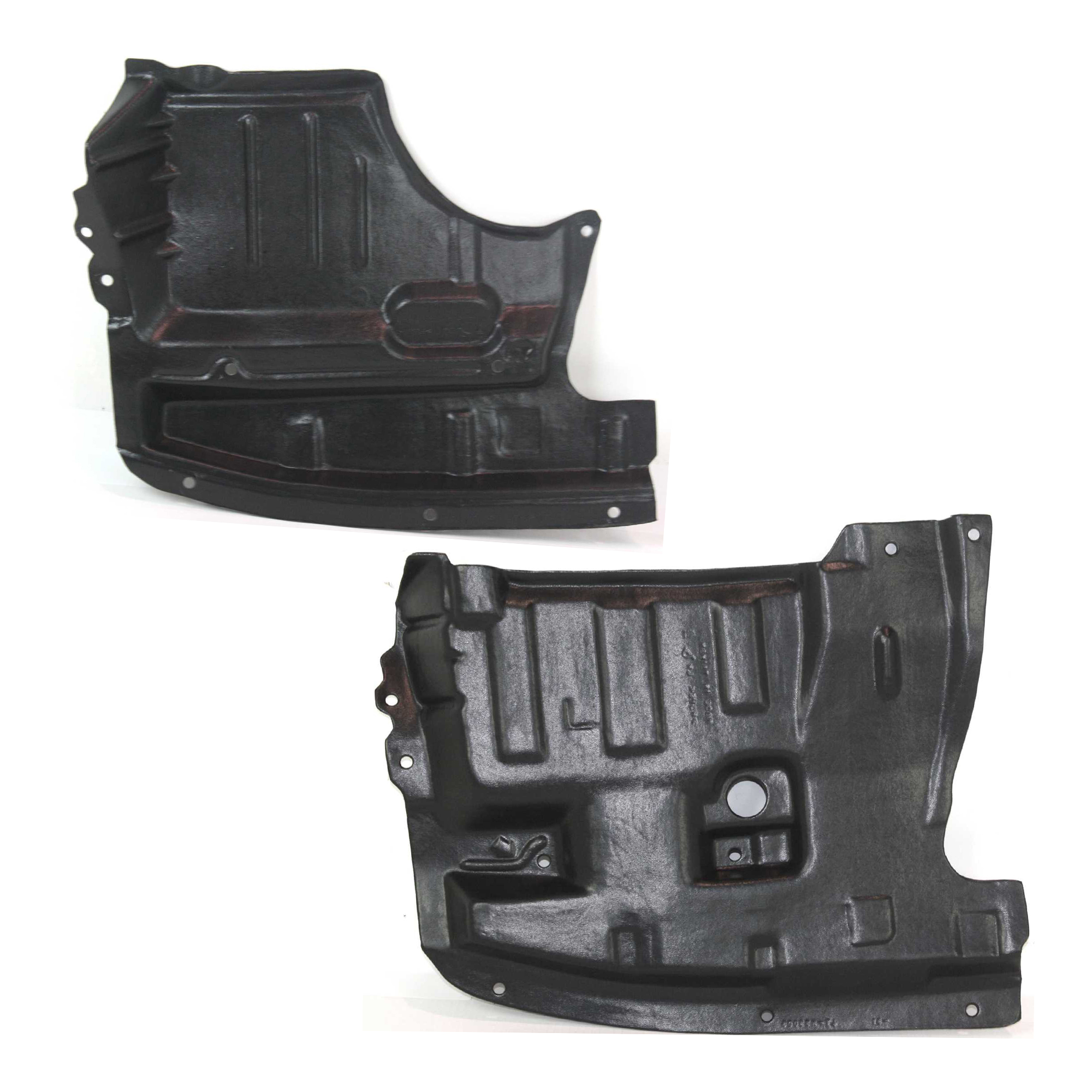

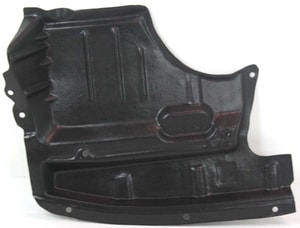

The engine splash shield on an INFINITI I30-also called an under-engine cover, skid plate, belly pan, or splash guard-forms a tough floor under the motor. It blocks water, gravel, and road junk, helps smooth air flow for better gas mileage, reduces noise, and can even slow down rust. Studies show that flat under-body panels can trim aerodynamic drag by 4-7 percent and raise fuel economy a little at highway speed (Extrica). Because this part lives where the hits keep coming, it is made from molded plastic or light metal reinforced with ribs for strength (ScienceDirect). When broken or missing, the engine, oil pan, alternator, belts, and wiring are left wide open to splash damage, and fuel mileage can slip.

Overview

The I30's shield bolts to the lower radiator support and front sub-frame, stretching from bumper to the middle cross-member (www.slideshare.net). Factory dimensions match the sedan's 70-inch width and 5.5-inch ground clearance so the panel does not scrape during normal driving. A maze of louvers lets cooling air escape while still deflecting splash.

Purpose & Benefits

• Debris Defense - Tests show a rigid guard keeps rocks that can crack an aluminum oil pan from bouncing up at 60 mph.
• Water Blocking - During a deep-puddle splash, the tray stops a wave of water that could stall ignition coils or short sensors.
• Aerodynamics - A flat underside cuts turbulence; wind-tunnel data links under-body panels to 0.01-0.02 Cd gains (Extrica, MDPI).
• Noise Damping - Owners note lower engine roar after installing new insulation-lined shields (Reddit).

Materials

• Thermo-Plastic Olefin (TPO) - Light, cheap, and easy to clip in place; most stock I30 panels use this blend.
• Recycled HDPE Mixes - Several automakers now mold splash guards from 75 % recycled battery cases and bottles, trimming landfill waste.
• Stamped Aluminum - Offered by off-road suppliers; handles curb strikes better but weighs more (ScienceDirect).

Fitment Details

The shield fits 1996-2001 I30 (A32/A33 chassis). Mount points:

1. Four 10-mm bolts at radiator cross-member
2. Two 12-mm bolts at sub-frame ears
3. Five push-pin clips along the bumper lip (www.slideshare.net).
   Using other Nissan Maxima panels will not line up because the I30 bumper reinforcement sits lower.

Signs of Damage

• Scraping noise on speed bumps
• Oil stains near front wheels
• Hanging plastic flapping in wind
• Overheating when driving in heavy rain (water hits belts).

Replacement & Cost

DIY owners on car forums report new plastic shields cost $20-$120 and fresh clips run $8-$20 (Reddit). Labor at a neighborhood shop averages one billable hour, so total installed price usually stays below $200.

Installation Steps

1. Park on level ground and let the V6 cool.
2. Raise the nose on jack stands.
3. Remove push-pins with a trim tool, then unbolt shield.
4. Clean mating flanges to ensure a flat seal.
5. Slide new panel up, hand-start bolts, then torque to 7 ft-lb.
6. Replace any missing splash-side shields to stop cross-wind rattle.

Aerodynamics & MPG

A CFD study shows under-body vortexes eat up to 23 % of a sedan's drag; adding a sealed belly panel dropped Cd by 0.015 and lifted highway mpg by about 0.2 (Extrica). Hyper-milers on Ecomodder recorded 1-2 mpg gains after smoothing center panels (EcoModder).

Safety & Regulations

The U.S. highway agency logs thousands of crashes every year tied to road debris striking sensitive parts; proper shields reduce that risk. Always tighten fasteners to spec so the part does not detach and create new debris.

Environmental & Recycling

Car makers now mandate post-consumer plastic in hidden parts such as splash shields, fender liners, and wheel-arch spats to cut petroleum use. Recycled content can be 50 % or higher without hurting durability.

Maintenance Tips

• Inspect at every oil change.
• Replace missing clips right away; loose edges act like scoops.
• Rinse winter salt from panel to stop corrosion of brackets.
• If you drive gravel roads often, consider switching to a metal skid plate for tougher protection (Reddit).

Related Components

While under the car, also check:

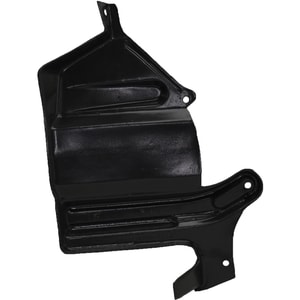

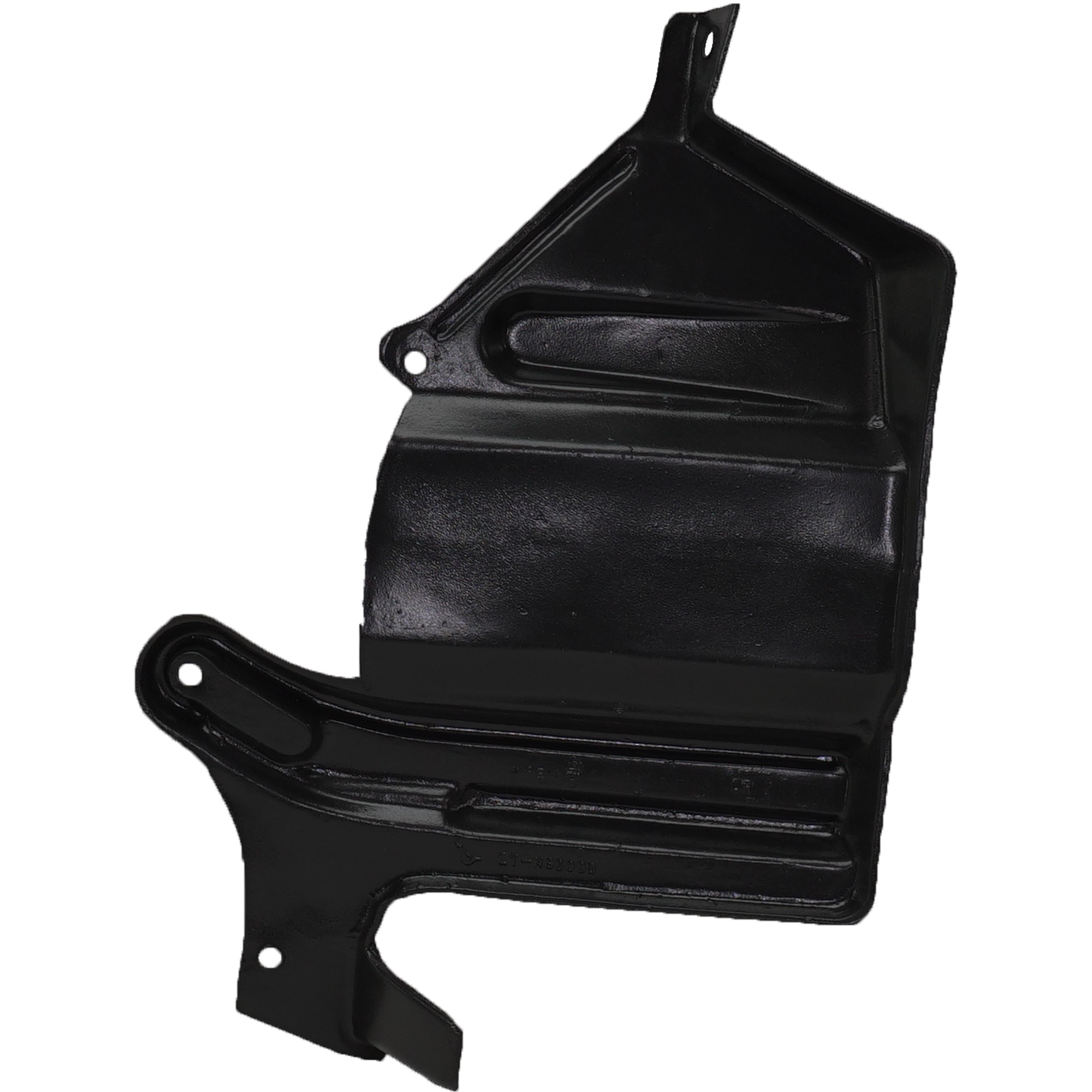

• Front splash side shields that seal wheel wells to the main tray.
• Engine under-tray insulation that keeps heat off the hood.
• Lower radiator air dam which works hand-in-hand with the belly pan to channel air.

Troubleshooting

← scroll table horizontally →

Frequently Asked Questions

Q: What does an engine splash shield do?
A: It guards the engine, belts, and sensors from water, dirt, and stones while also smoothing airflow under the car.

Q: Is it safe to drive without one?
A: You can roll for a short time, but risk damage if you hit puddles or debris. Fuel economy can drop a bit, too (MDPI).

Q: Plastic or metal-what's better?
A: Plastic is lighter and cheaper; metal is stronger for rough roads. Pick based on how and where you drive (ScienceDirect).

Q: How often should I inspect it?
A: Check every 5,000 miles or at each oil change for cracks or missing fasteners.

Q: Will a new shield boost gas mileage?
A: A smooth under-body can add about 0.2 mpg on highways, so gains are small but real.

Q: Can a loose shield cause noise?
A: Yes. A dangling corner flaps and hums. Replacing broken clips stops the sound (Reddit).

Q: Does the I30 share this part with the Nissan Maxima?
A: No. Mounting holes differ, so the Maxima panel will not align with the I30 bumper support (www.slideshare.net).

Q: Are recycled splash shields as strong?
A: Tests by major automakers show recycled-plastic guards meet the same impact standards as virgin material.

Q: What tools do I need for DIY replacement?
A: Jack, jack stands, 10-12 mm sockets, trim-clip pliers, and new nylon push-pins.

Q: Will removing the shield cool the engine better?
A: No. Engineers build airflow paths around the shield. Pulling it can upset cooling and actually raise under-hood temps (Reddit).
