In a nutshell, the Jeep Patriot relies on bright, amber-colored turn-signal bulbs (commonly 3157 or 3757A) at the nose and either amber or red bulbs in back. Federal lighting rules say those "blinkers" must flash at 1-2 hertz and stay amber up front for maximum visibility. Typical Patriot troubles include burned-out filaments, "hyper-flash" after LED upgrades, moisture sneaking into the lamp housing, corroded ground wires, and an aging Totally Integrated Power Module (TIPM) that can cut power to one or both indicators. Replacing a bulb takes only basic hand tools but often means popping a few wheel-liner clips or nudging the bumper out a bit. Upgrading to quality LEDs paired with resistors-or re-programming the flasher-can slash current draw while boosting lifespan. Keeping every directional signal healthy is vital; without a working indicator, fellow drivers never know which way you'll turn, and that can lead to rear-end crashes.

Fitment Facts

Bulb sizes

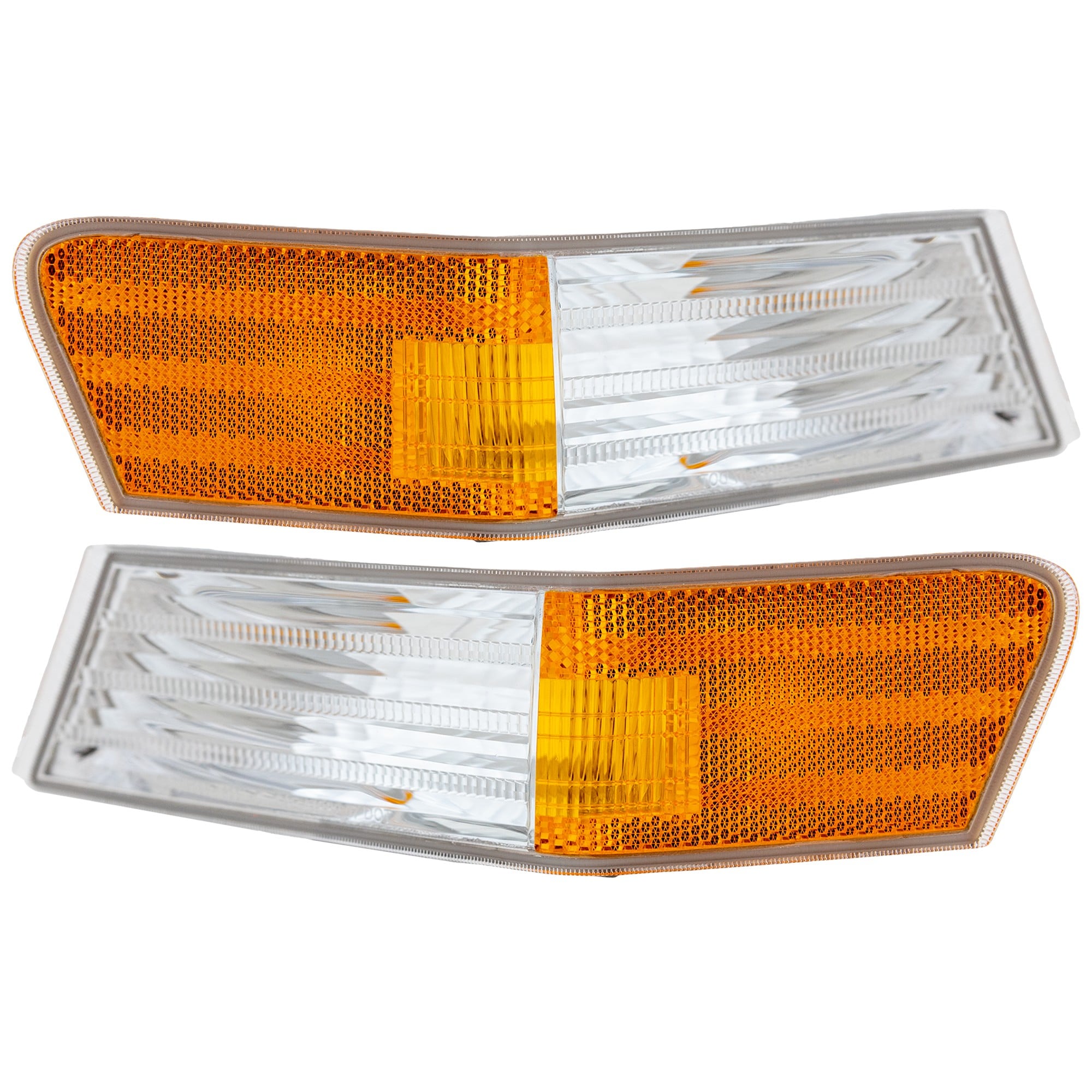

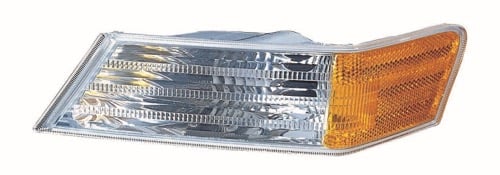

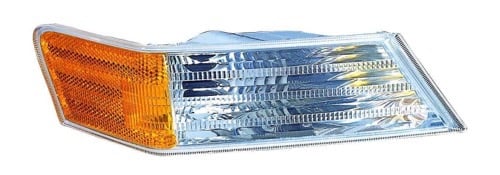

• Front corner lamps: 3157 or 3757A dual-filament amber bulbs (AUXITO)
• Rear lamp sockets: 3157 incandescent or compatible LED replacements (, Diode Dynamics)

Basic specs

A stock 3757A runs about 26-27 watts at 12 volts and produces ~245 lumens (BulBConnection.com). LED swaps can cut power use by up to 80 percent while raising output and life span.

Model years

All U.S.-market Patriots built 2007-2017 share the same front/rear signal assemblies, so bulb part numbers stay consistent across Sport, Latitude, Limited, High-Altitude, and 75th Anniversary trims.

Legal Basics

Federal Motor Vehicle Safety Standard 108 (FMVSS 108) requires amber turn signals at the front and either amber or red in back (NHTSA). The lamps must flash between 60-120 times per minute (NHTSA), and the in-dash arrow must glow green to show the driver the blinker is on (NHTSA).

Sticking to those color and flash-rate rules-plus aiming the lamps correctly-keeps your Patriot street-legal and easy to see.

Common Problems

Burned bulbs

Regular glass-filament bulbs last about 1,000 hours; heavy stop-and-go driving or frequent hazards can kill them early, leading to the classic "fast-flash" warning.

Hyper-flash after LED swaps

LEDs draw so little power the computer thinks a bulb is out, so the indicator blinks too fast. Adding a 6-ohm 50-watt resistor or a compatible LED flasher cures the problem (Jeep Patriot, Diode Dynamics).

Water intrusion

Some 2014-era housings let rainwater in, shorting bulbs and sockets (The Center for Auto Safety). Reseal the gasket or replace the housing before installing new lamps.

Weak grounds & wiring

Corroded ground lugs by the front frame rail or under‐hood battery tray often cause intermittent signals (Jeep Patriot, Reddit). Cleaning the lug and crimping fresh eyelets fixes most flickers.

TIPM failures

A failing TIPM can drop power to one or more signal circuits (Circuit Board Medics, JustAnswer). Rebuilt boards or plug-n-play replacements restore proper blinking without dealer re-programming.

DIY Replacement

1. Turn the wheel inboard for easier access.
2. Remove three plastic push-pins in the wheel-well liner and peel it back.
3. Twist the bulb socket counter-clockwise and pull it out (YouTube).
4. Swap in the new bulb-don't touch the glass with bare fingers.
5. Test hazard lights before re-installing the liner clips.

Rear bulbs come out by popping two Torx screws, tilting the lamp outward, and twisting the socket (YouTube).

Upgrade Options

• Switchback LEDs-white as a parking lamp, amber when blinking-add a modern look but still obey color laws (Jeep Patriot).
• Smoked housings can darken the lens; be sure they remain bright enough to meet FMVSS 108 candela requirements.
• Heavy-duty sockets rated for higher temps resist melting if you frequently tow with trailer lights.

Maintenance Tips

• Test all four "directional signals" monthly. A burnt rear blinker won't trigger a dash warning.
• Spray dielectric grease on the socket seals after every bulb change to keep moisture out.
• If you notice hyper-flash, check bulbs, resistors, and ground wires before blaming the stalk switch.
• Keep spare 3157-series bulbs or LED spares in the glove box for on-the-road fixes.

Safety Importance

The Insurance Institute for Highway Safety notes that clear, timely turn signals reduce rear-end crashes. Water-logged or dim "indicator lights" cut visibility by half -so fixing them quickly protects you and everyone else.

Frequently Asked Questions

Q: What bulb size fits the front blinker on a 2015 Patriot?
A: Use a 3157 or 3757A amber dual-filament bulb. Some owners upgrade to 3157-type LEDs for longer life (AUXITO).

Q: Can I use red bulbs in back?
A: Yes. FMVSS 108 lets rear turn signals be red or amber (NHTSA).

Q: Why does my dash arrow blink fast after installing LEDs?
A: The low draw tricks the system. Add a 6-ohm resistor or swap to an LED-friendly flasher module to restore the normal rate (Jeep Patriot).

Q: The new bulb keeps failing. Could water be the cause?
A: Likely. Some housings leak; moisture corrodes sockets and shorts bulbs (The Center for Auto Safety). Reseal or replace the lamp.

Q: Where is the blinker fuse?
A: The Patriot routes signal power through the TIPM, not a separate fuse and flasher. Check the TIPM and grounds if only one side is out (Circuit Board Medics).

Q: How fast should the indicator flash?
A: Between 60 and 120 flashes per minute-about once every half-second (NHTSA).

Q: Will LED switchbacks pass inspection?
A: Yes, if they show white as a running lamp and amber when signaling, stay within the legal flash rate, and are bright enough (NHTSA).

Q: Do I need special tools to change a front blinker?
A: A flat screwdriver or trim-clip tool and a T-30 Torx driver handle most jobs (YouTube).

Q: My indicator works but the outer lamp is dark-what gives?
A: Check the bulb ground wire near the passenger-side frame rail; corrosion is common there (Reddit).

Q: Can a bad turn signal drain the battery?
A: A stuck relay in the TIPM can keep lamps on and flatten the battery overnight. Repairing or replacing the TIPM fixes it (Circuit Board Medics).

Helpful Links

• NHTSA Lighting Regulations - color and flash-rate rules  (NHTSA)
• Center for Auto Safety complaint archive - water-intrusion reports  (The Center for Auto Safety)
• Jeep Patriot owner forum - real-world troubleshooting threads  (Jeep Patriot)
• DIY video walk-through - step-by-step bulb swap
• TIPM repair overview - common module faults  (Circuit Board Medics)

Keep your Jeep Patriot's blinkers bright and healthy, and every lane change will be safer and stress-free.
