Kia Rio mirror glass-also called side-view mirror glass, wing-mirror lens, or door-mirror plate-is a small part with a big job. It restores clear rear and side visibility, keeps the car legal under Federal Motor Vehicle Safety Standard (FMVSS) 111, and supports safety tech such as heating and blind-spot indicators. Replacement complexity, size and wiring change across Rio generations (2005-present), but the basic steps-tilt, unclip, swap, and test-remain simple with the right instructions.

Fitment Guide

• Model years & body styles - The Rio has used two common mirror-glass footprints since 2005: one for 2005-11 (JB) cars and another for 2012-17 (UB) and 2018-25 (YB/SC) cars; always match the build date before ordering. (eBay, AutoZone.com)

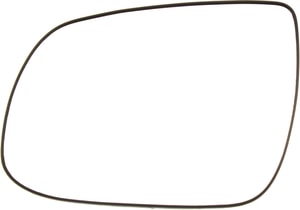

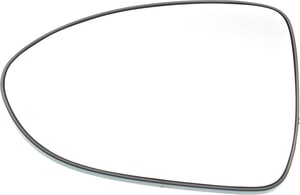

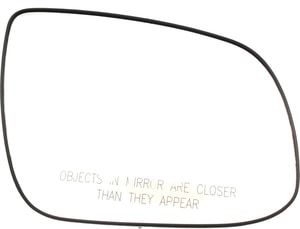

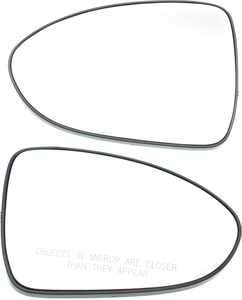

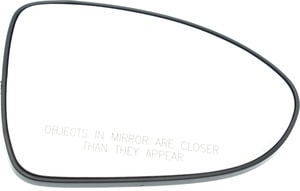

• Left vs. right curvature - Driver's glass is flat for true size, while passenger glass is convex and must carry the "Objects in Mirror Are Closer Than They Appear" legend in 4.8-6.4 mm lettering. (NHTSA, horiba-mira.com)
• Feature checks - Look behind broken shards for:
  • Two narrow spade terminals = heated element. (Reddit)
  • Orange/amber LED pod = blind-spot warning light on 2021-present EX/S trims.
  • Thick trapezoidal plug = auto-dimming electro-chromic layer (rare on Rio). (Kia Stuff)

Types & Features

← scroll table horizontally →

Why Prompt Replacement

• A cracked or missing mirror violates FMVSS 111 and many state laws, risking fines and inspection failure.
• Lane-change crash studies show inadequate mirror checks precede 50 % of merge collisions.
• Properly adjusted mirrors shrink side blind spots; Car and Driver's test cut lane-change head-turns by half. (Car and Driver)

Installation Steps

1. Position - Power-tilt the glass fully inward.
2. Protect - Tape the old lens to catch shards; wear gloves.
3. Release - Insert a plastic trim tool at the inner edge and pop the backing plate away from its four spring clips (video demo). (YouTube)
4. Unplug - Disconnect heater or indicator pigtails.
5. Transfer - Snap the new plate onto the motor boss; reconnect wires.
6. Test - Cycle mirror adjustment, heater, and blind-spot lamp; verify clear view and legend orientation. (Full walk-through). (YouTube)

Adjustment & Safety

• The National Highway Traffic Safety Administration advises unit-magnification on the driver side for depth accuracy. (YouTube)
• To set mirrors "wide-angle style," rotate outward until the horizon just leaves the inner edge of each glass-eliminating overlap with the cabin mirror and nearly erasing blind spots. (DriversEd.com, Dealer E Process)
• Blind-spot detection augments-but does not replace-mirror checks; IIHS data show systems cut lane-change crashes 14 %.

Legal & Standards

• FMVSS 111 requires one inside mirror plus a driver-side exterior mirror; a passenger mirror becomes mandatory if interior view is obstructed.
• Convex glass must carry the standard safety warning and meet specified curvature limits. (NHTSA, NHTSA)
• Many jurisdictions mandate heated mirrors only on vehicles over certain gross weights; on passenger cars it remains an optional convenience. (Refer to local regulations). (Federal Register)

Maintenance & Care

• Clean with non-ammonia glass spray to protect hydrophobic coatings.
• Check heater function each winter by feeling for warmth within 60 seconds. (Reddit)
• Inspect clip tension annually; loose glass vibrates, degrading image quality.

Eco & Recycling

Broken automotive glass can be recycled as aggregate in asphalt or insulation; many municipal facilities accept mirror shards if metal backing plates are removed first.

Related Components

• Mirror housing - Protects the glass; cracked shells allow water to short the heater.
• Actuator motor - Moves the plate; weak motors cause slow or stuck adjustment.
• Mirror cap - Color-matched cover that clips over the housing; easy cosmetic swap during glass repair.

Frequently Asked Questions

Q: How can I tell if my Kia Rio mirror glass is heated?
A: Look for two small metal terminals or attached wires on the rear of the plate; turn on the rear-window defroster and feel for warmth after about one minute.

Q: Does the passenger-side glass have to say "Objects in Mirror Are Closer Than They Appear"?
A: Yes. FMVSS 111 mandates that exact legend on convex passenger mirrors for passenger cars. (NHTSA)

Q: Can I upgrade a non-heated mirror to heated?
A: If the door harness already includes heater leads (common on 2012-present Rios), you can swap in heated glass and connect the terminals; otherwise you'd need custom wiring and a switch. (Reddit)

Q: Will blind-spot indicator glass work on trims that never had the system?
A: No. The LEDs require the vehicle's radar control unit; without that module they will not illuminate.

Q: My new glass is loose after install-what went wrong?
A: The spring clips may be bent or mis-seated; remove, inspect the four tabs, and press firmly until you hear all four clicks. (YouTube)

Q: What's the best way to adjust mirrors to remove blind spots?
A: Set the glass so that a passing car transitions smoothly from the interior mirror to the edge of the side mirror, with no overlap; practice in an empty parking lot. (Car and Driver)

Q: Is driving with a cracked mirror legal?
A: Laws vary, but most states ticket for obstructed view or broken safety equipment because it violates FMVSS 111 compliance.

Q: Do aftermarket blue-tint "anti-glare" lenses reduce night glare?
A: Studies show colored coatings cut headlight glare by up to 20 %, but may also dim true-color perception; choose reputable, standards-tested products.

Q: How often should I replace mirror glass?
A: Only when cracked, delaminated (black spots), or if heating/indicator functions fail; high-quality glass can last the life of the vehicle.

Q: Can I recycle broken mirror glass?
A: Yes-wrap shards securely, remove the plastic backing, and take them to a municipal glass-recycling program or construction aggregate drop-off.

For deeper technical standards, consult the full FMVSS 111 laboratory procedure from NHTSA. (YouTube)
