Quick Summary

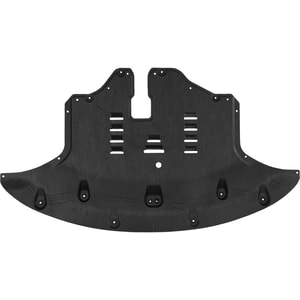

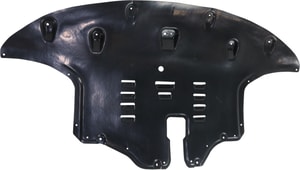

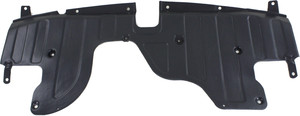

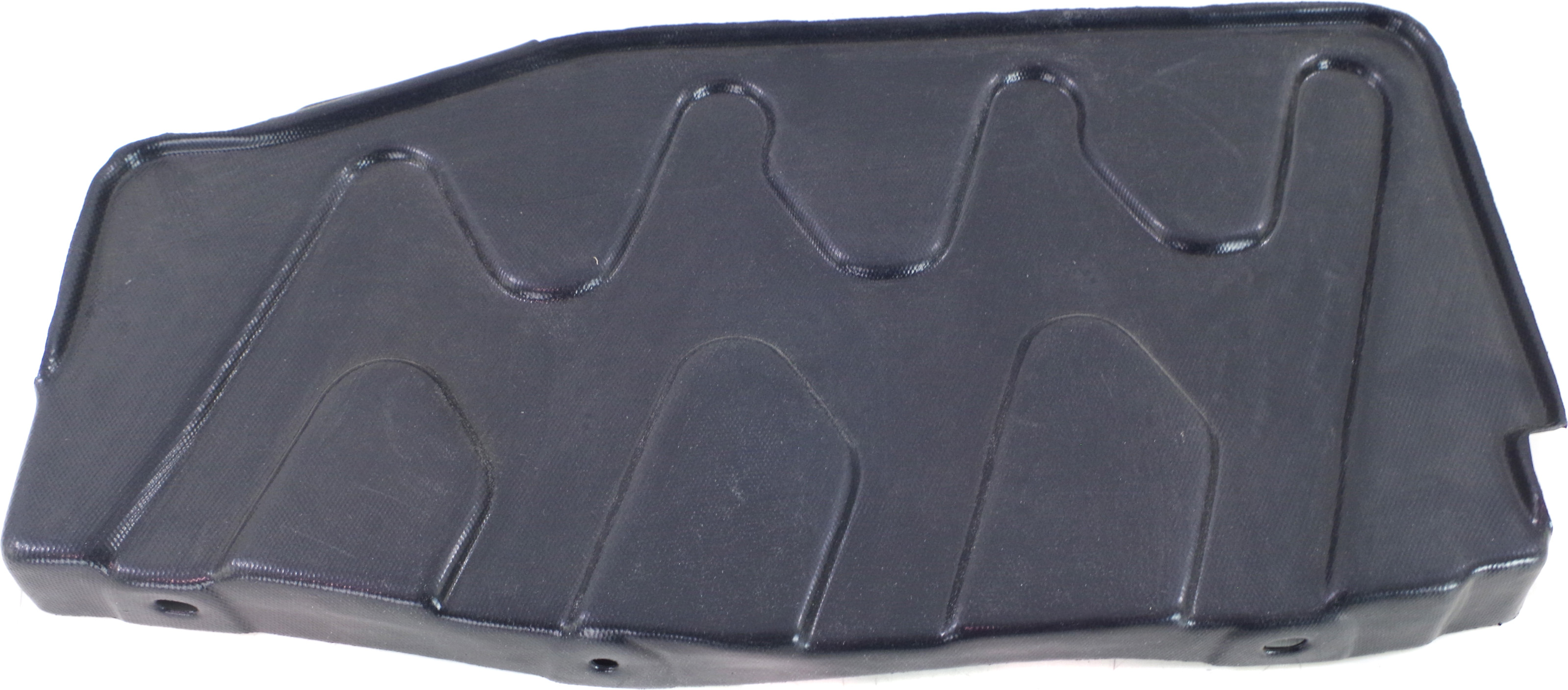

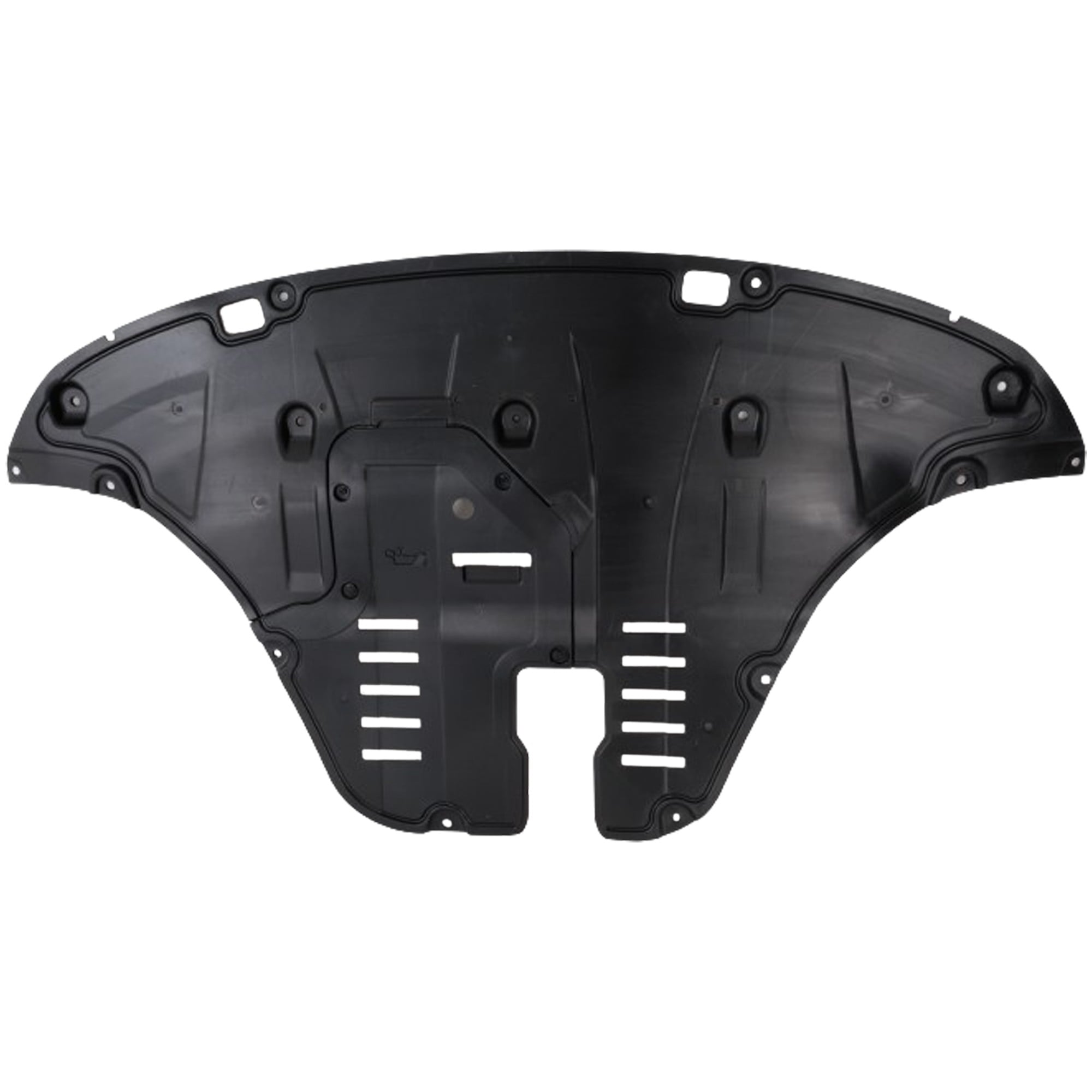

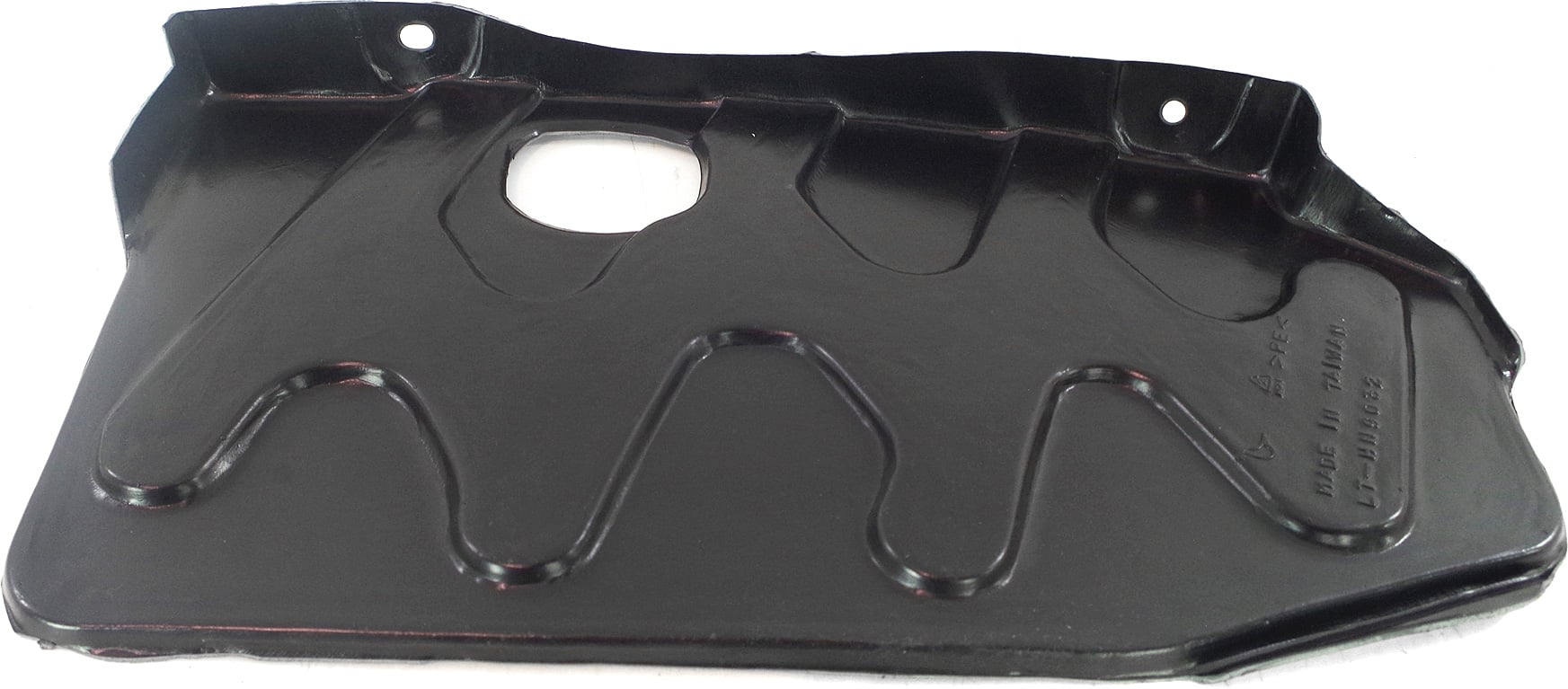

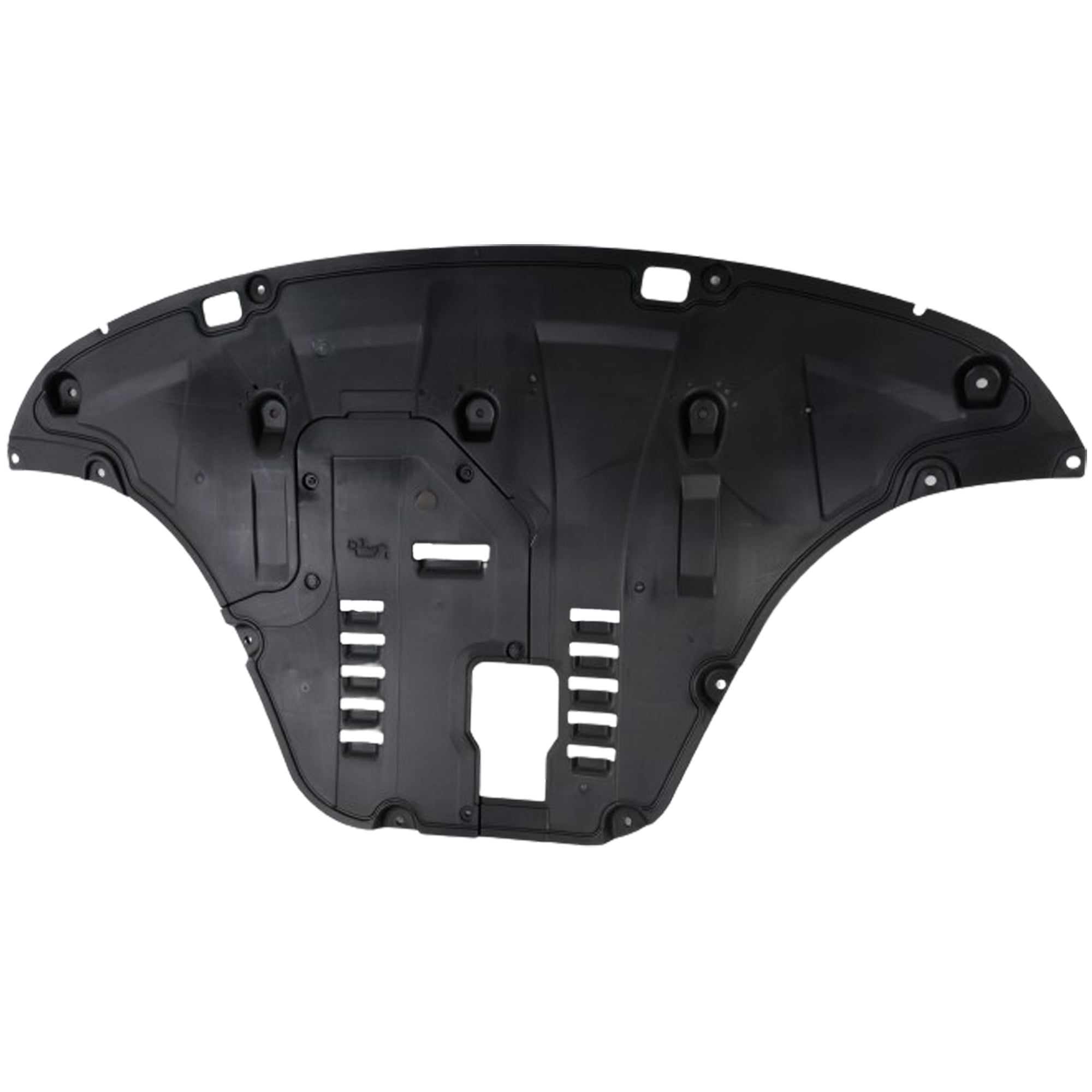

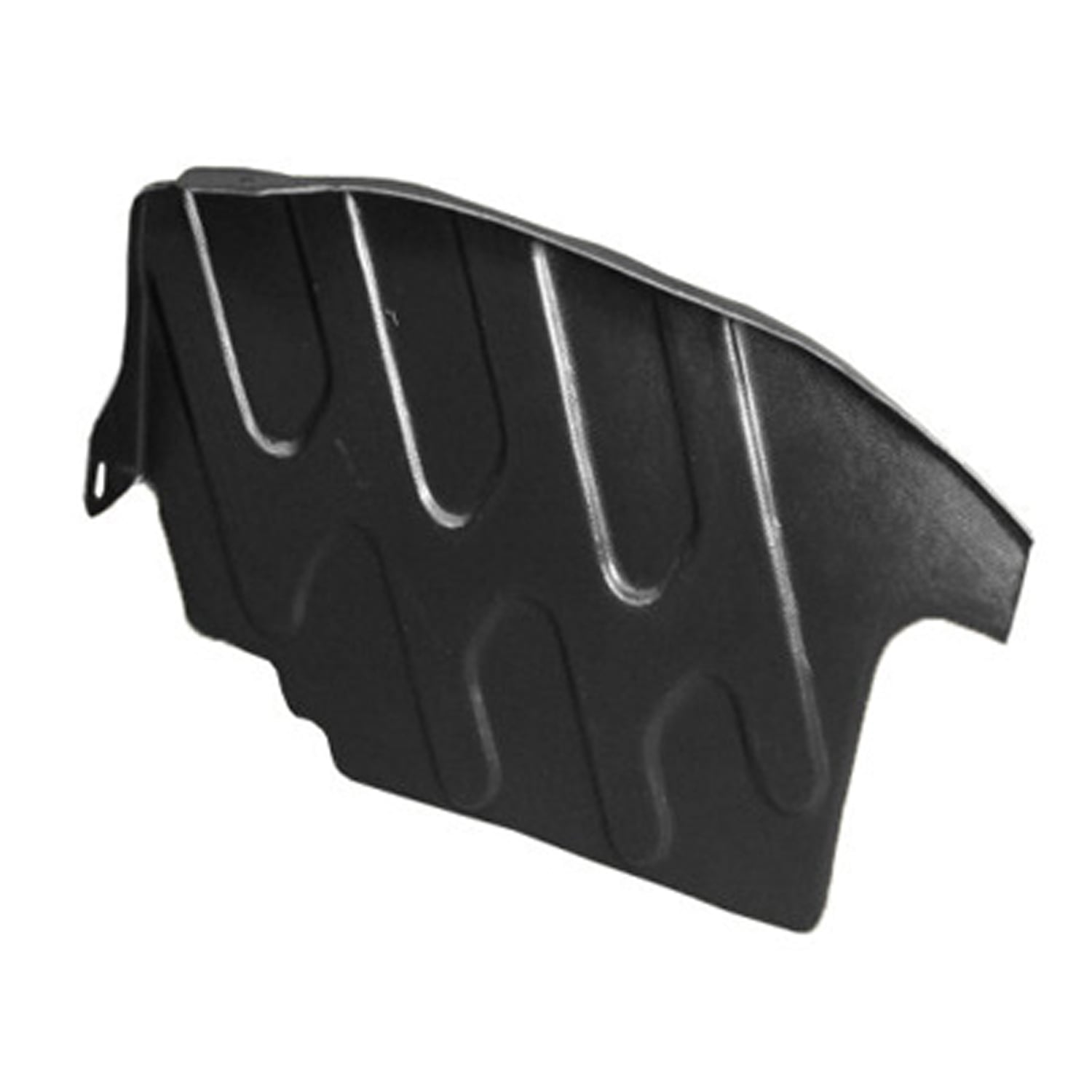

The engine splash shield-also called an engine guard, belly pan, under-cover, or skid plate-sits under a Kia Sorento's motor and transmission. It blocks water, rocks, road salt, and mud, helps smooth airflow for better fuel use, can lower engine noise, and may even direct cooling air to vital parts. A cracked or missing shield leaves hoses, belts, and the oil pan wide open to damage, so keeping it intact is cheap insurance for long vehicle life. (Car and Driver, KS Manual, Reddit, Kia Forums, NHTSA)

What It Does

The shield forms a flat wall under the engine compartment, deflecting stones that could pierce the oil pan or radiator. (Car and Driver, Reddit)
It also keeps rainwater from splashing electrical plugs and sensors. (KS Manual, NHTSA)
By forcing air to flow smoothly under the SUV, it helps reduce drag and cabin noise. (Car and Driver)

Why It Matters

Driving without the panel lets filth coat the serpentine belt, shortening belt life. (NHTSA)
Open access to the timing cover can speed rust on pulleys and bolts. (NHTSA)
On rough trails, a shield can even act like a mini-skid plate, taking the hit instead of the aluminum oil pan. (Reddit)

Materials

Most Sorento shields are molded from polypropylene plastic, a tough, light polymer that resists water and road salt. (ScienceDirect)

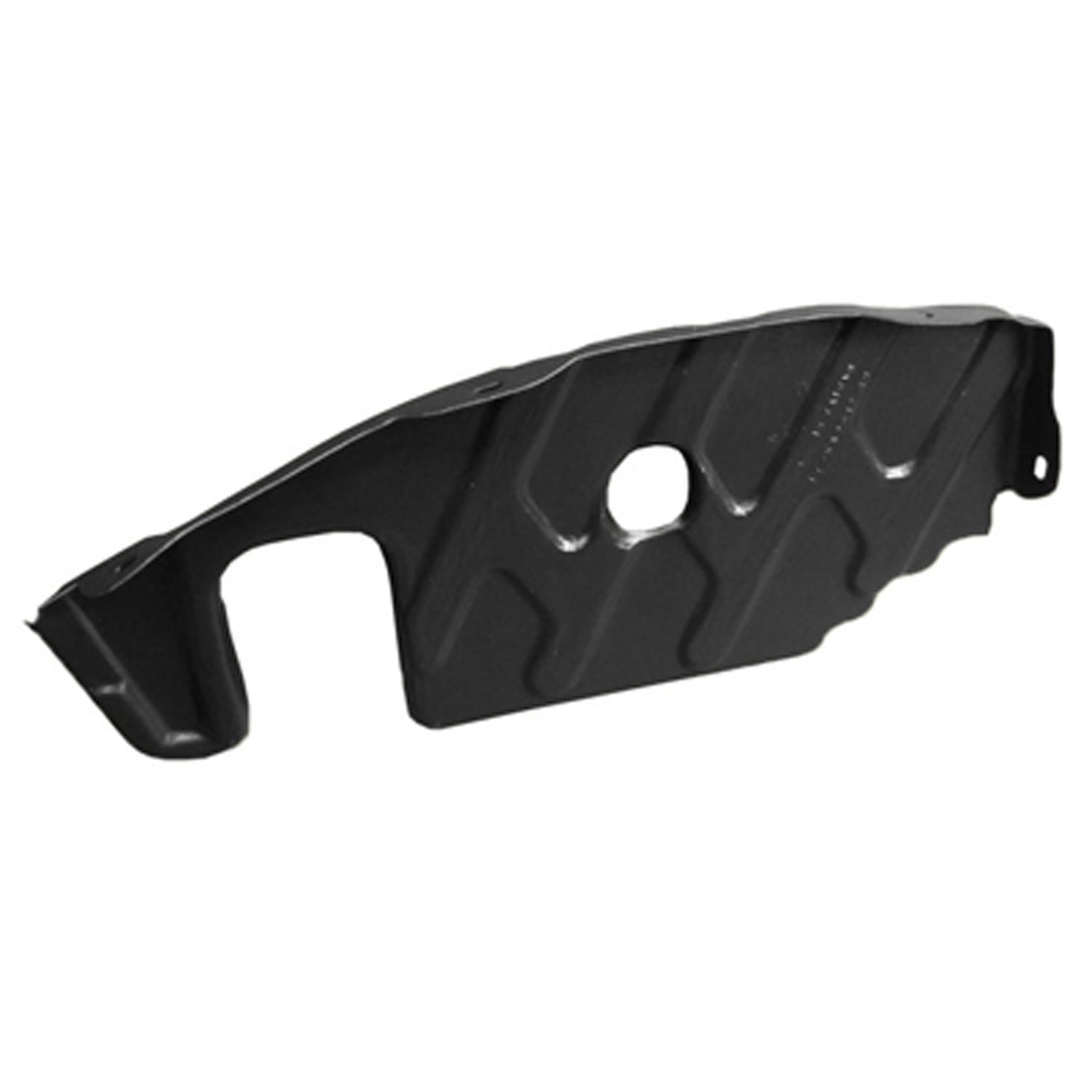

Higher-trim or off-road kits may upgrade to steel or aluminum for extra impact strength. (Reddit)
Because polypropylene can be recycled, broken panels should go to plastic recycling instead of landfills. (US EPA, US EPA)

Fit Years

Kia keeps the basic under-cover layout similar on Sorento models built from 2014 to 2025, but clip style, bolt length, and oil-door shape vary by engine and trim. (KS Manual, Kia Forums)
Always match the shield to the exact model-year and engine size before ordering. (KS Manual)

Signs of Damage

• Dragging sound or plastic scraping the road. (Reddit)
• Oil spots on the shield's top side (crack lets oil spray backward). (NHTSA)
• Missing push-clips or M6 bolts around the edges. (Kia Forums)
• Engine bay looks muddy after rain or snow. (Car and Driver)

DIY Replacement

1. Raise SUV with ramps or a jack and secure with stands on solid ground. (KS Manual)
2. Remove 10 mm plastic clips and M6 flange bolts (most Sorentos use 12 mm-long bolts). (Kia Forums)
3. Drop old shield straight down; note any cooling-duct flaps. (KS Manual)
4. Slide new panel in place and hand-start every bolt.
5. Torque bolts to 7 - 8 lb-ft (10 - 11 N·m) as listed in Kia service data. (, NHTSA)
6. Verify no contact with exhaust pipes before lowering vehicle. (KS Manual)

For visual help, see the illustrated Kia Service Manual guide.

Care Tips

• Hose off winter salt each spring to keep clips from rusting. (US EPA)
• Replace broken push-clips at once; loose edges flap and tear. (Kia Forums)
• Inspect after any curb or gravel hit. A bent metal skid plate can hold mud against the oil pan. (Reddit)

Environmental Info

Scrap shields should go to auto-plastic recyclers or a metal yard if steel. (US EPA, US EPA)
Proper disposal prevents micro-plastic flakes from washing into storm drains. (US EPA)
Re-using sound shields keeps large polypropylene pieces out of landfills and supports a "zero waste" shop goal. (US EPA)

Related Parts

• Wheel-well splash guards keep water off the brake rotors. (NHTSA)
• Lower radiator deflector works with the engine shield to direct airflow. (Car and Driver)
• Front fender liners attach to the shield edges; inspect them together. (KS Manual)

Frequently Asked Questions

Q: What happens if I drive without the shield?
A: Water and rocks can strike the oil pan, belts, and sensors, raising the risk of sudden leaks or expensive electrical faults. (Car and Driver, NHTSA)

Q: Is the panel only plastic?
A: Most Sorento shields are polypropylene, but some trims offer stamped-steel or aluminum plates for rough roads. (ScienceDirect, Reddit)

Q: Does it help gas mileage?
A: Yes. A smooth underside lowers drag and can save a small amount of fuel at highway speed. (Car and Driver)

Q: How long do plastic clips last?
A: Clips often last 3-5 years; replace them if they crack or lose tension. (Kia Forums)

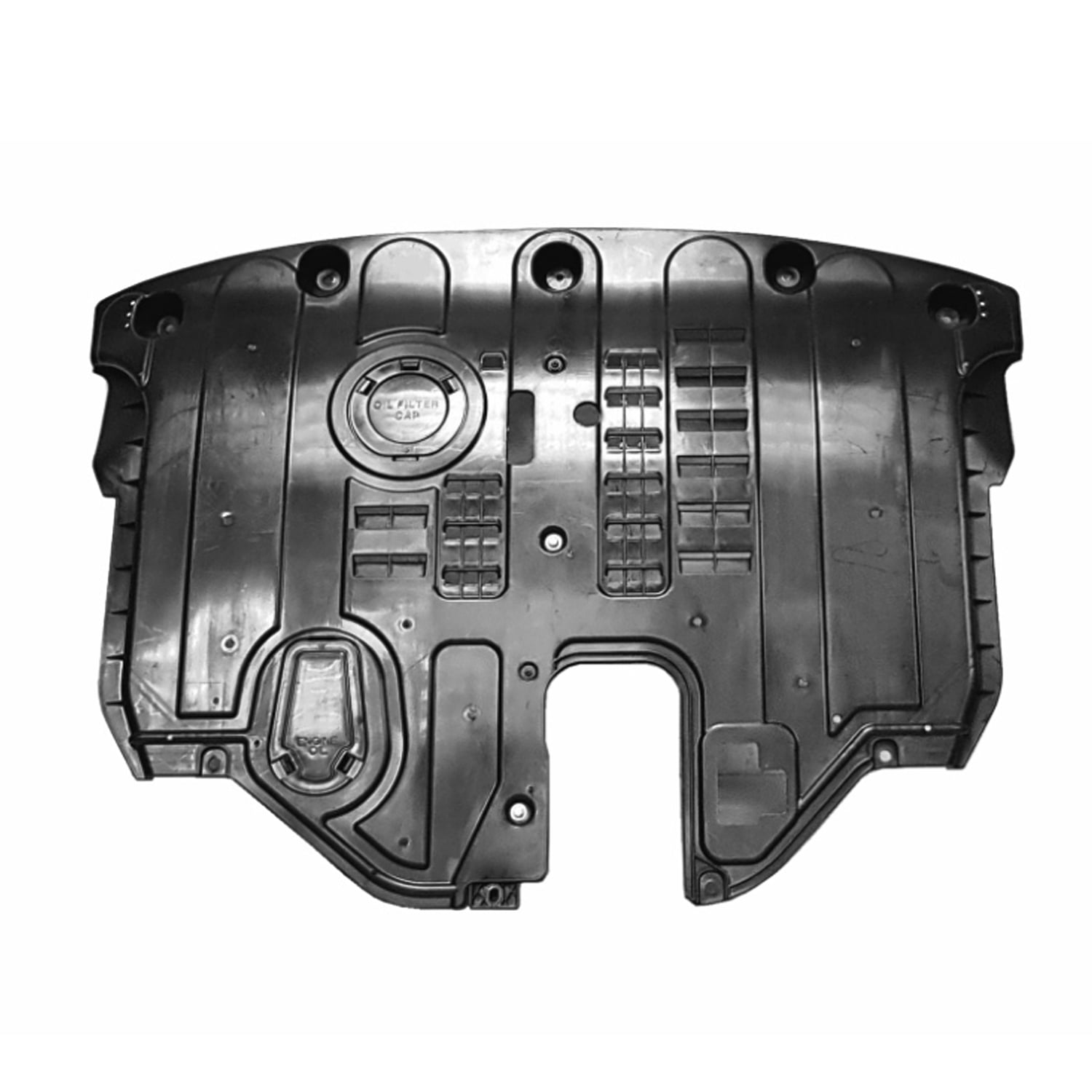

Q: Can I cut my own oil-change door?
A: Avoid cutting; it weakens the shield. Buy a panel that already has an access flap or remove the whole piece during oil service. (KS Manual)

Q: Are there safety rules about shields?
A: While no specific U.S. law covers splash shields, the National Highway Traffic Safety Administration advises that front panels must not obstruct the driver's view if they come loose. (NHTSA)

Q: How tight should the bolts be?
A: Kia service data lists 7 - 8 lb-ft; over-tightening can strip the plastic tabs. (KS Manual, NHTSA)

Q: Is disposal regulated?
A: Panels are non-hazardous, but workshops should recycle them under EPA vehicle-recycling best practices. (US EPA)

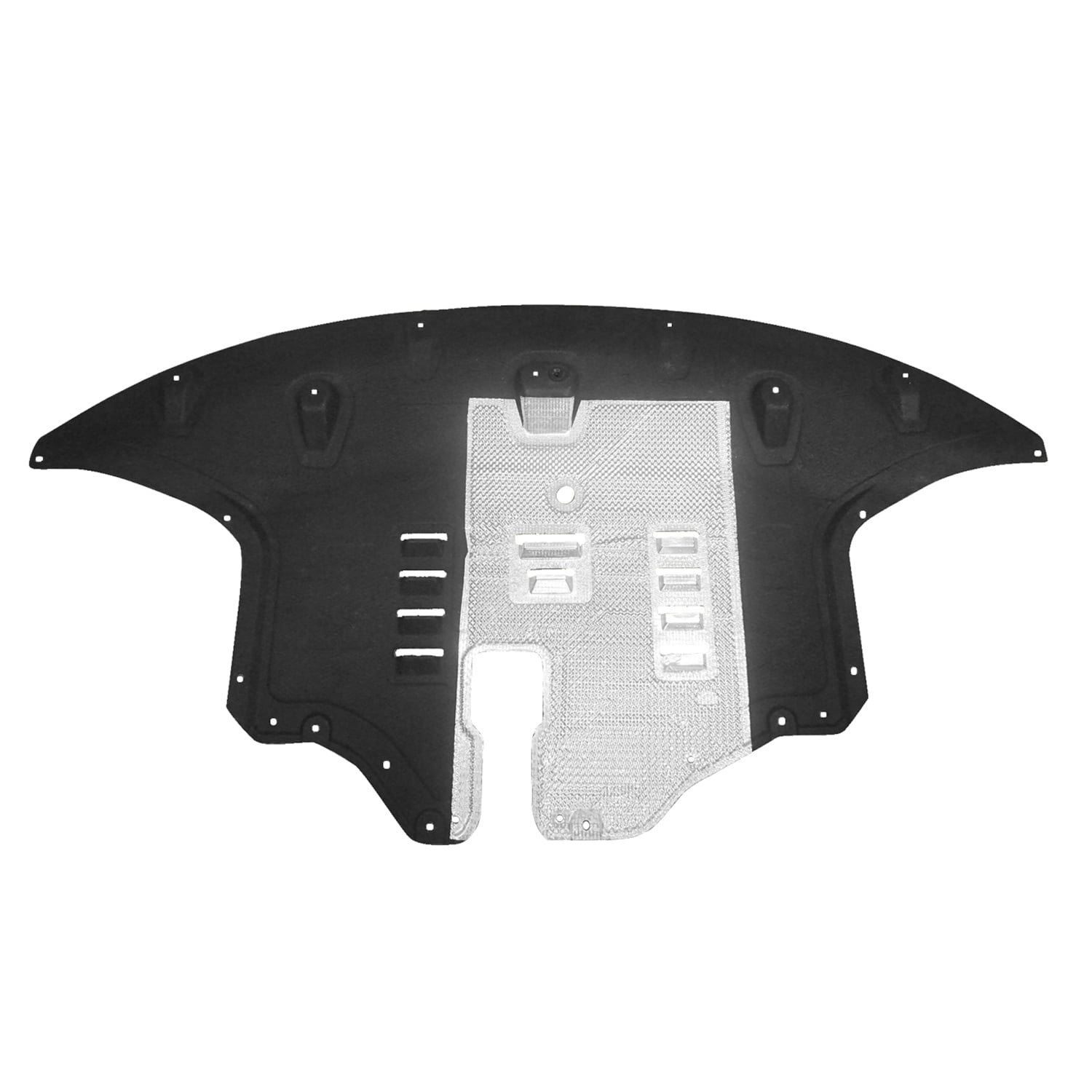

Q: Why does mine have felt on it?
A: Some shields include felt layers for noise damping and to absorb small leaks for later inspection. (Reddit)

Q: Do aftermarket skid plates fit the same holes?
A: Metal plates usually reuse factory mounting points, but check bolt length; steel is thicker. (Kia Forums)
