Buy Lexus LS460 Engine Splash Shield

Overview

An engine splash shield-also called a belly pan, skid plate, under-tray, lower engine cover, or splash guard-mounts beneath the Lexus LS460's engine. It stops water, rocks, and road salt from striking belts, wiring, and sensors (ASFIR 4x4). By smoothing airflow it also trims aerodynamic drag, lowers fuel use, and quiets the cabin (Knauf Industries Automotive) (Wikipedia). If the panel cracks or falls off, those parts get soaked, corrode faster, and may fail early (ASFIR 4x4). A typical LS460 replacement takes about one hour with basic hand tools (NHTSA). The notes below cover every 2007-2017 LS460 (both rear- and all-wheel-drive).

Fitment Range

• Model years covered: 2007-2012 (first facelift) and 2013-2017 (second facelift).
• Drivetrain: Fits both standard wheelbase (USF40) and long-wheelbase (USF41/45) trims.
• Ground clearance check: The shield hangs just ahead of the 5-inch (120 mm) stock ride height, so worn struts or lowering kits increase scrape risk (CarsGuide).

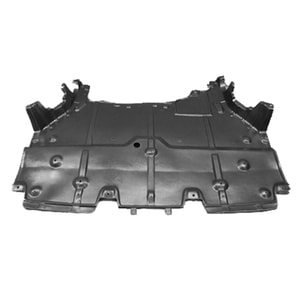

• Multiple pieces: Lexus divides the under-cover into front, center, and rear sections; the front "Engine Under Cover No. 1" is the part most often damaged.

Purpose & Benefits

• Debris defense - Keeps gravel and winter salt off aluminum oil pans, steering lines, O₂ sensors, and the serpentine belt (ASFIR 4x4).
• Water barrier - Stops splash from soaking coils and wiring connectors that can trigger misfires.
• Aerodynamic saver - A flat under-tray lowers pressure drag; studies show smooth underbodies can cut total vehicle drag by roughly 7 % (Wikipedia).
• Noise control - The plastic tray absorbs stone "ping" and muffles engine rumble, improving NVH by several dB (Knauf Industries Automotive) (past.isma-isaac.be).
• Thermal management - Encapsulation keeps oil warmer in winter, reducing cold-start emissions .
• Fuel economy - Less turbulence means the V8 sedan sips a little less gasoline on the highway (Knauf Industries Automotive).

Common Problems

• Curb impacts & speed-bump scrapes - Most cracks start where the shield meets the front bumper lip.
• Stripped bolts or missing clips - Metal M6 bolts strip out of soft plastic if over-tightened (Bimmerpost).
• Oil-change damage - Shops may bend or half-remove the panel, leaving it dangling after service (Reddit).
• Service bulletins - Lexus issued multiple TSBs reminding dealers to reinstall the shield correctly after drivetrain work on 2016 models (CarComplaints.com).
• Splash-related faults - NHTSA logs show wiring shorts caused by missing covers on several Lexus vehicles; owners can run a quick VIN check for open campaigns (NHTSA).

Materials & Design

The factory LS460 guard uses molded polypropylene (PP) reinforced with fiberglass ribs-light yet tough in cold weather (Knauf Industries Automotive). Aftermarket "upgrade" panels are often aluminum, which resists heat and off-road hits but adds weight and can transmit more noise. DIY racers sometimes build ABS plastic or coroplast panels, but hobby forums note that ABS is stiffer and survives engine heat better (Grassroots Motorsports). Market research points to a growing trend toward integrated multi-layer shields combining thermal foam for hybrids and EVs (WiseGuy Reports).

Installation Steps

Always wear eye protection and support the car with jack stands.

1. Raise and secure the front end.
2. Remove push-pin clips along the bumper edge with a trim tool.
3. Loosen the 10 mm bolts (usually eight). Toyota foot-well plates of similar size call for just 7-9 ft-lb (10-12 N·m) of torque (Bimmerpost); off-road skid plates use about 21 ft-lb (FJ Cruiser Forums).
4. Slide the shield forward to unhook rear tabs.
5. Inspect splash seals and replace any torn foam.
6. Fit the new cover, aligning tabs first, then hand-thread bolts.
7. Torque fasteners evenly and reinstall clips. Total time: 45-75 minutes for first-timers (NHTSA).

Maintenance Tips

• Check the panel at every oil change for cracks or missing hardware.
• Rinse off winter salt to slow plastic aging.
• If a corner drags, trim rough edges instead of driving with it loose-forums show loose panels can fold under tires (Reddit).
• Keep spare push-pins in the trunk; they cost pennies and prevent bolt holes from elongating.

Legal & Safety

Driving without a lower engine cover is legal, but owners risk debris-caused oil leaks that can lead to roadway slicks and liability claims. Lexus encourages owners to replace damaged shields to keep the car within original safety specs (Lexus). Always document repairs; some comprehensive warranties reimburse part of the cost if failure traces to a prior recall or service campaign (NHTSA).

Environmental Impact

A smooth underbody can reduce CO₂ output by lowering drag; research shows up to a 1-2 % fuel-burn drop on sedans (Wikipedia). Modern shields also cut exterior noise, a growing urban health concern (past.isma-isaac.be). Lightweight foamed-polymer designs further shrink plastic mass while improving recyclability (Knauf Industries Automotive).

Frequently Asked Questions

Q: What exactly does the engine splash shield protect?
A: It guards the oil pan, crank pulley, starter wires, transmission cooler lines, and steering rack boots from water and flying debris (ASFIR 4x4).

Q: Is it safe to drive without the shield?
A: Owners have driven short distances without it, but forums note greater risk of belt squeal, wiring corrosion, and stone damage to the aluminum oil pan (Reddit).

Q: How long does the factory plastic panel last?
A: In mild climates it often survives 8-10 years; salt or curb hits shorten life to as little as three years (Knauf Industries Automotive).

Q: Can I patch small cracks?
A: Yes-sand the area and bond with PP-compatible plastic-weld sticks, then reinforce using aluminum tape on the back.

Q: Do I remove the shield for oil changes?
A: Lexus placed an access door in later panels, but early 2007-2008 covers must come off; many technicians drop only the rear half to save time.

Q: What torque spec should I use on the bolts?
A: For the LS460's M6 bolts, aim for about 7-9 ft-lb; larger M8 skid-plate bolts can be tightened to 21 ft-lb (FJ Cruiser Forums) (Bimmerpost).

Q: Does the AWD (USF41) shield differ from RWD?
A: Front pieces are identical; center and rear covers have extra clearance for the prop-shaft on AWD trims.

Q: Will an aluminum guard void my warranty?
A: No, but damage traced to improper fitment can. Keep receipts and ensure it clears exhaust pipes.

Q: How much does the shield weigh?
A: The plastic panel weighs about 4 lb (1.8 kg); aluminum aftermarket versions tip the scale near 10 lb.

Q: Can a missing shield really affect fuel economy?
A: Yes-wind-tunnel studies show exposed under-car turbulence adds measurable drag, costing roughly 1 mpg on highway trips (Wikipedia).

Q: Are there recalls on LS460 splash shields?
A: None specific to this panel, but you can search any open campaigns by VIN on the NHTSA site (NHTSA).

Q: How often should I inspect the cover?
A: Check for damage every 5,000 miles or at each oil service.
