Buy Mazda 5 Bumper Retainer

Quick Summary

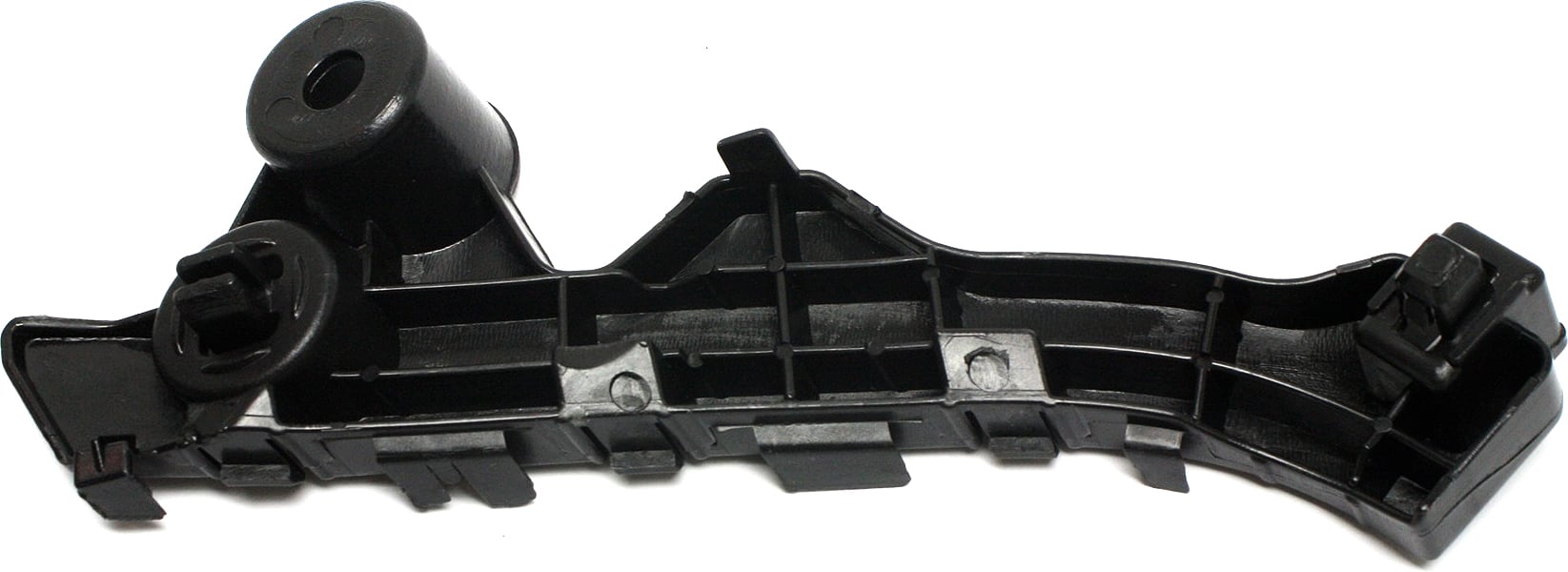

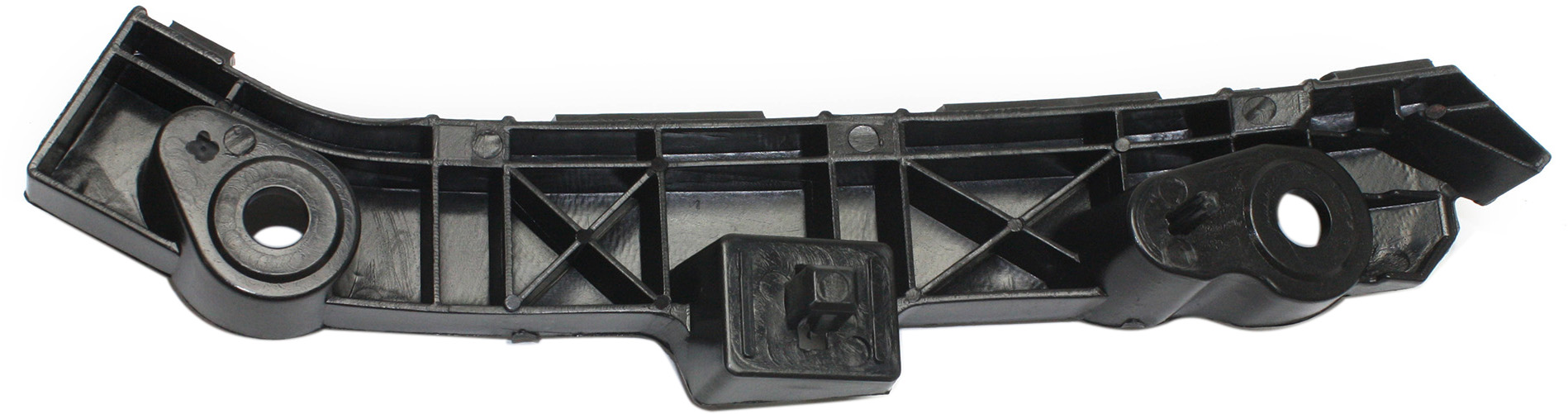

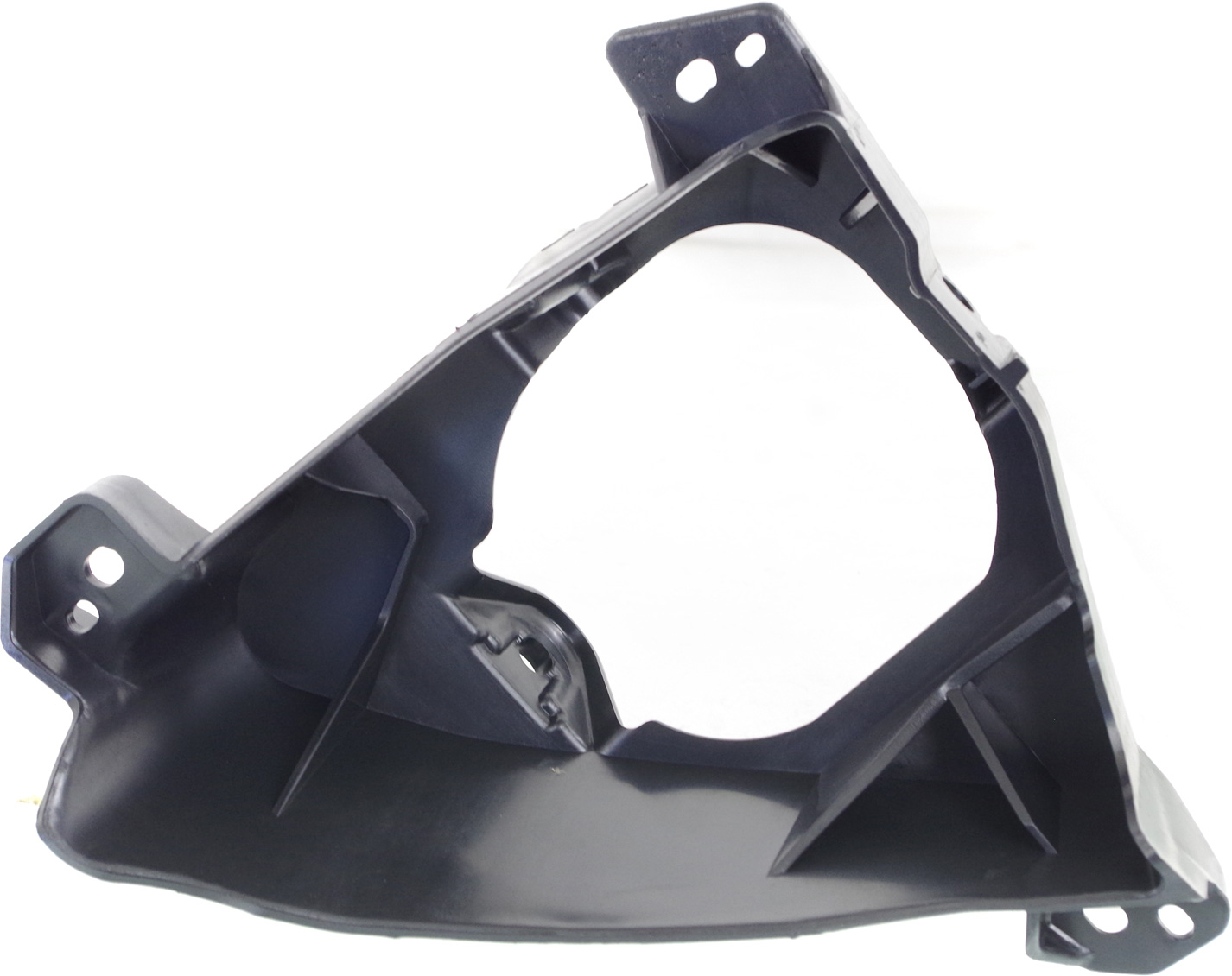

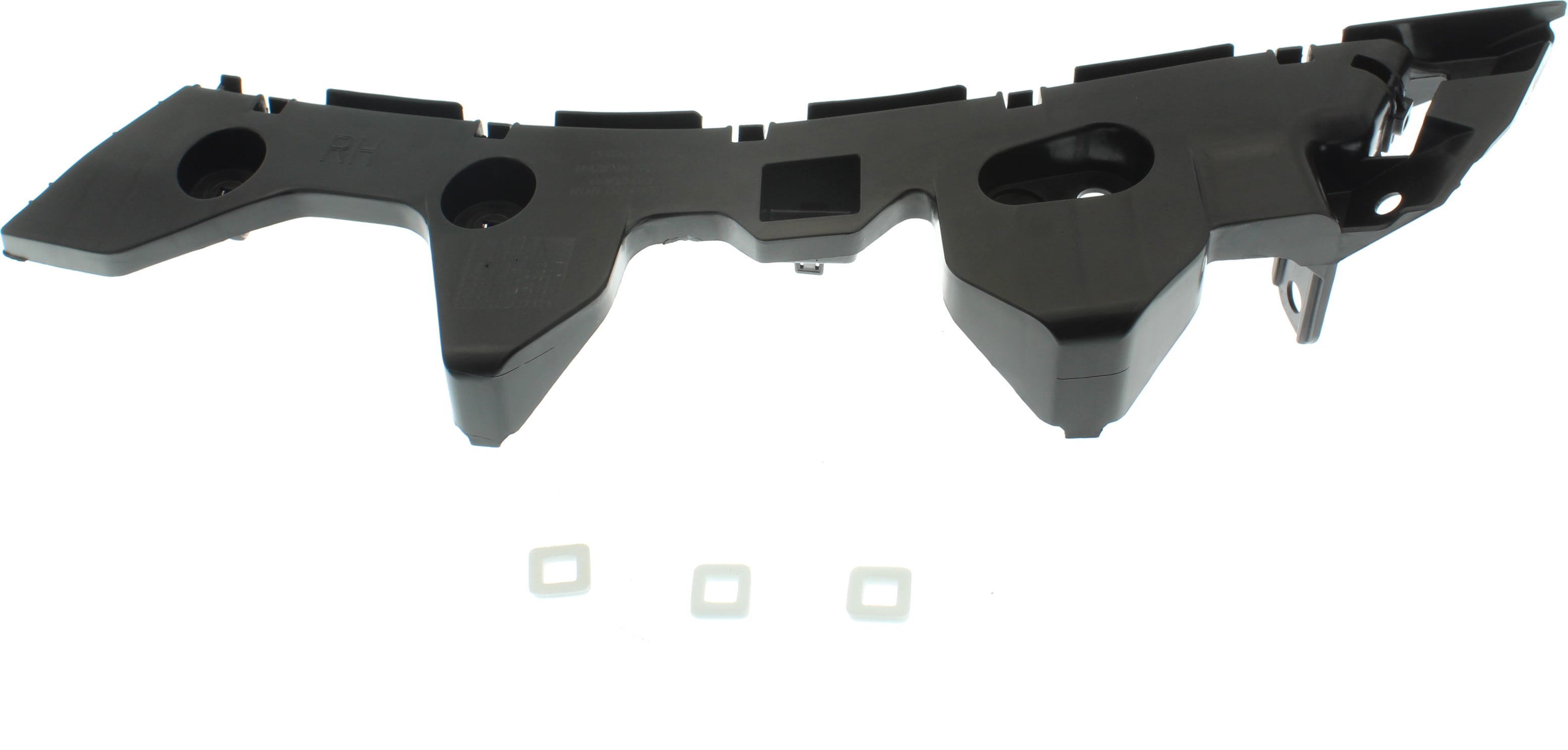

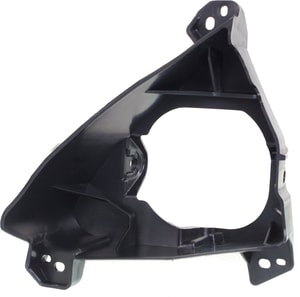

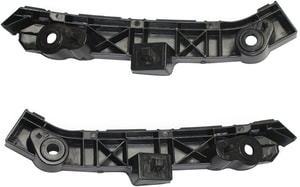

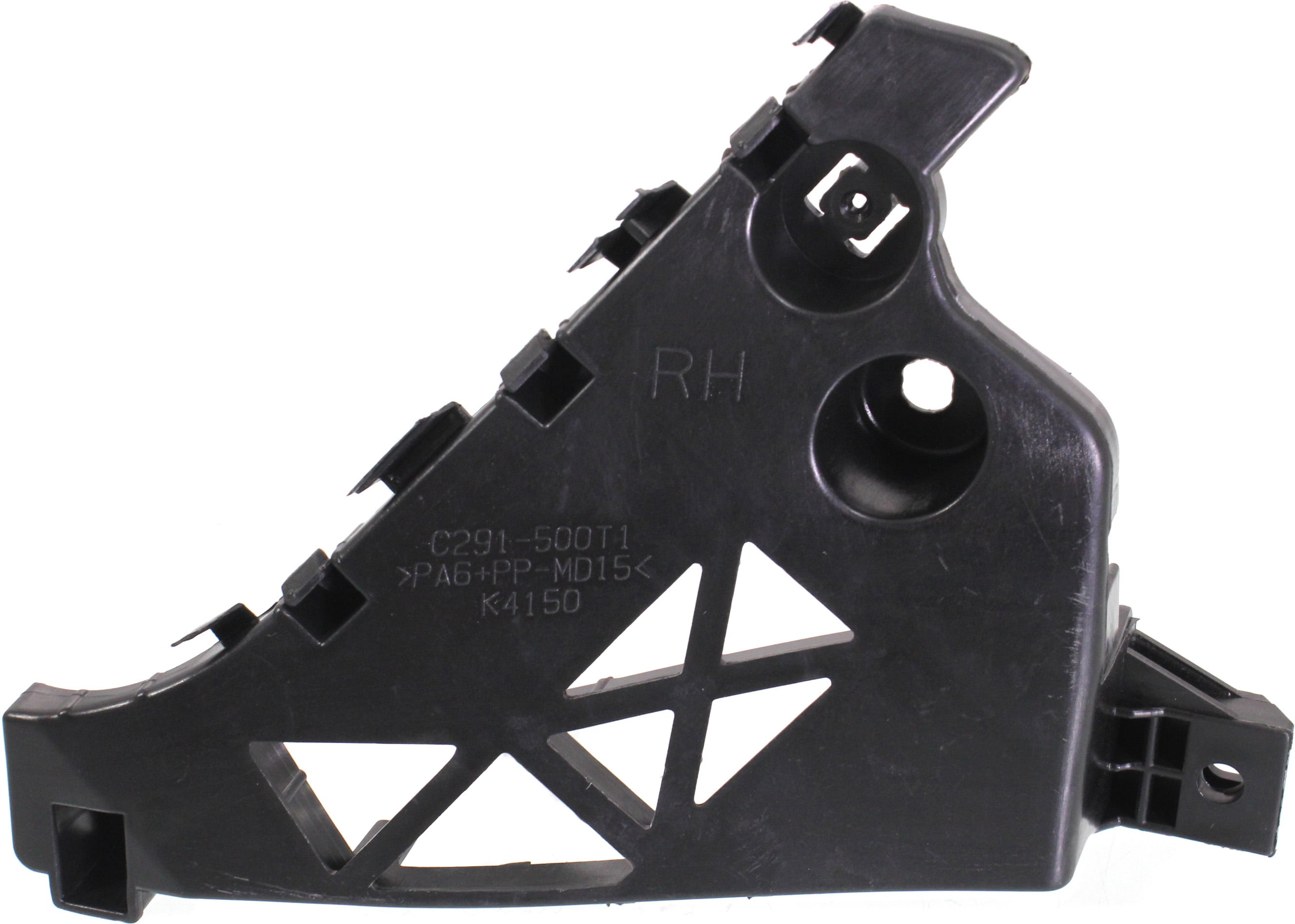

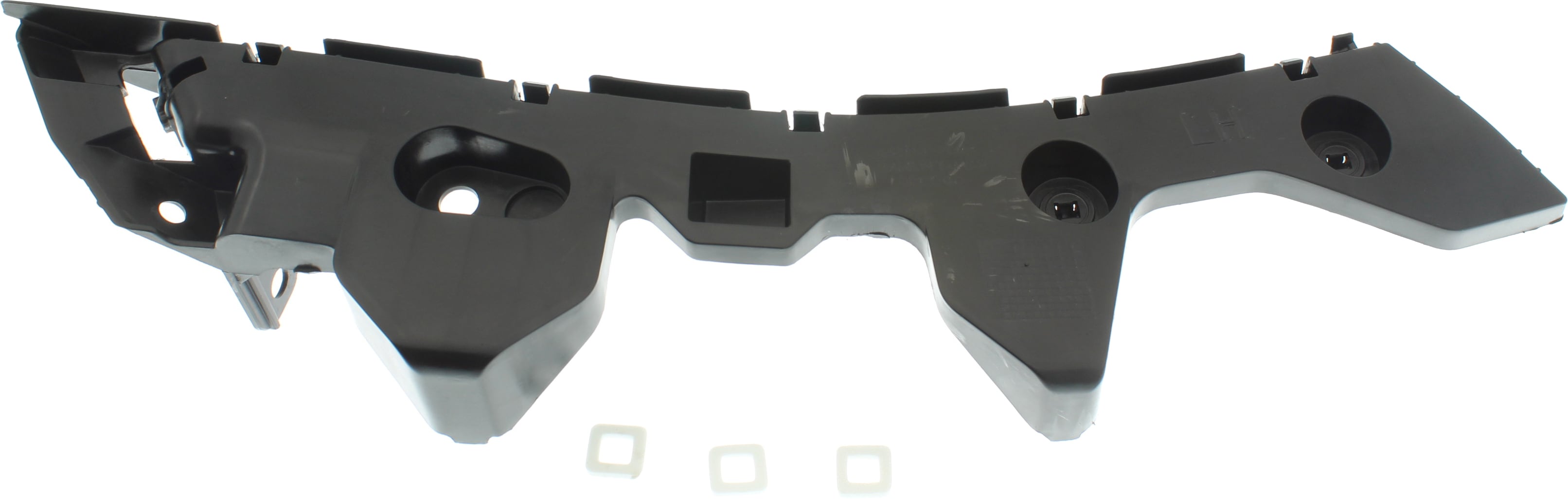

A bumper retainer is a small plastic bracket-also called a bumper clip, guide, or support-that locks the bumper cover to the fender and frame. On every Mazda 5 (model years 2006-2015) you will find several retainers at the wheel-arch edges and under the head- and tail-lamps. These parts hold the bumper straight, keep panel gaps even, and help the cover absorb low-speed hits that federal rules require bumpers to survive at 16-20 inches above the ground (eCFR, eCFR, NHTSA). Most Mazda 5 retainers are molded from impact-resistant polypropylene (PP) plastic (acplasticsinc.com, maycointernational.com). When a retainer cracks or its tabs snap off, the bumper can sag, pop out near the head-lamp, or vibrate at speed-clear signs it is time for a replacement.

What It Does

A retainer grips the flexible bumper skin and the rigid body so they move as one piece during a bump. This spread-the-load job protects paint, keeps sensors for blind-spot monitoring unobstructed, and prevents whistling gaps while driving (Wikipedia, I-CAR Repairability Portal, Mazda USA).

Location Points

• Front corners - join the cover to each front fender.
• Rear corners - hold the cover by the tail-lamp pockets.
• Center top - a slim slide-in strip under the hood edge on some years.
  Mazda 5 owners remove nine 10 mm bolts and a row of plastic rivets to drop the front cover, exposing the retainers (Mazdas247).

Key Materials

Polypropylene is the #1 bumper-grade plastic because it is light, bends before it breaks, and costs less than ABS or polycarbonate (acplasticsinc.com, maycointernational.com). If a retaining tab tears, it can be hot-stapled or nitrogen-welded with matching PP rod (Polyvance).

Failure Signs

• Bumper corner sticks out or sags.
• Rattling noise over bumps.
• Visible cracks in clip ears.
• Head-lamp washer gap wider on one side.
• Blind-spot warning stays lit because radar aim is off (Mazda USA, Reddit).

Safety & Rules

U.S. law (49 CFR 581) says bumpers must resist 2.5-mph corner and 5-mph center hits between 16-20 inches high (eCFR, eCFR). Mazda cautions that repairs near radar sensors must restore the bumper's exact shape or the system will not calibrate (Mazda USA).

Fit Guide

← scroll table horizontally →

(Part numbers are shown so you can match diagrams; they do not reference retailers.)

DIY Steps

1. Unclip wheel-arch splash guards (3 Phillips screws).
2. Remove under-tray bolts (8 mm).
3. Pop hood and pull grille pins.
4. Slide bumper forward; retainers become visible.
5. Unbolt damaged retainer (10 mm, 7-10 N·m per Mazda body spec) .
6. Snap in new bracket, confirm tabs click.
7. Re-fit cover evenly, tighten fasteners in a criss-cross order for gap control (YouTube).

Pro Tips

• Warm clips with a hair-dryer before removal; PP bends, not snaps.
• Test-fit cover before final bolt-up to avoid stress on fresh retainers.
• Check that bumper edge sits flush with the hood line-mis-alignment means the clip is not fully seated (Reddit).

Cost Range

Aftermarket PP retainers cost about $8-$30 each (price varies by side and year). Labor runs 0.5-1.0 hour because the bumper must come off. Doing it yourself keeps costs to parts only.

Care & Check

• Inspect clips whenever you change fog-light bulbs.
• Rinse winter salt; chemicals make PP brittle over years.
• If the bumper is nudged, press each corner-any looseness means a retainer has stretched.

Eco Note

Polypropylene is 100 % recyclable. Place broken clips in #5 plastic streams or give them to shops that send PP scrap to bumper-to-bumper recycling programs (acplasticsinc.com).

More Resources

• 49 CFR 581 Bumper Standard - full rule text for impact tests .
• Mazda service manual PDFs - torque tables and bumper diagrams .
• I-CAR® ADAS repair bulletin for Mazda - sensor safety steps .
• Polyvance plastic-welding guide - video shows PP tab repair .

Frequently Asked Questions

Q: What does a bumper retainer do?
A: It locks the bumper cover to the body so the cover stays straight and can absorb small hits (Reddit).

Q: Is it the same as a bumper clip?
A: Yes-retainer, clip, guide, bracket, and support all describe the same small PP part .

Q: How many retainers are on a Mazda 5?
A: Two at each front corner, two at each rear corner, plus up to two center guides-eight total on most models.

Q: What tools do I need?
A: 8 mm and 10 mm sockets, panel-clip pliers, #2 Phillips driver, and a trim-clip kit for re-installation.

Q: Can I drive with a loose bumper?
A: You can, but wind pressure can tear paint and the bumper may drop, damaging fog-light wiring. Fix it soon.

Q: Will a cracked retainer affect blind-spot monitoring?
A: Yes. A bumper that sags can tilt the radar sensors and trigger warnings. Mazda says replace damaged parts before calibration (Mazda USA).

Q: Are retainers covered by warranty?
A: They are usually considered wear-and-tear; impacts, not defects, cause failure, so warranties rarely apply.

Q: What plastic are Mazda retainers made from?
A: Impact-grade polypropylene (PP), chosen for strength and flexibility (acplasticsinc.com, maycointernational.com).

Q: How tight should the bolts be?
A: Use the body hardware range 7-10 N·m (62-88 in-lb); do not over-tighten or the PP ears may strip .

Q: Can I glue a broken clip?
A: Adhesives are a short-term fix. Plastic welding or replacing the bracket gives a longer-lasting repair (Polyvance).

Q: Do I need to repaint after replacement?
A: Usually not-the retainer hides under the bumper. Only the visible bumper cover may need touch-up.

Q: How long does the job take?
A: A first-time DIYer with basic tools can swap one retainer in about 45 minutes; a shop does it in 20 minutes.

Q: Can cold weather cause clips to break?
A: Extreme cold makes PP stiffer, so clips crack easier if bumped. Warm the area before prying in winter (YouTube).
