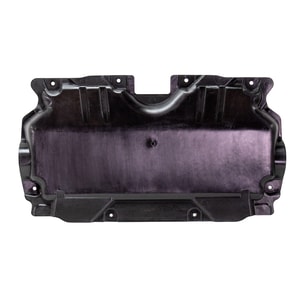

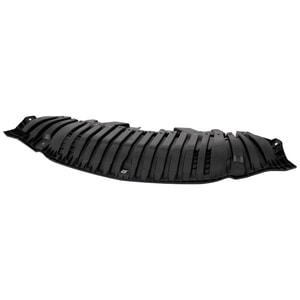

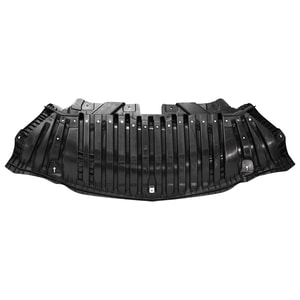

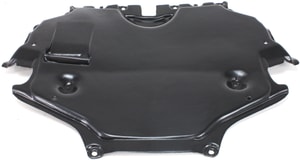

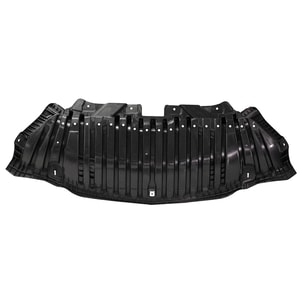

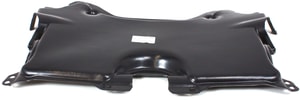

Buy Mercedes-Benz C300 Engine Splash Shield

Quick Look

The Mercedes-Benz C300 engine splash shield-also called an engine splash guard, skid plate, belly pan, lower engine cover, or under-tray-is a wide panel that bolts to the bottom of the front sub-frame. It blocks road splash, loose gravel, and winter salt, helps the car slip through the air more easily, and guides cooling air where the engineers want it. Because it does so many jobs at once, keeping the shield in good shape is a simple way to protect the C-Class drivetrain, save repair money, and even squeeze out a bit more fuel economy. (MBWorld, SAE International)

What It Does

• The shield forms a barrier between the road and key parts like the oil pan, belts, wiring, and O₂ sensors. (Olathe Toyota Parts Center)
• Tests on passenger cars show that smooth under-body panels can cut aerodynamic drag by 3 - 7 %, which helps gas mileage at highway speed. (ScienceDirect, SAE International)
• On rainy days it deflects water away from pulleys and electronics, lowering the risk of stalling or shorts. (RepairPal.com)
• In winter it shields metal parts from salty spray that accelerates rust. (NHTSA)
• Air channels molded into the panel guide fresh air toward the turbo intercooler and let hot air escape behind the shield, improving temperature control.

Damage Signs

• Rattle or flap noise at 50 mph or higher often means broken clips or missing bolts. (Reddit)
• Plastic hanging down is easy to spot when you look under the bumper. (YouTube)
• Oil-change shops sometimes forget to refit all fasteners; a missing screw hole will let the shield sag. (Reddit)
• Overheating in traffic can show up if the shield is gone, because airflow no longer follows the original cooling path. (Reddit)

Fit & Compatibility

• 2015-2021 W205 C300 sedans, wagons, coupes, and cabriolets share the same basic under-tray outline; AMG versions use extra ducts but mount to the same holes. (MBWorld)
• Older W204 C-Class (2008-2014) panels look similar but the bolt pattern is different, so they are not interchangeable. (YouTube)
• Fasteners are M8 Torx screws; Mercedes lists a tightening torque of 30 Nm on side screws and 8 Nm on the small center screws. (BenzWorld)

Material Choices

← scroll table horizontally →

Installation Guide

1. Raise the front safely on ramps or a lift; never rely on a jack alone.
2. Remove 12 Torx screws-start with the rear row, then the center, then the front lip. (MBWorld)
3. Slide the old panel backward, clear of the bumper lip.
4. Clean threads; add anti-seize if you live in a salt-belt state. (NHTSA)
5. Position the new shield and hand-start all screws.
6. Torque to spec (30 Nm side, 8 Nm center). (BenzWorld)
7. Road-test for rattles.

Most DIYers finish in under 30 minutes with basic tools. (YouTube)

Maintenance Tips

• Check the panel at every oil change for cracks or missing clips.
• Hose off road salt in winter to slow corrosion of sub-frame parts. (NHTSA)
• Replace damaged push-pins right away; even one loose corner can scoop air and tear the shield off at speed. (Reddit)

Cost and Time

• A new shield for a C300 typically costs $60 - $140, depending on material. (RepairPal.com)
• Labor at an independent shop is usually 0.3 - 0.5 h, roughly $20 - $60 in most U.S. cities.
• Skipping replacement can lead to far bigger bills: oil-pan or wiring damage from road debris can exceed $2,000. (RepairPal.com)

Environment & Recycling

ABS and polypropylene panels are fully recyclable; studies show recycled PP composites meet many OEM toughness targets, keeping plastics out of landfills. (ScienceDirect) Choosing a reusable aluminum skid plate extends service life and lowers long-term waste. (ASFIR 4x4)

Frequently Asked Questions

Q: Is it safe to drive without the engine splash shield?
A: The car will still run, but you risk water intrusion, faster rust, and lower fuel economy, so driving long-term without the shield is not advised. (RepairPal.com, SAE International)

Q: Will the shield improve gas mileage?
A: Smoothing the underbody can cut drag by up to 7 %, equal to 1-2 mpg on the highway for many sedans. (ScienceDirect)

Q: Does the panel help cooling?
A: Yes. It funnels fresh air toward the radiator and lets hot air exit at the rear, reducing engine bay heat soak in traffic.

Q: Can I swap a metal skid plate from an off-road model?
A: Only if it was designed for the W205 chassis; random plates may block service points or sit too low. (ASFIR 4x4)

Q: What fasteners should I keep as spares?
A: Buy a pack of M8×25 Torx screws and 10 plastic push-pins; they fit most OEM panels on the C-Class. (BenzWorld)

Q: Why does my shield rattle after an oil change?
A: Shops sometimes skip one screw; the loose corner then flaps in the wind at 50 mph and up. Tighten or replace the missing screw. (Reddit)

Q: Will insurance cover splash shield damage?
A: Comprehensive plans may pay if the shield is torn off by road debris; collision plans usually do not. Check your policy. (AAA)

Q: Can a broken shield cause alignment issues?
A: Not directly, but without it, air turbulence under the car can make the vehicle feel unstable in cross-winds. (Reddit)

Q: How often should I replace the shield?
A: Inspect every service; replace when cracked or warped. A quality plastic panel can last 5-10 years, aluminum even longer. (Omnexus, ASFIR 4x4)

Key Takeaways

Keeping the C300 engine splash guard intact is cheap insurance. It limits water and salt damage, quiets the ride, boosts aerodynamics, and guides cooling air. Regular checks, prompt clip replacement, and the right torque on every screw keep this simple part doing its big job for years.
