Buy Mercedes-Benz C300 Fog Light Assembly

Mercedes-Benz C300 fog lights-also called fog lamps, driving lamps, or auxiliary lights-sit low in the front bumper and shoot a wide, flat beam that cuts under the haze, lighting lane edges and signs while keeping glare away from on-coming traffic. They use small H-series bulbs (mostly H11) on earlier W204 models, then become LED modules or an "enhanced fog-light" mode inside the MULTIBEAM/ DIGITAL LIGHT headlamps on later W205 and W206 cars. When aimed and used correctly, studies show they boost lane guidance and reduce multi-car crashes in thick fog.

Overview

Fog lights work at speeds below about 40 mph, filling the dark space right in front of the C300. The beam is extra-wide but capped on top, as set out in the SAE J583 fog-lamp standard. U.S. rules in 49 CFR §393.24 limit height and tie compliance to that same SAE spec. Europe follows ECE R19 criteria for pattern and brightness.

Compatibility

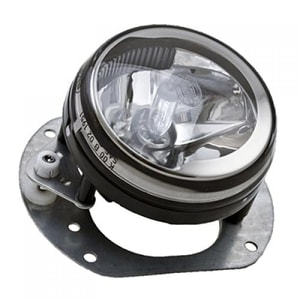

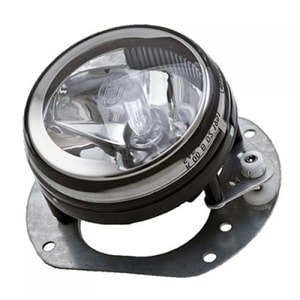

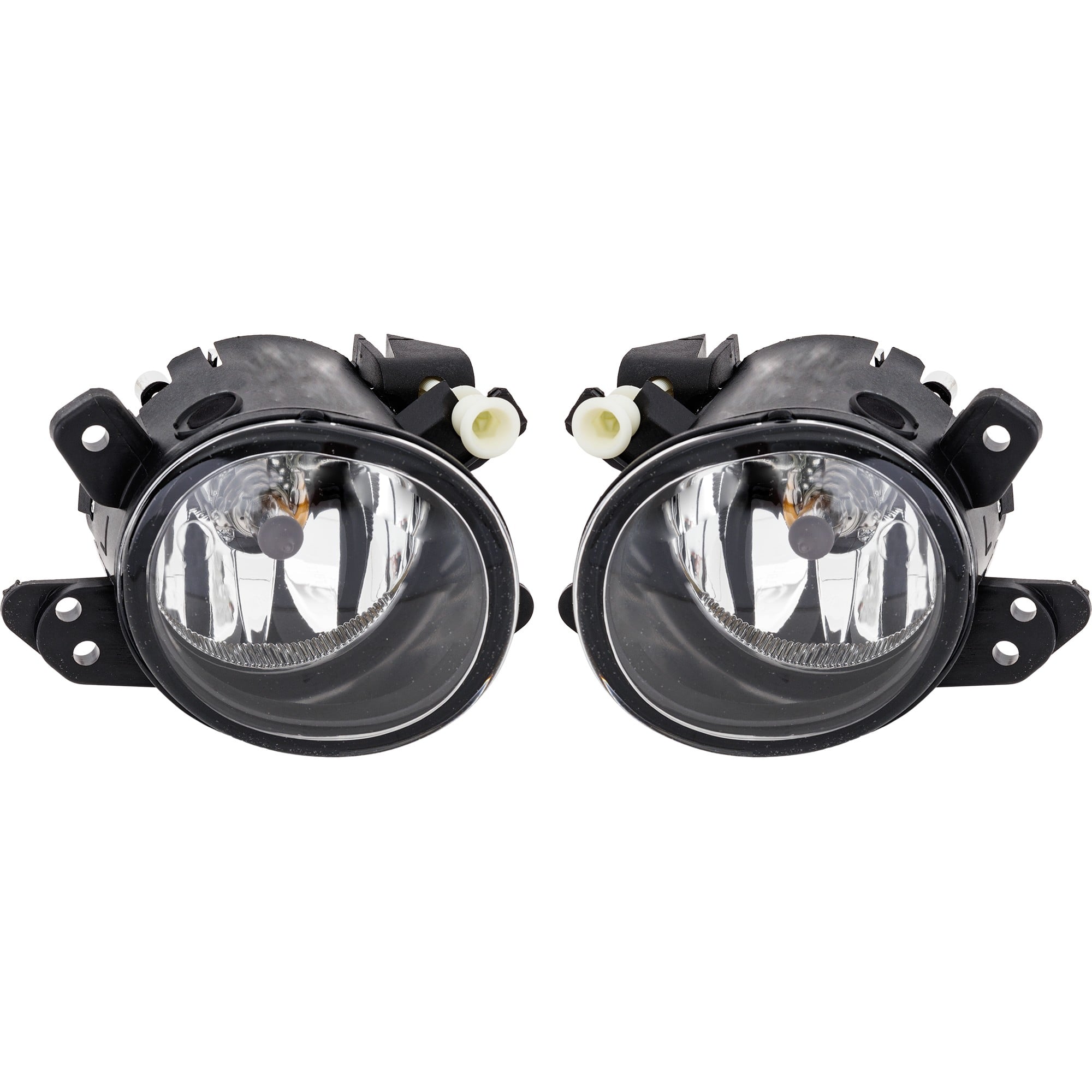

• W204 C300 (2008-2014): Separate round lamps in the lower grille use an H11 (or H8/H9) halogen bulb.
• W205 C300 (2015-2021): Stand-alone fog lamps deleted; the headlamp's "Enhanced Fog Light" function lowers and widens the LED beam when the rear fog lamp is on.
• W206 C300 (2022-present): The new DIGITAL LIGHT system creates a fog pattern by pixel control inside the main headlamp.

Bulb & Output

A stock H11 halogen draws 55 W and makes about 1,350 lumens at 13.2 V Wikipedia listing. Premium halogens like the OSRAM Night Breaker push 1,500 lm+ with hotter filaments. Many owners retrofit plug-in LED replacements that reach 6,000 lm per set and draw under 25 W each, saving power while running cooler.

Safety Benefits

University research shows the extra-low beam widens lane visibility and cuts multi-vehicle pile-ups by over 260 % in dense fog cases compared with low beams alone. A NIH-hosted study confirms yellow-tinted light penetrates mist better than cool white, improving hazard detection distance at 102 m visibility levels. A popular road-safety explainer echoes those findings for everyday drivers.

Laws & Standards

• SAE J583 - beam shape, glare limits
• 49 CFR - U.S. mounting height & aimable rule
• ECE R19 - EU approval markings & color cut-off

Mount lamps symmetrically and no higher than 800 mm (≈31 in) above the road, per UNECE guidance; higher installs need steeper down-aim.

LED vs Halogen

Independent lab tests show automotive LEDs hit 82 lm/W-over three times halogen efficiency-and last ten times longer. They also keep lens temperature lower, reducing reflector haze. Beam pattern must still match J583; a TacomaWorld photometric test demonstrates several SAE-marked LED pods meet the cut-off.

Installation Steps

1. Turn wheel inward for fender liner access (W204).
2. Remove three liner screws, reach the lamp housing.
3. Twist the bulb socket counter-clockwise and pull out.
4. Swap the bulb-avoid touching glass.
5. Re-seat, test, and reinstall liner.
   An owner forum guide notes the C-Class uses electronic protection via the front SAM module, so no traditional fog-lamp fuse exists. (MBWorld)

Aiming & Adjustment

Park 25 ft (7.6 m) from a flat wall, mark bulb center height, then turn the fog-lamp adjuster until the top cut-off sits just under the tape. A forum tip: pull the light switch one notch to check front fogs only.

Maintenance Tips

• Clean the polycarbonate lens with mild soap; avoid abrasive pads.
• Check for condensation; a vented cap or silica pack can help.
• Replace bulbs in pairs; color shifts over time.
• Keep wiring dry around the connector grommet.

Troubleshooting

← scroll table horizontally →

Upgrades & Tech

Later W205/W206 cars let drivers activate an "Enhanced Fog Light" mode that widens the low-beam automatically below 70 km/h. The DIGITAL LIGHT system even projects guidance marks to the road edge in fog.

Environment

Lower-watt LED fog lamps trim CO₂ by about 0.9 g/km compared with halogen, based on typical alternator load. Longer life also cuts hazardous-waste glass and metal.

Frequently Asked Questions

Q: What bulb fits a W204 C300 fog lamp?
A: An H11 halogen bulb is standard; H8 or H9 can work with correct wattage.

Q: Do W205 or W206 C300s have separate fog lamps?
A: No-the fog pattern is created inside the headlamp by software.

Q: Why are fog lights mounted low?
A: Low mounting keeps the beam under the fog layer and reduces glare.

Q: Is yellow light really better in fog?
A: Studies show yellow penetrates dense mist farther than white, improving reaction time.

Q: Can I swap LEDs straight in?
A: Yes if the LED is SAE J583-marked and fits the H11 socket; some cars need a CAN-bus resistor.

Q: How bright is a stock halogen bulb?
A: About 1,350 lumens according to international specs.

Q: Do fog lights have a fuse?
A: The C300's front SAM module electronically protects the circuit instead of a traditional fuse. (MBWorld)

Q: What's the legal height limit?
A: U.S. rules cap it at roughly 18-30 in (460-760 mm) measured to lamp center.

Q: How do I turn them on?
A: Rotate the light knob to "parking," then pull it one click; a green symbol glows in the cluster.

Q: Will fog lamps help in heavy rain?
A: Yes; the wide beam lights lane lines without bouncing glare like high beams.

Q: Can I drive with fog lights on all the time?
A: Laws vary; some regions allow them only in poor visibility. Check local code.

Q: How often should bulbs be replaced?
A: Halogen output falls after about 500 hours; change every two years if used often.

Q: Do LEDs get hot?
A: Less than halogens, but they still need heat sinks to protect the driver board.

Q: What causes condensation inside?
A: A torn rear cap or clogged vent; dry and reseal the lamp, add a desiccant pack.

Q: Are fog lights required equipment?
A: No, they're optional under U.S. and EU rules, but must meet J583/ECE R19 if installed.

Q: Can bad aim blind other drivers?
A: Yes; even fog lamps can cause glare if tilted upward. Follow the 25-ft wall aim method.
