Buy Mercedes-Benz Sprinter 2500 Side View Mirrors

This guide gives you everything you need to know about the Mercedes-Benz Sprinter 2500 side mirror-also called a door mirror, wing mirror, or side-view mirror.

Overview

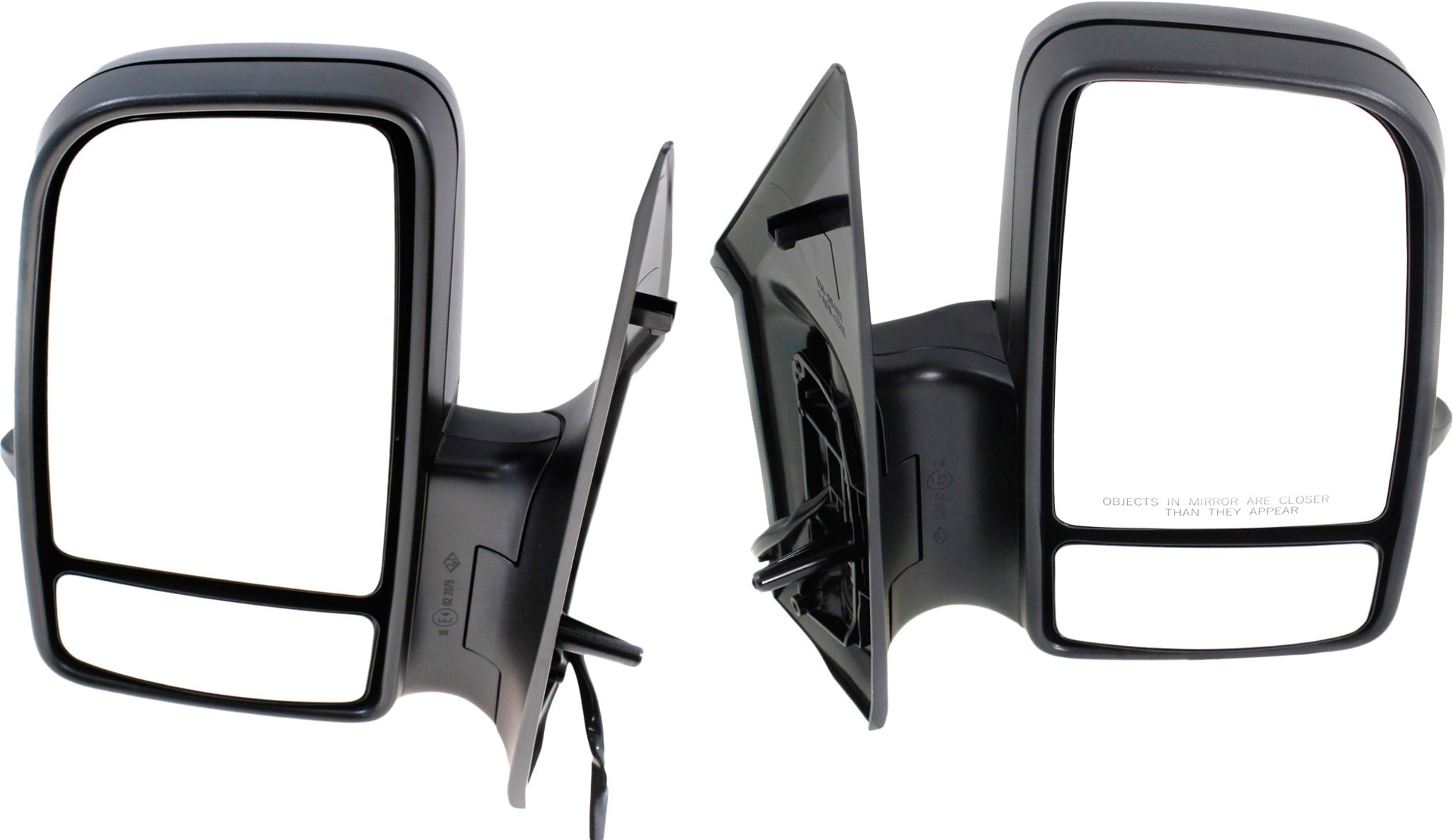

The Sprinter 2500 uses a tall, two-piece mirror: a large flat upper glass and a smaller convex lower glass that widens the view. This design cuts blind spots on a long van. Most 2007-present vans let you pick power-adjust, heat, turn-signal repeaters, power-fold, or even cameras in the housing. (Mercedes-Benz USA Media, Mercedes-Benz Parts Store) The mirror pivots so you can fold it tight against the body when parking or squeezing through narrow roads. (sprinter-source.com)

Fitment Guide

• NCV3 (2007-2018) & VS30 (2019-2025) models share the same bolt pattern but use different wiring plugs, so match the exact year before buying.
• Left vs. Right: Each side is shaped differently; glass size and plug pins do not swap.
• Extended-arm mirrors (96 in. span) are factory options for box trucks and RV builders.
• Camera versions add a 360° or digital rear-view feed; they appeared for the 2024 model year and later. (Mercedes-Benz, Mercedes-Benz Ireland)

Key Features

• Power adjustment & heat keep the glass clear and let drivers fine-tune view from inside. (Mercedes-Benz)
• LED turn signals in the cap warn traffic alongside the van. (Mercedes-Benz Parts Store)
• Blind-spot assist sensors in some mirrors glow to alert you when another vehicle is in the danger zone. (Mercedes-Benz USA Media)
• Digital rear-view mirror switches from glass to camera view when cargo blocks the back window. (Mercedes-Benz Ireland)
• Convex lower glass (about 6 1⁄8 in. diagonal) shows the curb and trailer wheels.

Safety Rules

• All U.S. vans must have a driver-side outside mirror that meets the field-of-view target set by FMVSS 111. (Federal Register)
• In the U.K. and most of Europe, the full vehicle-including mirrors-cannot exceed 2.55 m in width. (GOV.UK, GOV.UK)
• Sprinter manuals remind owners to fold mirrors when widths are tight to avoid breakage and fines. (Mercedes-Benz Vans, Mercedes-Benz)

DIY Installation

1. Disconnect battery to avoid air-bag or mirror-heater shorts.
2. Pop the interior sail trim and unplug the mirror harness. (YouTube)
3. Remove three Torx bolts; hold the mirror so it does not drop. Tighten new bolts to about 11 N·m (spec varies by year-check service data).
4. Clip harness, test power and heat, then reinstall trim. Whole swap takes 30-45 minutes for beginners.

Care & Maintenance

• Wash glass with mild soap; avoid ammonia that dulls coatings. (Mercedes-Benz)
• Test heat in cold weather-both panes should warm evenly within two minutes. (Mercedes-Benz Vans)
• Lubricate the hinge annually so the mirror folds without sticking. (sprinter-source.com)
• Replace cracked lower glass quickly; broken convex panes hide cyclists and curbs.

Common Problems

← scroll table horizontally →

(Data compiled from owner reports.) (sprinter-source.com, sprinter-source.com)

Upgrade Ideas

• Add towing mirrors: Extended arms let you see past wide trailers and slide-in campers.
• Install blind-spot cameras that feed the factory MBUX screen for a live side view. (Mercedes-Benz, Mercedes-Benz Vans)
• Retrofit digital rear-view mirror kit if cargo blocks sight lines; the 2025 Sprinter offers it from the factory. (Mercedes-Benz USA Media)

Cost & Value

• Complete assembly: $300-$500, depending on power-fold and camera options (prices drawn from parts catalogs and service bulletins). (Mercedes-Benz Parts Store)
• Glass only: $30-$60 per pane.
• Shop labor: 0.5-1.0 hour at average U.S. rates of $100 per hour. Do-it-yourself owners save the labor charge. (YouTube)

Frequently Asked Questions

Q: What years of Sprinter 2500 use the same mirror bolt pattern?
A: All U.S. vans from 2007 through the current 2025 model share three M8 bolts, so the shell fits, but wiring changed in 2019. (Mercedes-Benz USA Media)

Q: Can I change only the glass?
A: Yes. The convex and flat panes snap in; you can swap a broken piece in minutes without removing the whole mirror. (YouTube)

Q: Does every Sprinter mirror have heat?
A: No. Heat is standard on many VS30 vans but optional on older NCV3 models. Look for two small heater wires behind the glass. (Mercedes-Benz Vans, Mercedes-Benz)

Q: How do I fold the mirror?
A: Push gently toward the door until it latches; power-fold models do the same by pressing the fold button on the dash. (sprinter-source.com, Mercedes-Benz)

Q: What is the legal mirror width limit in Europe?
A: The vehicle, including mirrors, must stay under 2.55 m wide in most cases. (GOV.UK)

Q: My mirror shakes at 60 mph-why?
A: One mounting bolt may be loose; tighten to about 11 N·m, or add a rubber liner if the plastic bracket is worn.

Q: Do the turn signals in the mirror need special bulbs?
A: They use sealed LED boards; if one fails, replace the cap or the light module, not a bulb. (Mercedes-Benz Parts Store)

Q: Is a digital rear-view mirror worth it?
A: Yes if your cargo blocks the back window; the roof-mounted camera keeps a clear video feed day or night. (Mercedes-Benz Ireland)

Q: Are extended towing mirrors street legal?
A: Yes, as long as the total width still meets local limits (2.55 m in the U.K.; watch state rules in the U.S.). (GOV.UK, Federal Register)

Q: How often should I replace mirror glass?
A: Replace right away if cracked; even small chips can distort distance and hide bikes or cars.
