Acura ILX Wheel Bearing Replacement

Wheel Bearing Axle Nut Torque Spec: Refer to OE service manual

with 1.692 in. Bearing Inside Diameter with 3.070 in. Outside Diameter Bearing(s) 1.732 in. Width ; Sealed

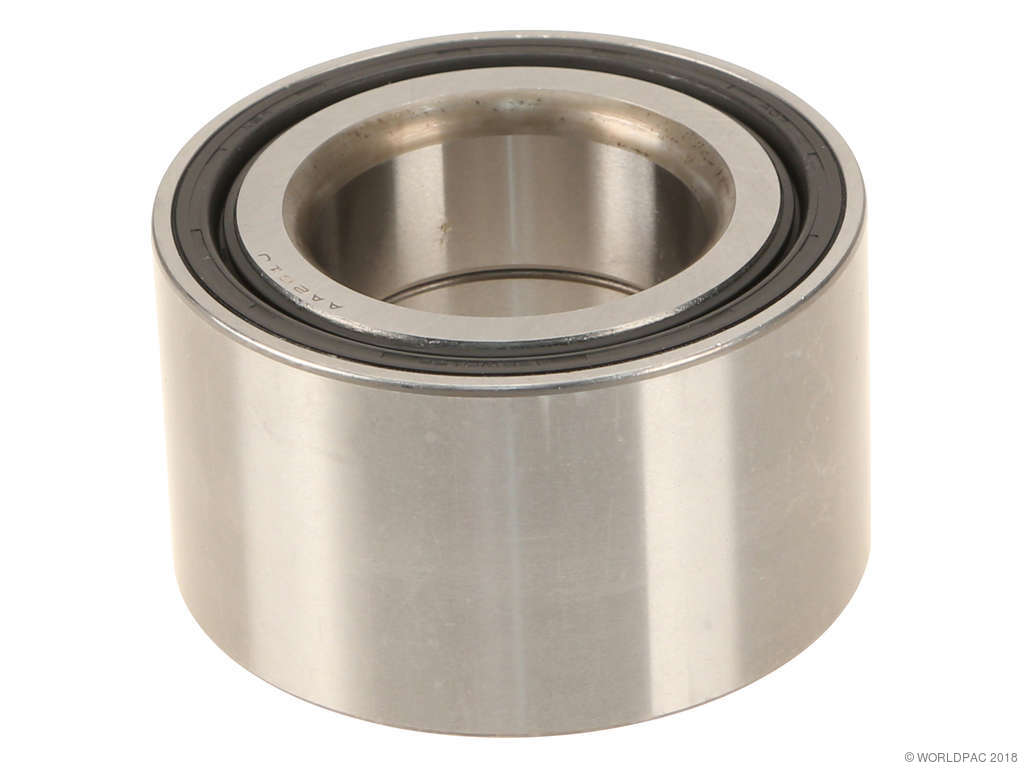

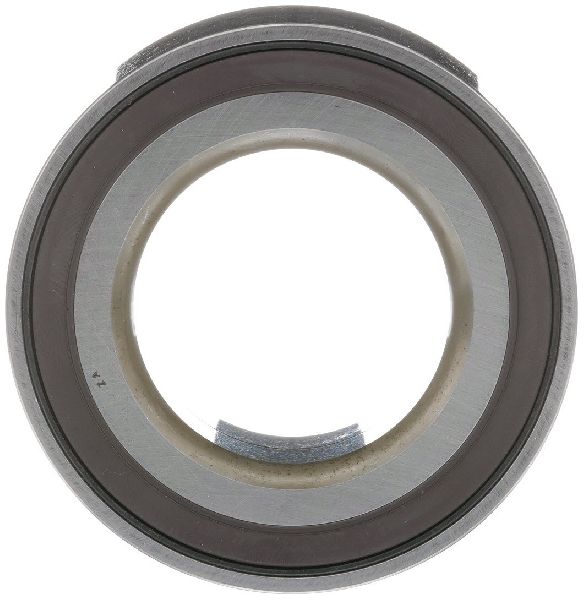

NSK IS THE O.E. MANUFACTURER

NSK IS THE O.E. MANUFACTURER

FAG Global Number 713 1424 100

Installation direction is critical bearing contains a magnetic ABS Sensor. Use part number MAG TEST CARD for proper identification.

with 1.889 in. Bearing Inside Diameter with 3.385 in. Outside Diameter Bearing(s) 1.574 in. Width ; Sealed

FAG Global Number 101799 This bearing comes with a built in magnetic strip which should be assembled towards the ABS sensor. The correct side can be confirmed by moving an FAG magnet indicator or any magnet reactive product (such as a paper clip) over the end of the bearing. A protective metal cover can also indicate the correct side to be installed.

Install Identical to OE

Install Identical to OE
