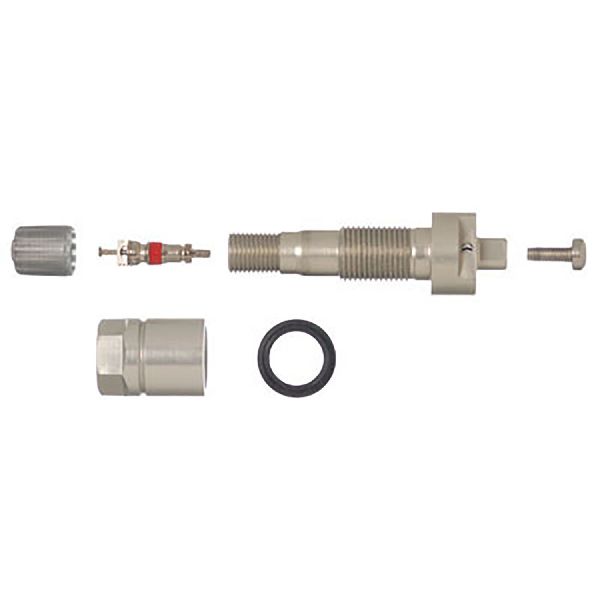

Supersession (ACES) Replaces 20002 Mounting Method: Clamp-In components Torque: Nut torque = 62in-lbs; Valve core torque = 3.5 in-lbs Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included Quantity Included: 1
Supersession (ACES) Replaces 20002 Mounting Method: Clamp-In components Torque: Nut torque = 62in-lbs; Valve core torque = 3.5 in-lbs Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included 20004 - TPMS Service Kit Quantity Included: 25
Mounting Method: Snap-in assembly components Torque: Mounting screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included Quantity Included: 1
Mounting Method: Snap-in assembly components Torque: Mounting screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included 20018 - TPMS Service Kit Quantity Included: 25
Optional Replacement Metal Valves: RDV036 silver 43mm, RDV037 black 43mm, RDV038 titanium 43mm
oe style; w/o Valve 433 Mhz Sensor 4 Per Box No programming required. Install sensor and follow the OEM factory relearn procedure.
oe style; w/o Valve 433 Mhz Sensor 25 Per Box No programming required. Install sensor and follow the OEM factory relearn procedure.
oe style; w/o Valve 25 Per Box No programming required. Install sensor and follow the OEM factory relearn procedure.
oe style; w/o Valve 25 Per Box No programming required. Install sensor and follow the OEM factory relearn procedure.
oe style; w/o Valve 4 Per Box No programming required. Install sensor and follow the OEM factory relearn procedure.
OE Manufactured

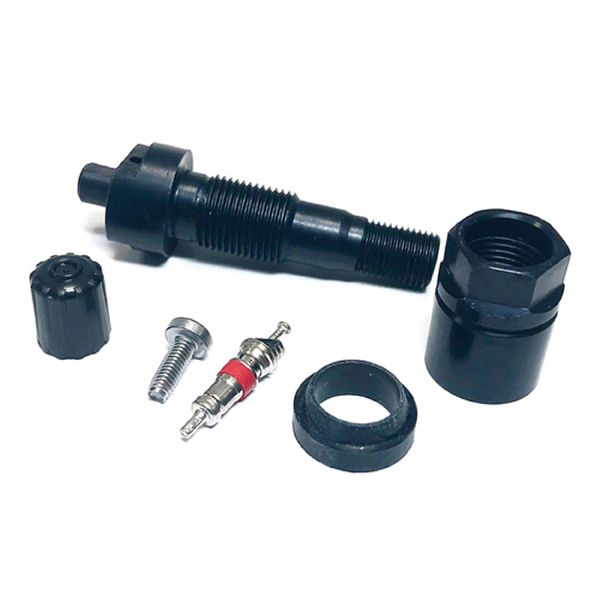

Mounting Method: Clamp-in valve assembly components Torque: Nut torque = 62 in-lbs, 7Nm; Screw Torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included 34010 - TPMS Service Kit Quantity Included: 50
Mounting Method: Clamp-in valve assembly components Torque: Nut torque = 62 in-lbs, 7Nm; Screw Torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included 34010 - TPMS Service Kit Quantity Included: 10
Metal Clamp-in; 315/314.9 MHz; Multi-application Sensor
Mounting Method: Clamp-in valve assembly components Torque: Nut torque = 62 in-lbs, 7Nm; Screw Torque: 11.5in-lbs, 1.3 Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included Quantity Included: 1
Browse our selection of quality tire pressure monitoring system (tpms) sensor serv parts designed specifically for your Cadillac STS. We carry options across multiple trim levels, body styles, and engine configurations to ensure a perfect fit.
Base · Elegance · Platinum · V
Sedan
V6 3.6L · V8 4.4L · V8 4.6L
Automatic
