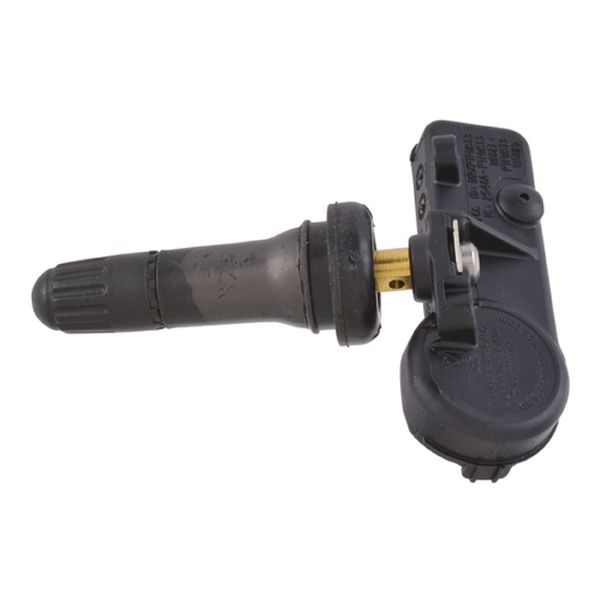

Chevrolet Camaro Tire Pressure Monitoring System (TPMS) Sensor Replacement

No Programming Required. Install and Follow Mfr. Relearn Procedure. Includes Straight-In Screw Rubber Valve Includes Replacement Rubber Valve RDV043 Optional Replacement Metal Valves: RDV036 Silver 43mm, RDV037 Black 43mm, RDV038 Titanium 43mm Full Performance Validation- Every Application Validated To Function Exactly As The OE Sensor

with Rubber Type Valve

with Aluminum Type Valve

Supersession (ACES) Replaces 20135 Mounting Method: Snap-in Torque: Screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Frequency: 433.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Rubber Valve Color: Black Valve Stem Included Washer Not Included Includes 1 TPMS sensor with valve Replaces ~20154, 29015~ Quantity Included: 1

Supersession (ACES) Replaces 20156 Mounting Method: Clamp-in Torque: Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Frequency: 315.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Aluminum Valve Color: Silver Valve Stem Not Included Washer Not Included Includes 1 TPMS sensor w/ nut Quantity Included: 1

Mounting Method: Snap-in Torque: Screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Frequency: 315.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Rubber Valve Color: Black Valve Stem Included Washer Not Included Includes 1 TPMS sensor with valve Quantity Included: 1

Supersession (ACES) Replaces 28395 Mounting Method: Clamp-in Torque: Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Frequency: 315.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Aluminum Valve Color: Silver Valve Stem Not Included Washer Not Included Includes 1 TPMS sensor w/ nut Quantity Included: 1

Mounting Method: Clamp-in Torque: Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Frequency: 433.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Not Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Aluminum Valve Color: Silver Valve Stem Not Included Washer Not Included Includes 1 TPMS sensor w/ nut Quantity Included: 1

Supersession (ACES) Replaces 20161; 20283; 28206 Mounting Method: Snap-in Torque: Screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Frequency: 315.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Rubber Valve Color: Black Valve Stem Included Washer Not Included Includes 1 TPMS sensor with valve Quantity Included: 1

with aluminum valve; OE Style/ID Clone-able 314.9 Mhz Sensor Tire Pressure Monitoring System OE Design Sensor

w/ Rubber Valve OE Style/ID Clone-able 314.9 Mhz Sensor Tire Pressure Monitoring System OE Design Sensor

Supersession (ACES) Replaced by 29086 Mounting Method: Snap-in Torque: Screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Frequency: 433.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Rubber Valve Color: Black Valve Stem Included Washer Not Included Includes 1 TPMS sensor with valve Quantity Included: 1

Metal Clamp-in Stem; 315 MHz; Multi-application Sensor Relearn procedure may need to be performed upon installation of unit. Please refer to the service manual for vehicle specific instructions. Next Generation REDI-Sensor Replacement

Rubber Snap-in Stem; 315 MHz; Multi-application Sensor Relearn procedure may need to be performed upon installation of unit. Please refer to the service manual for vehicle specific instructions. Next Generation REDI-Sensor Replacement

Replacement Fixed Angle 43mm Metal Valves: RDV036 Silver, RDV037 Black, RDV038 Titanium. Replacement Rubber Valve: RDV043. OE Quality (must be programmed prior to install) Updateable, Reprogrammable and Copy Clone Capable

Rubber Snap-in Stem; 433.90 MHz; Multi-application Sensor Relearn procedure may need to be performed upon installation of unit. Please refer to the service manual for vehicle specific instructions. Next Generation REDI-Sensor Replacement

Metal Clamp-in Stem; 433.92 MHz; Multi-application Sensor Relearn procedure may need to be performed upon installation of unit. Please refer to the service manual for vehicle specific instructions. Next Generation REDI-Sensor Replacement

314.9 MHz Faraday with TFA; Can replace 550-2405 OE Manufactured

433MHz with TFA; Screw torque = 11.5in-lbs, 1.3 Nm OE Manufactured

433MHz, Nut torque = 71 in-lbs, 8Nm, Valve core torque = 3.5 in-lbs, 0.4Nm, OE Manufactured

Schrader Clamp-in Gen Delta, 314.9 MHz, Nut torque = 71in-lbs, 8Nm, Valve core torque = 3.5 in-lbs, 0.4 Nm, can replace 550-2410 OE Manufactured

w/ Rubber Valve 433 Mhz Sensor Tire Pressure Monitoring System OE Design Sensor

w/ Rubber Valve Alternate Number 315 Mhz Sensor Tire Pressure Monitoring System OE Design Sensor

with aluminum valve; 315 Mhz Sensor Tire Pressure Monitoring System OE Design Sensor
