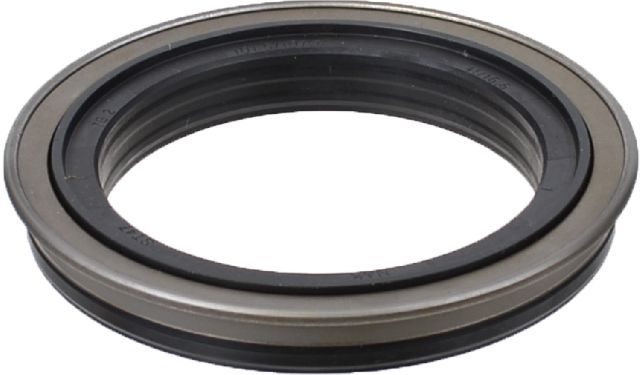

Chevrolet Suburban 2500 Wheel Seal Replacement

2.188 Shaft Diameter 3.000 Bore Diameter 3.005 Outside Diameter Seal 0.256 Width ; w/8600 lb. G.V.W.

2.000 Shaft Diameter 2.560 Bore Diameter 2.565 Outside Diameter Seal 0.234 Width ; Speedi-Sleeve # 99200 w/7200 lb. G.V.W.

8600 lb. G.V.W. FAG Global Number 413 3140 100

7200 lb. G.V.W. FAG Global Number 413 3029 100

w/10.50" Ring Gear

w/ 9.50" Ring Gear

FAG Global Number 413 2759 100

1.705 Shaft Diameter 3.080 Bore Diameter 3.084 Outside Diameter Seal 0.550 Width with 9.5 Ring Gear

10.50" Ring Gear FAG Global Number 413 3297 100

Hub Seal

with 9.5 (in) Ring Gear

9.50" Ring Gear FAG Global Number 413 2758 100

2.854 Shaft Diameter 3.932 Bore Diameter 3.939 Outside Diameter Seal 0.630 Width with 10.50 , 11.50 Ring Gear

10.50", 11.50" Ring Gears FAG Global Number 413 3301 100

w/ 9.50" Ring Gear

2.960 Shaft Diameter 3.995 Bore Diameter 3.939 Outside Diameter Seal 0.610 Width with 10.50 , 11.50 Ring Gear

W/ Sleeve w/10.50" Ring Gear

GM 11.5 in. Seal GM 11.5 in.; Rear Seal
