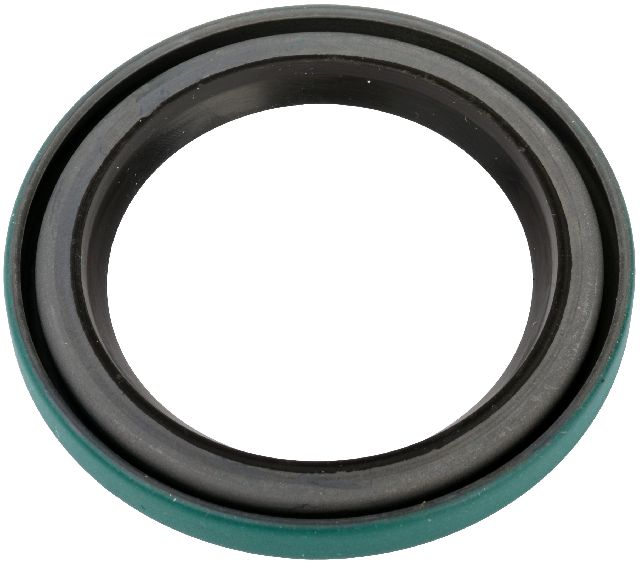

Chrysler Newport Wheel Seal Replacement

7.25" Ring Gear

1.399 Shaft Diameter 2.292 Bore Diameter 2.296 Outside Diameter Seal 0.469 Width with 7.25 Ring Gear

1.618 Shaft Diameter 2.575 Bore Diameter 2.579 Outside Diameter Seal 0.500 Width with 8.25 , 9.25 Ring Gear

1.938 Shaft Diameter 2.621 Bore Diameter 2.626 Outside Diameter Seal 0.570 Width

with 7.25 (in) Ring Gear

7.25" Ring Gear FAG Global Number 413 2468 100 1.399" Shaft

7.25 in. Ring Gear - 9 Bolt Housing Cover

8.25 in., 9.25 in. Ring Gear

FAG Global Number 413 2995 100

8.25" and 9.25" Ring Gear FAG Global Number 413 2698 100 .70" Wide Brg. .830" Wide Brg. 1.024" Wide Brg.

1.375 Shaft Diameter 2.437 Bore Diameter 2.441 Outside Diameter Seal 0.250 Width

2.048 Shaft Diameter 2.727 Bore Diameter 2.732 Outside Diameter Seal 0.570 Width

1.438 Shaft Diameter 2.437 Bore Diameter 2.441 Outside Diameter Seal 0.250 Width

1.730 Shaft Diameter 2.336 Bore Diameter 2.340 Outside Diameter Seal 0.250 Width ; Late

1.438 Shaft Diameter 2.686 Bore Diameter 2.690 Outside Diameter Seal 0.313 Width

FAG Global Number 413 3072 100

1.813 Shaft Diameter 2.875 Bore Diameter 2.879 Outside Diameter Seal 0.313 Width

1.375 Shaft Diameter 2.686 Bore Diameter 2.690 Outside Diameter Seal 0.500 Width

1.552 Shaft Diameter 2.686 Bore Diameter 2.690 Outside Diameter Seal 0.500 Width

1.734 Shaft Diameter 2.449 Bore Diameter 2.453 Outside Diameter Seal 0.250 Width ; Early

1.730 Shaft Diameter 2.336 Bore Diameter 2.340 Outside Diameter Seal 0.470 Width

with Heavy Duty Axle

Sedan Style

Std. FAG Global Number 413 2496 100

1.893 Shaft Diameter 2.434 Bore Diameter 2.438 Outside Diameter Seal 0.250 Width

FAG Global Number 413 2765 100

FAG Global Number 413 2582 100

FAG Global Number 413 2869 100

FAG Global Number 413 2597 100

FAG Global Number 413 2766 100

FAG Global Number 413 2763 100

Except Heavy Duty Axle

FAG Global Number 413 2440 100

FAG Global Number 413 2964 100
