Chrysler Pacifica Tire Pressure Monitoring System (TPMS) Sensor Serv Replacement

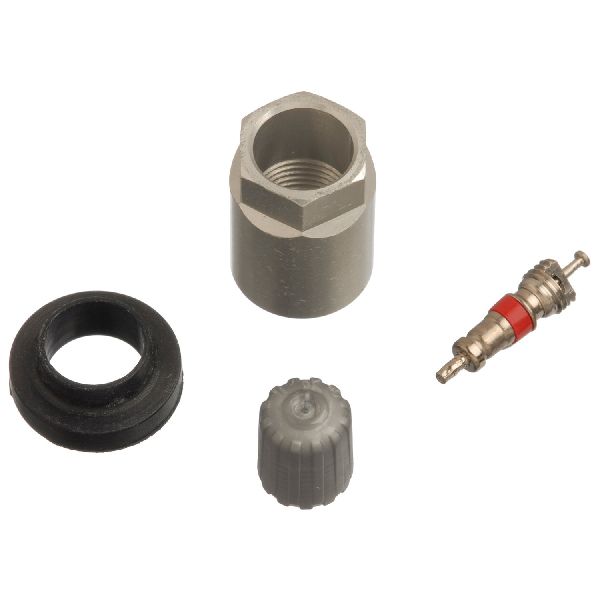

Supersession (ACES) Replaces 20003; 20011; 20015 Mounting Method: Clamp-In components Torque: Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included Quantity Included: 1

Supersession (ACES) Replaces 20003; 20011; 20015 Mounting Method: Clamp-In components Torque: Nut torque = 62in-lbs, 7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included 20007 - TPMS Service Kit Quantity Included: 25

Mounting Method: Snap-in assembly components Torque: Mounting screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included Quantity Included: 1

Mounting Method: Snap-in assembly components Torque: Mounting screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included 20018 - TPMS Service Kit Quantity Included: 25

oe style; w/o Valve 25 Per Box No programming required. Install sensor and follow the OEM factory relearn procedure.

oe style; w/o Valve 4 Per Box No programming required. Install sensor and follow the OEM factory relearn procedure.

Use With Continental Sensor Only OE Manufactured

OE Manufactured

Aluminum Stem Only OE Manufactured

47mm metal valve stem, Silver color, Must be used in combination with service kit, Replacement Stem OE Manufactured

Continental Sensor Only Replacement

with aluminum valve; No programming required. Install sensor and follow the OEM factory relearn procedure.

Metal Clamp-in; 315/314.9 MHz; Multi-application Sensor

Siemens Sensor Only Replacement

Mounting Method: Snap-in assembly components Max Speed Rating: 115 Max Pressure Rating: 80 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included 20043 - TPMS Service Kit Quantity Included: 10

Mounting Method: Snap-in assembly components Max Speed Rating: 115 Max Pressure Rating: 80 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included Quantity Included: 1
