Dodge Caravan Engine Crankshaft Seal Replacement

Front

3.582 Shaft Diameter 4.370 Bore Diameter 4.375 Outside Diameter Seal 0.374 Width

3.583 Shaft Diameter 4.370 Bore Diameter 4.379 Outside Diameter Seal 0.315 Width

Standard Design; Front

FAG Global Number 413 3384 100

Transmission Side

0.19 (in) Width 1.628 (in) Outside Diameter

FAG Global Number 413 3388 100

Viton Type

PTFE Heavy Duty Optional

Viton

FAG Global Number 413 3345 100

When Replacing the OE Aluminum Retainer w/The New Steel Retainer~The Dowel Pins Must Be Removed From The Engine Block~5 New Bolts Must Also Be Ordered-Mopar PN6104179AA To complete Installation

Late Design - When Replacing Early Design Installation Requires (5) 6104179AA Attaching Bolts. Block Dowel Pins Must be Removed and Discarded When Using New One Piece Design.

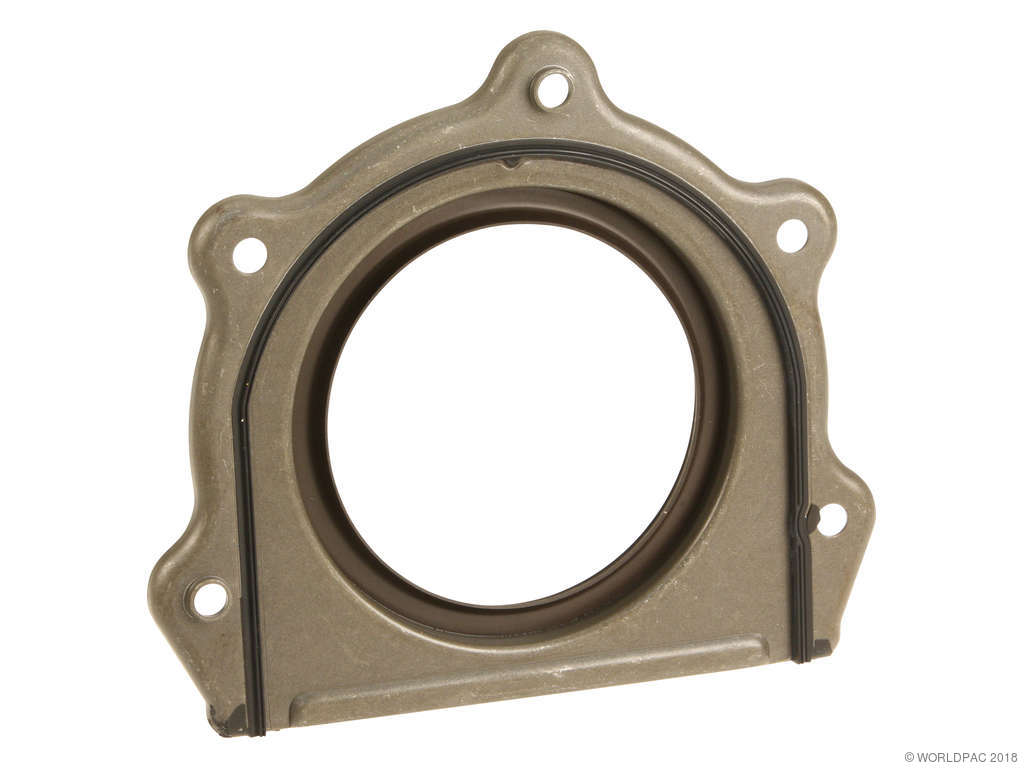

RETAINER AND SEAL, Rear, With Sleeve;68031388AA,06104179AA are needed to replace 04654389AC
