Dodge Durango Tire Pressure Monitoring System (TPMS) Sensor Serv Replacement

Mounting Method: Snap-in assembly components Torque: Mounting screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included Quantity Included: 1

Mounting Method: Snap-in assembly components Torque: Mounting screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included 20018 - TPMS Service Kit Quantity Included: 25

Optional Replacement Metal Valves: RDV036 silver 43mm, RDV037 black 43mm, RDV038 titanium 43mm

Supersession (ACES) Replaces 20016 Mounting Method: Clamp-In components Torque: Nut Torque = 58in-lbs, 6.5Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included Quantity Included: 1

Supersession (ACES) Replaces 20016 Mounting Method: Clamp-In components Torque: Nut Torque = 58in-lbs, 6.5Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included 20013 - TPMS Service Kit Quantity Included: 25

oe style; w/o Valve 25 Per Box No programming required. Install sensor and follow the OEM factory relearn procedure.

Mounting Method: Clamp-In components Torque: Nut torque = 71in-lbs, 8Nm; Valve core torque - 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included Quantity Included: 1

Mounting Method: Clamp-In components Torque: Nut torque = 71in-lbs, 8Nm; Valve core torque - 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included 20030 - TPMS Service Kit Quantity Included: 25

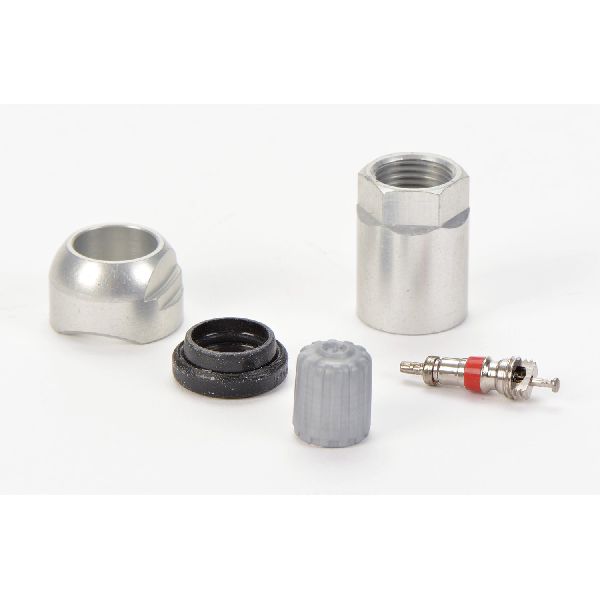

Rubber Snap in Service Kit OE Manufactured

Aluminum Stem Only OE Manufactured

Supersession (ACES) Replaces 20016 Mounting Method: Clamp-In components Torque: Nut Torque = 58in-lbs, 6.5Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included Quantity Included: 1

Metal Clamp-in; 315/314.9 MHz; Multi-application Sensor

Supersession (ACES) Replaces 20047 Mounting Method: Clamp-In components Torque: Nut Torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Included Valve Cap Not Included Valve Stem Not Included Washer Not Included Replaces ~20047~ Quantity Included: 1

Supersession (ACES) Replaces 20047 Mounting Method: Clamp-In components Torque: Nut Torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Included Valve Cap Not Included Valve Stem Not Included Washer Not Included 20049 - TPMS Service Kit Quantity Included: 25
