Buy Dodge Ram 1500 Rack and Pinion Assembly

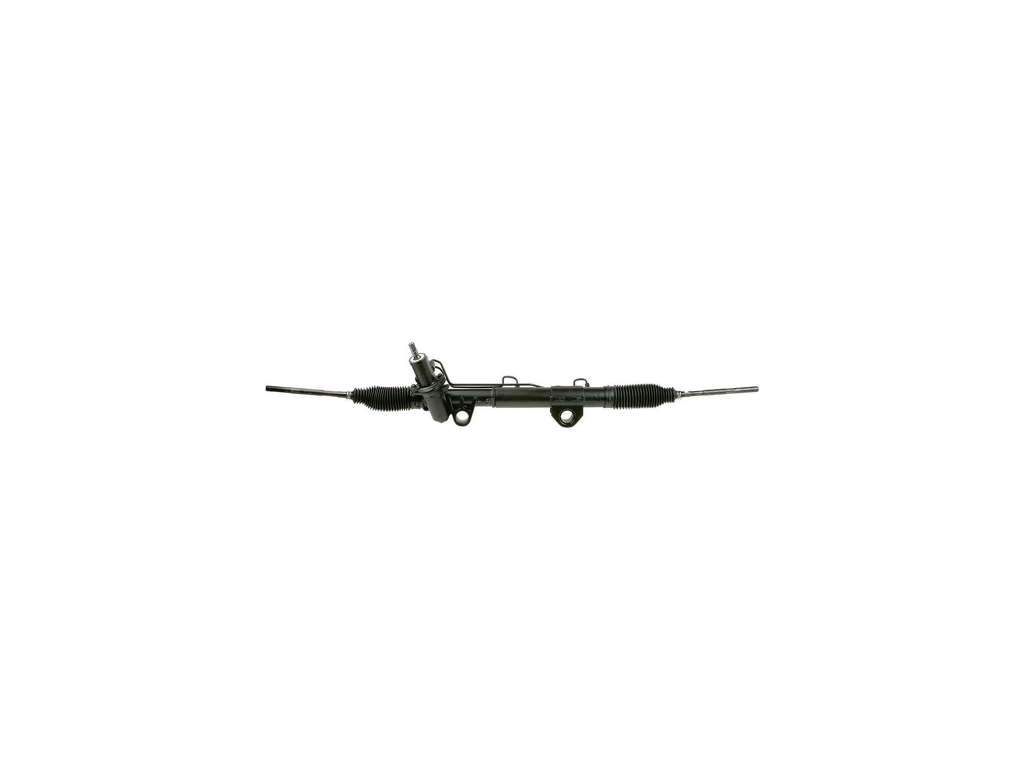

The rack and pinion assembly-also called the steering rack, steering gear, or power-steering rack-sits at the heart of every Dodge Ram 1500's front-end. It turns the wheel's twist into side-to-side motion, links to the inner and outer tie-rods, and, on 2013-up trucks, may house an electric motor that gives power assist. Each fact below is backed by trusted technical bulletins, service manuals, or industry experts.

Rack-and-pinion steering converts the round motion of the steering wheel into straight motion of the rack bar. When you turn, the small pinion gear meshes with the rack teeth, pushing the bar left or right, and the tie-rods drag the front wheels with it HowStuffWorks.
On 2009-2012 trucks, hydraulic pressure from a belt-driven pump supplies assist. Beginning mid-2013, most half-tons switched to electric power steering (EPS), where an on-rack motor provides boost and shaves roughly 150 lbs compared with the earlier pump, hoses, and fluid reservoir Car and Driver.

• 2002-2008 Ram 1500: Hydraulic rack, 235 ft-lbs rack-to-frame bolt torque (RamForum DIY) (RamForum).
• 2009-2012 Ram 1500: Updated hydraulic rack with quicker 16:1 ratio.
• 2013-2024 Ram 1500: EPS unit with integrated motor; mounting bolts tighten to 133 ft-lbs NHTSA recall S19 PDF.

• Steering wander or play-excess side-to-side motion means worn internal bushings MotorTrend.
• Sharp clunk over bumps-inner tie-rod sockets often loosen first Popular Mechanics.
• Pink or red fluid drip from the bellows boot signals a seal leak on hydraulic versions Popular Mechanics.
• Heavy steering effort or "service power-steering" message on the dash can point to EPS motor or sensor failure VehicleHistory.

Hydraulic racks share fluid with the pump. Dodge specifies ATF+4; mixing in Dexron or Mercon can swell seals and cause leaks MotorTrend Techline.
Electric racks have no serviceable fluid but still need clean electrical grounds and updated software; FCA's wiTECH tool clears EPS fault codes NHTSA service procedure.
Tip: Flush hydraulic fluid every 60 k miles and inspect the accordion boots for tears at each oil change HowStuffWorks.

A 2016 safety recall (campaign 16V-167) affected roughly 440 units of the 2015-2016 Ram 1500 built between Jan 22 and Sep 12 2015. Contamination on the EPS control board could create an internal short and disable assist without warning; dealers replaced the rack and updated software NHTSA PDF.

A full rack swap can be done in a driveway with basic tools and a torque wrench:

1. Lock the steering wheel straight and disconnect the battery .
2. Separate outer tie-rods (a pickle fork or OE puller helps).
3. Support the cross-member, unbolt the rack, and slide it out the driver side YouTube tutorial.
4. Match the overall tie-rod length of the new gear to the old one to keep the wheel centered Popular Mechanics.
5. Torque mounting bolts (235 ft-lbs hydraulic / 133 ft-lbs EPS) as noted above.
6. Refill fluid (hydraulic only), bleed by turning lock-to-lock with wheels off the ground YouTube symptoms guide (YouTube).

Any time the steering rack, tie-rods, or steering gear is removed, a front-end alignment is mandatory. Even a slight toe error can shred tires in a few thousand miles Reddit r/mechanics. Professional alignment ensures camber, caster, and toe angles match factory specs; the Ram's total toe spec without air suspension is +0.10° (NHTSA bulletin) (NHTSA).

RepairPal pegs a Ram 1500 rack-and-pinion replacement between $767 and $1,462, with labor accounting for about one-third of the bill RepairPal. Extra costs arise if you need:

• New outer tie-rod ends (they're often fused by rust).
• Fresh ATF+4 fluid and a flush kit.
• Four-wheel alignment (usually $80-$120 depending on region).

Q: What does a rack-and-pinion do?
A: It changes the round motion of the steering wheel into left-and-right motion of the wheels, letting you point the truck where you want HowStuffWorks.

Q: How long should the steering gear last?
A: With clean fluid and intact boots, many racks exceed 150,000 miles before any play or leaks show up RepairPal generic lifespan.

Q: What fluid goes in my 2004 Ram 1500?
A: Chrysler specifies ATF+4 automatic-transmission fluid for the power-steering system on 2002-2008 hydraulically assisted half-tons MotorTrend Techline.

Q: Can I rebuild the rack instead of replacing it?
A: Re-sealing a leaking rack requires specialty tools and a clean bench; most DIYers and even many shops choose a quality remanufactured unit for reliability Reddit r/ram_trucks.

Q: Does EPS feel different from hydraulic assist?
A: Electric racks save fuel and weight but may feel lighter at parking speeds and firmer on the highway because the motor's control module can change assist based on speed SAE paper.

Q: Why is my steering wheel crooked after rack replacement?
A: The tie-rods may not have been centered, or the technician skipped the final alignment step-get the toe set properly to recenter the wheel Popular Mechanics.

Q: Are inner and outer tie-rods sold with the rack?
A: Most replacement assemblies include new inner tie-rods pre-installed but reuse your outer tie-rods; inspect and replace outers if the boots are torn or joints loose Popular Mechanics.

Q: Is special programming needed after installing an EPS rack?
A: Yes. The control module must learn center position; a scan tool like wiTECH can clear codes and run the steering angle calibration NHTSA procedure.

Q: Do larger tires strain the steering gear?
A: Big off-road tires raise steering load; heavy-duty aftermarket racks or additional braces help prevent premature wear MotorTrend.

Q: Is alignment still needed if I marked the tie-rods?
A: Yes-marking gets you close, but toe, camber, and caster must be measured with alignment equipment for proper tire life Popular Mechanics.

Q: Where can I check for open steering recalls?
A: Visit the official NHTSA recall lookup and enter your truck's 17-digit VIN. This free tool lists all outstanding safety campaigns on steering and other systems [NHTSA portal] (NHTSA).
