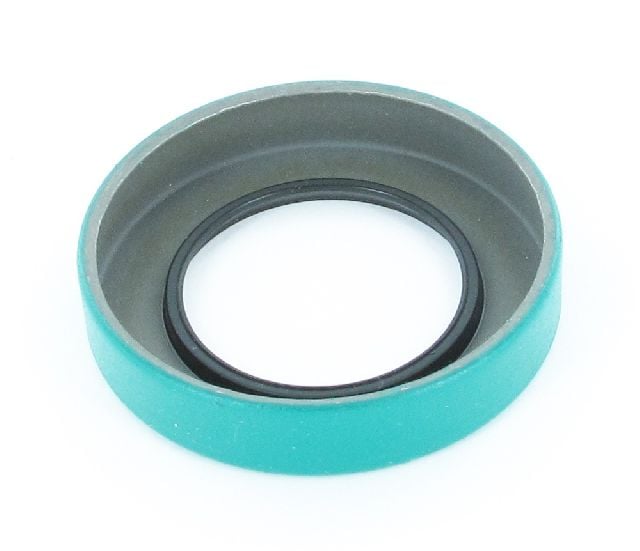

Dodge W250 Axle Spindle Seal Replacement

(Dana/Spicer 60F Axle)

Spicer 60 axle FAG Global Number 413 3628 100

3.251 in. Bore Diameter 0.375 in. Width 2.500 in. Shaft Diameter 3.256 in. Outside Diameter Seal ; Spicer 44 Axle

Spicer 44 axle FAG Global Number 413 3627 100

1.313 Shaft Diameter 1.625 Bore Diameter 0.156 Width ; Spicer 44 Axle

with Spicer 44-FBJ Axle(s) with 8.5 (in) Ring Gear

Spicer/Dana 44 Axle FAG Global Number 413 3230 100

2.500 Shaft Diameter; V-Ring Spicer 60 Axle

Dana/Spicer 44F-BJ Axle

2.244 Shaft Diameter 0.469 Width ; Spicer 44 Axle

1.500 Shaft Diameter 1.875 Bore Diameter 0.188 Width ; Spicer 60 Axle

0.750 Shaft Diameter 1.301 Bore Diameter 1.305 Outside Diameter Seal 0.250 Width ; Saginaw

with Spicer 60-F Axle(s) with 9.75 (in) Ring Gear

with Spicer 60-F Axle(s) with 9.75 (in) Ring Gear

with Spicer 44-FBJ Axle(s) with 8.5 (in) Ring Gear

Spicer 60 axle 4500lb Axle Weight FAG Global Number 413 3593 100 V-Ring Type

(Dana/Spicer 60F Axle)

Spicer 44 axle FAG Global Number 413 3163 100

(Dana/Spicer 60F Axle)

Dana/Spicer 44F-BJ Axle

Spicer 60 axle FAG Global Number 413 2581 100

Dana 50/60 Dana 60 Front
