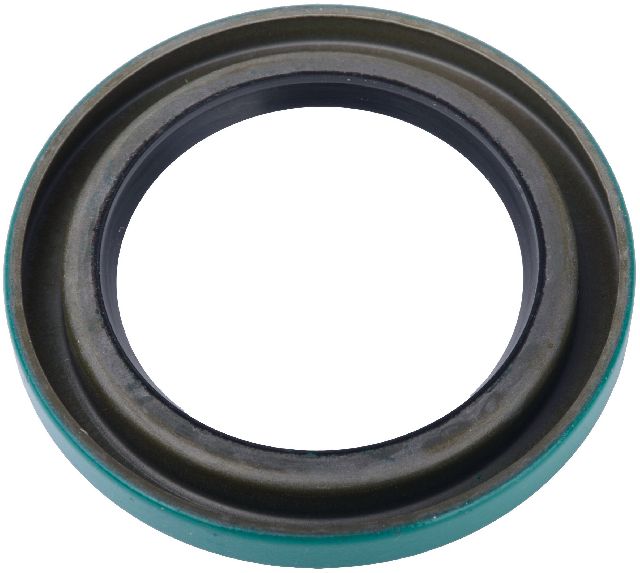

Ford Country Squire Wheel Seal Replacement

9" Ring Gear

1.399 Shaft Diameter 2.292 Bore Diameter 2.296 Outside Diameter Seal 0.469 Width

1.938 Shaft Diameter 2.502 Bore Diameter 2.506 Outside Diameter Seal 0.281 Width

9" Ring Gear Heavy Duty Axle

FAG Global Number 413 2468 100 1.399" Shaft

FAG Global Number 413 2977 100

1.500 Shaft Diameter 2.502 Bore Diameter 0.313 Width

with 9 (in) Ring Gear with Heavy Duty Axle

WDC, WDL, WDT, WFG Axle

2.506" O.D. FAG Global Number 413 2577 100 2.506" O.D.

1.375 Shaft Diameter 2.374 Bore Diameter 2.378 Outside Diameter Seal 0.313 Width

WDC CB Axle

1.938 Shaft Diameter 2.578 Bore Diameter 2.582 Outside Diameter Seal 0.294 Width

1.688 Shaft Diameter 2.502 Bore Diameter 2.506 Outside Diameter Seal 0.281 Width ; Replacement Hubs

with 28 Splines with 9 (in) Ring Gear

FAG Global Number 413 2419 100 2.378" O.D.

Front Disc, Rear Disc FAG Global Number 413 2978 100

Replacement Hubs FAG Global Number 413 2739 100

with Light Duty Brakes

1.688 Shaft Diameter 2.623 Bore Diameter 2.627 Outside Diameter Seal 0.375 Width ; w/o Replacement Hubs

Roller Brg. Type,w/o WER Axle FAG Global Number 413 2946 100

with 9 (in) Ring Gear with Heavy Duty Axle

Heavy Duty Axle - Non WER Axle

w/o Replacement Hubs FAG Global Number 413 2743 100

with 24 Splines with 7.25 (in) Ring Gear

with 7.25 (in) Ring Gear 2.035 (in) Outside Diameter

FAG Global Number 413 2373 100

with 24 Splines with 7.25 (in) Ring Gear 2.065 (in) Outside Diameter

FAG Global Number 413 2369 100
