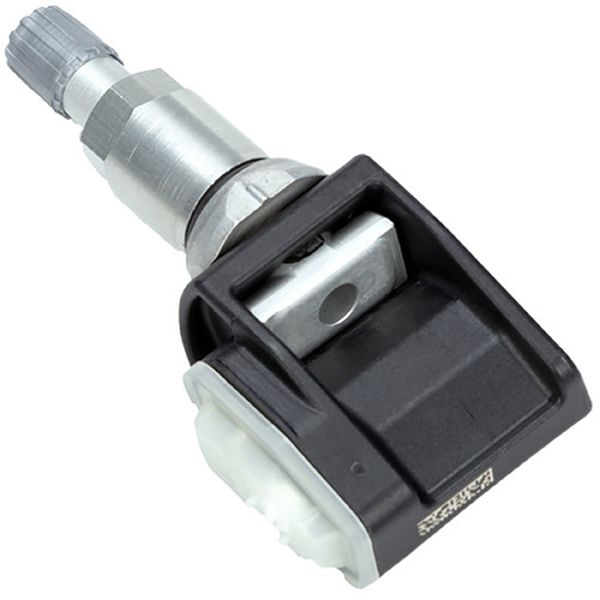

Ford E-150 Tire Pressure Monitoring System (TPMS) Sensor Replacement

No Programming Required. Install and Follow Mfr. Relearn Procedure. Includes Straight-In Screw Rubber Valve Includes Replacement Rubber Valve RDV043 Optional Replacement Metal Valves: RDV036 Silver 43mm, RDV037 Black 43mm, RDV038 Titanium 43mm Full Performance Validation- Every Application Validated To Function Exactly As The OE Sensor

with Aluminum Type Valve

with Rubber Type Valve

Supersession (ACES) Replaces 28390 Mounting Method: Clamp-in Torque: Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Frequency: 315.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Aluminum Valve Color: Silver Valve Stem Not Included Washer Not Included Includes 1 TPMS sensor w/ nut Replaces ~28395~ Quantity Included: 1

Supersession (ACES) Replaces 28380 Mounting Method: Clamp-in Torque: Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Frequency: 315.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Not Included Valve Core Material: Nickel Plated Valve Material: Aluminum Valve Color: Silver Valve Stem Not Included Washer Not Included Includes 1 TPMS sensor w/ nut Replaces ~28385, 28390~ Quantity Included: 1

Supersession (ACES) Replaces 20283 Mounting Method: Snap-in Torque: Screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Frequency: 315.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Rubber Valve Color: Black Valve Stem Included Washer Not Included Includes 1 TPMS sensor with valve Quantity Included: 1

Metal Clamp-in Stem; 315 MHz; Multi-application Sensor Relearn procedure may need to be performed upon installation of unit. Please refer to the service manual for vehicle specific instructions. Next Generation REDI-Sensor Replacement

Rubber Snap-in Stem; 315 MHz; Multi-application Sensor Relearn procedure may need to be performed upon installation of unit. Please refer to the service manual for vehicle specific instructions. Next Generation REDI-Sensor Replacement

Replacement Fixed Angle 43mm Metal Valves: RDV036 Silver, RDV037 Black, RDV038 Titanium. Replacement Rubber Valve: RDV043. OE Quality (must be programmed prior to install) Updateable, Reprogrammable and Copy Clone Capable

with steel wheels with aluminum valve ; OE Style/ID Clone-able 315 Mhz Sensor Tire Pressure Monitoring System OE Design Sensor

heavy duty Banded sensor ; w/ Alloy Wheels OE Style/ID Clone-able 315 Mhz Sensor Tire Pressure Monitoring System OE Design Sensor

with steel wheels; w/ Rubber Valve OE Style/ID Clone-able 315 Mhz Sensor Tire Pressure Monitoring System OE Design Sensor
