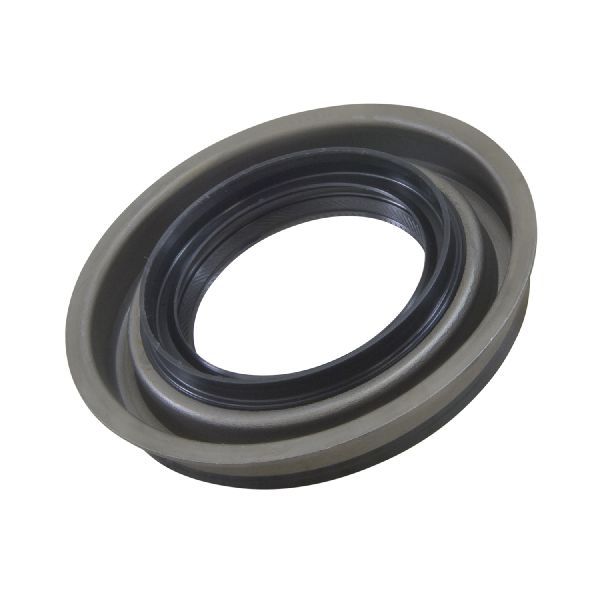

Ford F-150 Differential Pinion Seal Replacement

1.813 Shaft Diameter 2.776 Bore Diameter 2.781 Outside Diameter Seal 0.432 Width with 8.8 Ring Gear

8.8 in. Reverse; 7.5 in. 10 Bolt Or Rear Ford 8.8 in.; Front Or Rear

1.813 Shaft Diameter 3.001 Bore Diameter 3.006 Outside Diameter Seal 0.563 Width ; WDM, WFE 3,300, 3,750 lb Axles Exc. WFE-F, G, H, J, K, L, S; WDM-AM, AN

1.813 Shaft Diameter 3.092 Bore Diameter 3.096 Outside Diameter Seal 0.469 Width with 10.5 Ring Gear

3 in. O.D. Ford 9 in.; 3 in. O.D.

FAG Global Number 413 2865 100

1.813 Shaft Diameter 3.092 Bore Diameter 3.096 Outside Diameter Seal 0.416 Width with 8.8 Ring Gear ; 9.75'' Ring Gear w/ Base Payload Package

1.813 Shaft Diameter 2.777 Bore Diameter 2.781 Outside Diameter Seal 0.608 Width

10.25 in. 12 Bolt; 10.5 in. 14 Bolt Ford 9.75 in.; Rear

Replacement Dana 44; Pinion seal; 3.165 in. x 1.552 in. x 0.53 in.

1.552 Shaft Diameter 3.160 Bore Diameter 3.165 Outside Diameter Seal 0.665 Width ; 2900, 3300, 3750 lb. Spicer 44 Axles

with 9.75 (in) Ring Gear with Visteon Axle

9.00" Ring Gear 2800,3750lb Axle Weight FAG Global Number 413 2934 100

with 9 (in) Ring Gear with Ford H/D Axle

10.50" Ring Gear FAG Global Number 413 2852 100

9 in. Ring Gear - Heavy Duty Axle

8 Inch Ring Gear

with 8.8 (in) Ring Gear with Visteon Axle Independent Front Suspension

Spicer 44 Axles 2900,3300,3750lb Axle Weight FAG Global Number 413 2633 100

Nitrile with 8.5 (in) Ring Gear with Spicer 44-3 Axle

with 0.530in Width with Dana 44 Axle

FAG Global Number 413 2868 100

9.75" Ring Gear w/ Base Payload Package FAG Global Number 413 6392 100

Dana/Spicer 44 Axle

Limited Slip Differential

8.80" Ring Gear FAG Global Number 413 2578 100

OEM Ford 10.25 in.; OEM

10.5 in. 14 Bolt Ford 10.5 in.

Viton Type with 8.5 (in) Ring Gear with Spicer 44-3 Axle
