Ford F-150 Lightning Tire Pressure Monitoring System (TPMS) Sensor Replacement

Supersession (ACES) Replaces 20280; 20282 Mounting Method: Snap-in Torque: Screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Frequency: 315.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Rubber Valve Color: Black Valve Stem Included Washer Not Included Includes 1 TPMS sensor with valve Quantity Included: 1

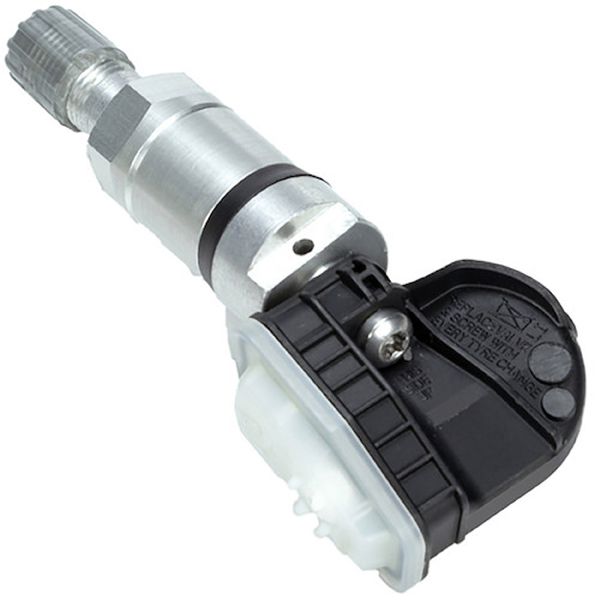

Mounting Method: Clamp-in Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Frequency: 433.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Aluminum Valve Color: Silver Valve Stem Not Included Washer Not Included Includes 1 TPMS sensor w/ nut Quantity Included: 1

Metal Clamp-in Stem; 315 MHz; Multi-application Sensor Relearn procedure may need to be performed upon installation of unit. Please refer to the service manual for vehicle specific instructions. Next Generation REDI-Sensor Replacement

Rubber Snap-in Stem; 315 MHz; Multi-application Sensor Relearn procedure may need to be performed upon installation of unit. Please refer to the service manual for vehicle specific instructions. Next Generation REDI-Sensor Replacement

Replacement Fixed Angle 43mm Metal Valves: RDV036 Silver, RDV037 Black, RDV038 Titanium. Replacement Rubber Valve: RDV043. OE Quality (must be programmed prior to install) Updateable, Reprogrammable and Copy Clone Capable
