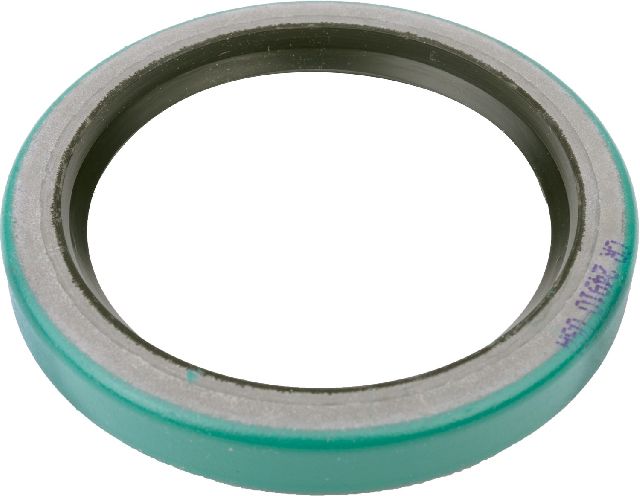

Ford F-250 Manual Transmission Seal Replacement

1.500 Shaft Diameter 2.377 Bore Diameter 2.381 Outside Diameter Seal 0.453 Width

FAG Global Number 413 2569 100 1.500" Shaft 2.381" O.D.

1.575 Shaft Diameter 2.047 Bore Diameter 2.054 Outside Diameter Seal 0.276 Width

1.375 Shaft Diameter 1.983 Bore Diameter 1.987 Outside Diameter Seal 0.313 Width

New Process Transmission FAG Global Number 413 2392 100

1.125 Shaft Diameter 1.624 Bore Diameter 1.628 Outside Diameter Seal 0.250 Width

1.250 Shaft Diameter 1.752 Bore Diameter 1.756 Outside Diameter Seal 0.250 Width

1.125 Shaft Diameter 1.624 Bore Diameter 1.628 Outside Diameter Seal 0.250 Width ; O/D Trans

1.500 Shaft Diameter 2.374 Bore Diameter 2.378 Outside Diameter Seal 0.313 Width

1.969 Shaft Diameter 2.559 Bore Diameter 2.565 Outside Diameter Seal 0.315 Width

1.688 Shaft Diameter 2.502 Bore Diameter 2.506 Outside Diameter Seal 1.334 Width

1.563 Shaft Diameter 2.875 Bore Diameter 2.879 Outside Diameter Seal 0.313 Width

Ford Transmission FAG Global Number 413 2258 100 1.125" Shaft

1.500 Shaft Diameter 2.372 Bore Diameter 2.376 Outside Diameter Seal 0.375 Width

Toyo Kogyo (Mazda) Transmission FAG Global Number 413 2403 100 52.35mm O.D.

Warner Transmission FAG Global Number 413 2309 100 1.250" Shaft

Overdrive Ford Transmission FAG Global Number 413 2257 100

"H" Shape

Ford Transmission FAG Global Number 413 2564 100 1.500" Shaft

ZF Transmission FAG Global Number 413 2999 100

Warner Transmission FAG Global Number 413 2631 100

Ford Transmission FAG Global Number 413 2561 100 1.754" O.D.

FAG Global Number 413 3110 100

New Process Transmission FAG Global Number 413 3109 100

ZF Transmission FAG Global Number 413 2451 100

2.500 Shaft Diameter 3.251 Bore Diameter 3.256 Outside Diameter Seal 0.438 Width

2.125 Shaft Diameter 3.061 Bore Diameter 3.066 Outside Diameter Seal 0.500 Width

1.496 Shaft Diameter 2.362 Bore Diameter 2.371 Outside Diameter Seal 0.433 Width

Mazda Transmission FAG Global Number 413 2550 100
