It is for vehicles with a 4.9L 6-cylinder engine. It features a serpentine pulley.
Condition: Excellent (A)
Direct Replacement
4 Hole Aftermarket Billet Aluminum Spacer; For PRW FluidGel(TM) Dampers; Black Anodized
Direct Replacement
w/Single Serpentine Belt
4 Bolt Hub; W/ 28 oz Weight Part Type: Solid Outer Diameter: 6.40 in ATP Number: 102017 ATP Availability: Available to Order Pioneer Number: DA-3513 Pioneer Availability: Available to Order Pioneer Supersession: Replaces DA-7003
Description: 4 Bolt Hub; W/ 28 oz Weight Part Type: Solid Outer Diameter: 6.40 in Supersession: Replaces DA-7003
For Vehicles W/ Weighted Spacer Behind Balancer Part Type: Solid Outer Diameter: 6.50 in ATP Number: 102011 ATP Availability: Available to Order Pioneer Number: DA-4601 Pioneer Availability: Available to Order
Description: For Vehicles W/ Weighted Spacer Behind Balancer Part Type: Solid Outer Diameter: 6.50 in
Direct Replacement
4 Bolt Hub; W/ 50 oz Weight Part Type: Solid Outer Diameter: 6.41 in ATP Number: 102014 ATP Availability: Available to Order ATP Supersession: Replaces 102012 Pioneer Number: DA-3021 Pioneer Availability: Available to Order Pioneer Supersession: Replaces DA-3023
Description: 4 Bolt Hub; W/ 50 oz Weight Part Type: Solid Outer Diameter: 6.41 in Supersession: Replaces DA-3023
Direct Replacement
Description: Groove Qty. 6 Part Type: Serpentine Outer Diameter: 6.91 in
Groove Qty. 6 Part Type: Serpentine Outer Diameter: 6.571 in ATP Number: 102015 ATP Availability: Available to Order Pioneer Number: DA-3006 Pioneer Availability: Available to Order
Description: 4 Bolt Hub; W/ 28 oz Weight Part Type: Solid Outer Diameter: 6.54 in Supersession: Replaces DA-7007

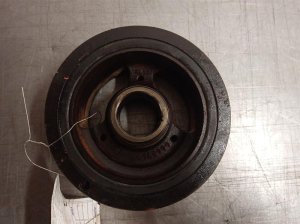

It fits vehicles with the 7.3L turbo diesel engine. It features 8 ribs.
Condition: Excellent (A)
Ring Width 1.58 In.
Description: 4 Bolt Hub; W/ 28 oz Weight Part Type: Solid Outer Diameter: 6.51 in
Direct Replacement
Supersession: Renumbered from DA-3512-HD
Direct Replacement
6.50 in. OD; 0 Balance; Black
Triple Groove Pulley, w/Small Diameter Front Pulley
Street Version
6.40 in. OD; 28 oz. External Balance; Lightweight; Black
SFI Spec 18.1; Steel/Elastomer; w/OEM 3/16 in. Standard Keyway Plus 1/4 in. Keyway [180 Deg. From OEM]; Internal Balance; 6.70 in. OD; Black
6.40 in. OD; 50 Oz.; Lightweight; Black
7.25 in. OD; Neutral Balance; 4 Bolt Pulley; Keyway Matching May Be Required For OEM/Aftermarket Cranks; Black
6.54 in. OD; 28 Oz; Removable Hub; External Balance; Pulley Spacers May Be Required 1975-Up Engines; Black
6.54 in. OD; Zero Balance For Aftermarket Cranks; Internal Balance; Black
Bore Dia. Min/Max: 1.374 / 1.375 Degree Marking Range: 2 degree increments, 50 BTDC to 10 ATDC Degree Markings: Yes Engine Balance: External (28 oz) Finish: No Finish Keyway: Single Length: 3.33 Material: Steel Mounting Hardware Incl.: No O.D.: 6-1/4" (6.25) Safety Rating: Non SFI Approval WT. in lbs.()=Rotating weight: 11.0 (7.8 Rwt) 4 bolt standard Ford pulley bolt pattern. Externally balanced-28oz. Not recommended for 302HO Pulley spacer PN 717656 may be required Recommend painting with high temperature engine paint to prevent rust.
SFI Spec 18.1; Steel/Elastomer; Zero Internal Balance; 6.50 in. OD; Black
Racing Version
Description: 4 Bolt Hub; W/ 28 oz Weight Part Type: Solid Outer Diameter: 6.50 in w/28oz. Counter Weight Hubs Street Performance Balancer
Bore Dia. Min/Max: 1.374 / 1.375 Degree Marking Range: 2 degree increments, 50 BTDC to 10 ATDC Degree Markings: Yes Engine Balance: Internal Finish: Black Zinc Keyway: Single Length: 3.34 Material: Steel Mounting Hardware Incl.: No O.D.: 6-5/8" (6.625) Pulley Bolt Pattern: Pulley spacers may be required on some 1975-later engines. Custom pulleys may be Safety Rating: SFI 18.1 WT. in lbs.()=Rotating weight: 11.1 (7.4 Rwt) 4 bolt standard Ford pulley bolt pattern. Internally balanced. Replaces 28oz externally balanced. Pulley spacer PN 717656 may be required
Bore Dia. Min/Max: 1.374 / 1.375 Degree Marking Range: 2 degree increments, 50 BTDC to 10 ATDC Degree Markings: Yes Engine Balance: External (28 oz) Finish: Black Zinc Keyway: Single Length: 3.34 Material: Steel Mounting Hardware Incl.: No O.D.: 6-5/8" (6.625) Safety Rating: SFI 18.1 WT. in lbs.()=Rotating weight: 12.5 (8.3 Rwt) 4 bolt standard Ford pulley bolt pattern. Externally balanced-28oz. Pulley spacer PN 717656 may be required Recommend painting with high temperature engine paint to prevent rust.
Part Type: Solid Outer Diameter: 6.98 in
Description: 4 Bolts Part Type: Solid Outer Diameter: 6.62 in
Description: Neutral Balance Part Type: Solid Outer Diameter: 5.79 in
Bore Dia. Min/Max: 1.374 / 1.375 Degree Marking Range: 50 degree BTDC to 10 degree ATDC. Additional timing/degree marks at 90, 180 and Degree Markings: Yes Engine Balance: Internal Finish: Black Zinc Keyway: Single Length: 2.385 Material: Steel Mounting Hardware Incl.: No O.D.: 7-1/4" (7.250) Safety Rating: SFI 18.1 WT. in lbs.()=Rotating weight: 12.2 (8.2 Rwt) 385-SERIES BIG BLOCK
Description: 4 Bolt Hub; W/ 28 oz Weight Part Type: Solid Outer Diameter: 6.36 in
Bore Dia. Min/Max: 1.7375 / 1.7385 Degree Marking Range: 1 timing mark Degree Markings: Yes Engine Balance: External Finish: Black Zinc Keyway: Single Length: 3.967 Material: Steel Mounting Hardware Incl.: No. Fan spacer included. O.D.: 8" (8.000) Safety Rating: SFI 18.1 WT. in lbs.()=Rotating weight: 22.2 (14.8 Rwt)
Description: W/ 50 oz Weight Part Type: Solid Outer Diameter: 6.36 in
Description: 4-Bolts Part Type: Solid Outer Diameter: 6.76 in
Browse our selection of quality engine harmonic balancer parts designed specifically for your Ford F-350. We carry options across multiple trim levels, body styles, and engine configurations to ensure a perfect fit.
Base · Custom · Eddie Bauer · Northland · Ranger · Ranger Lariat · Ranger XLT · Special · XL · XLS · XLT · XLT Lariat
Cab & Chassis · Cab & Chassis - Crew Cab · Crew Cab Pickup · Extended Cab Pickup · Standard Cab Pickup · Stripped Chassis
-- -L · L6 3.6L · L6 3.9L · L6 4.3L · L6 4.9L · V8 4.4L · V8 4.8L · V8 5.0L · V8 5.4L · V8 5.8L · V8 5.9L · V8 6.2L · V8 6.4L · V8 6.6L · V8 6.9L · V8 7.3L · V8 7.5L
Automatic · Manual · U/K
