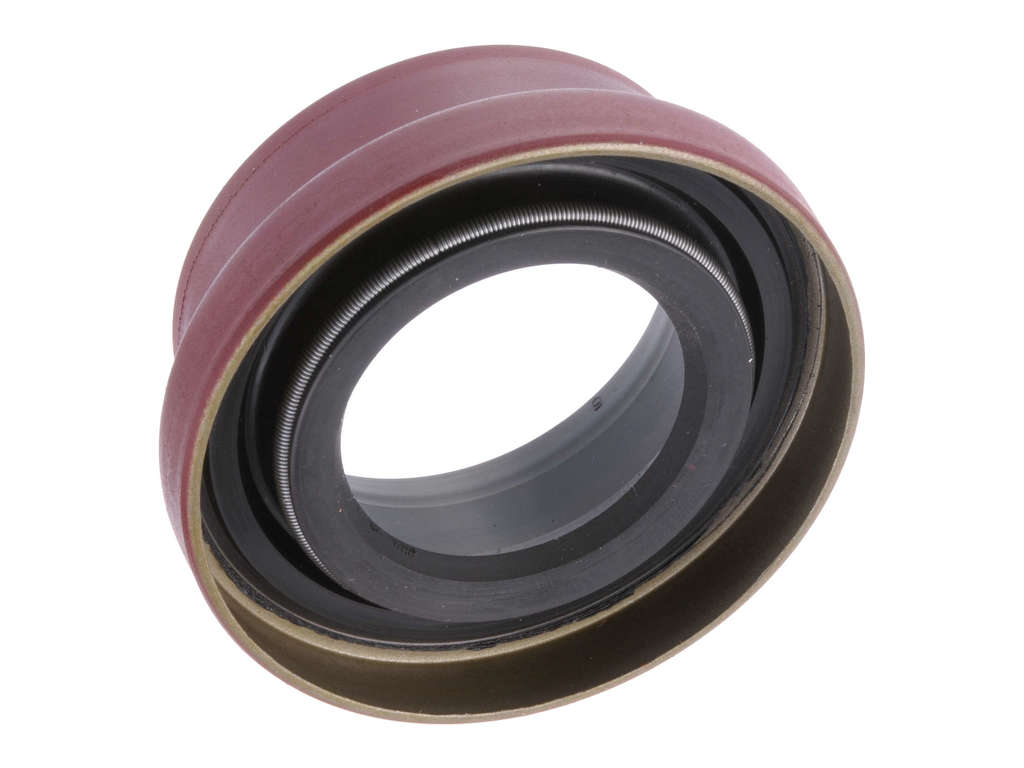

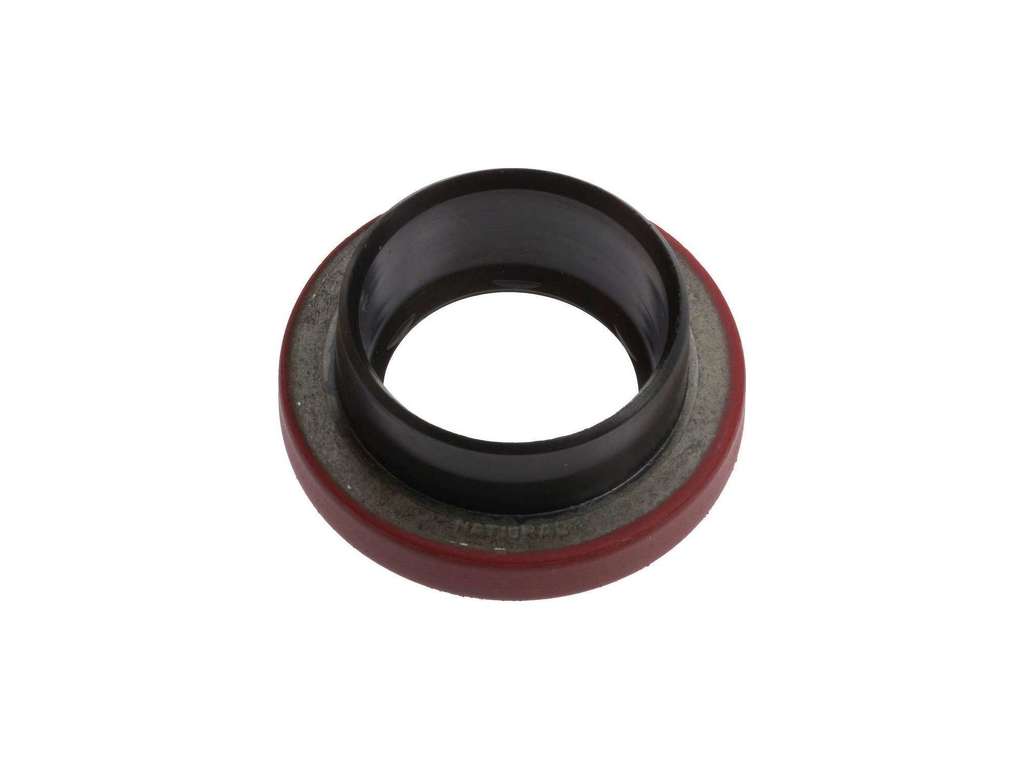

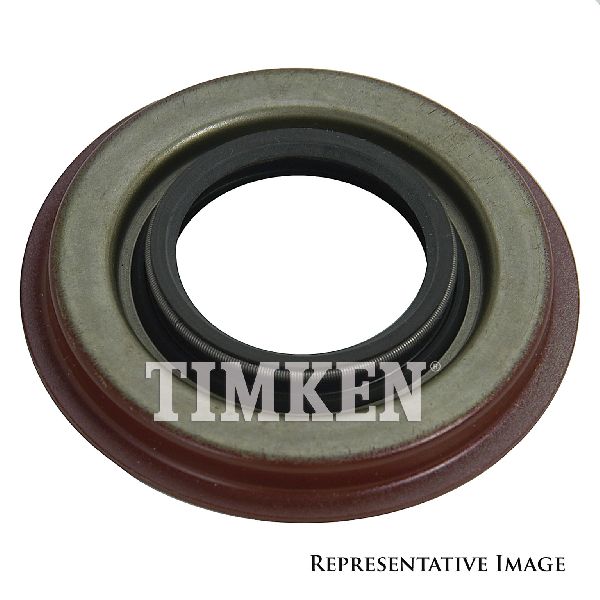

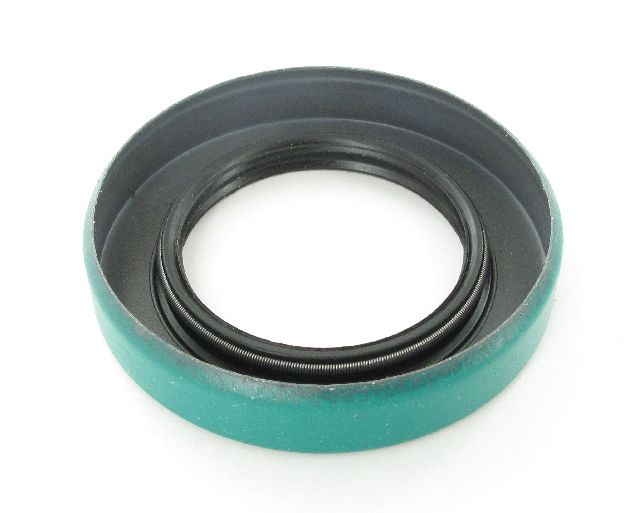

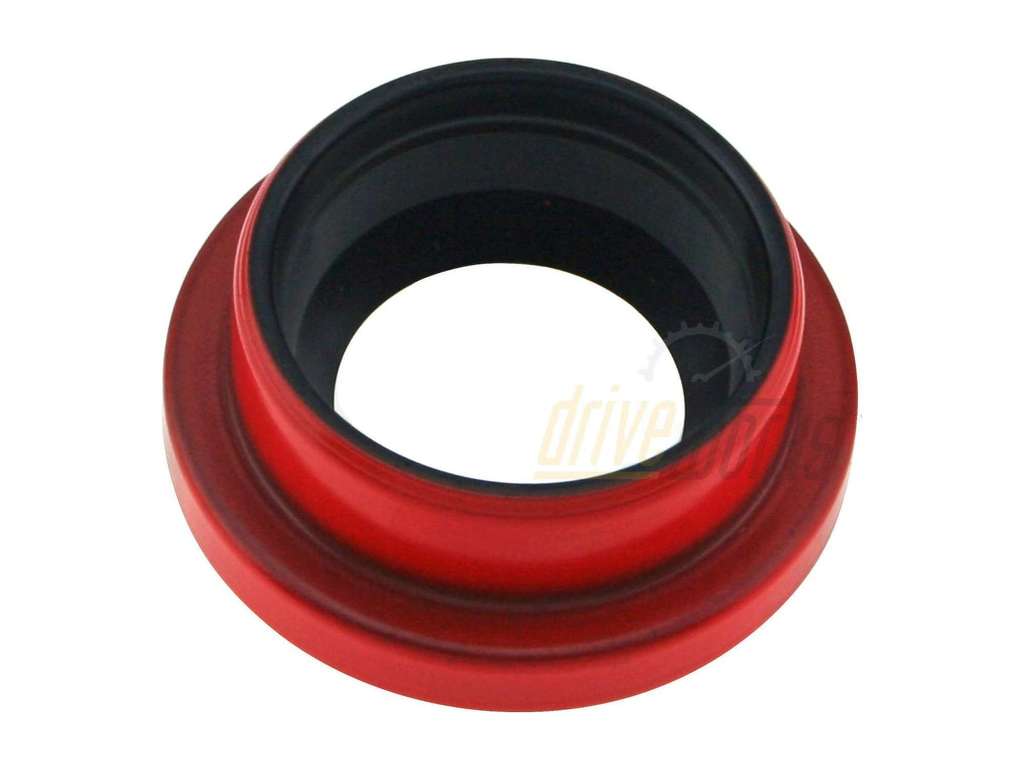

GMC Jimmy Drive Axle Shaft Seal Replacement

Intermediate Shaft

Axle Code K - Mfg. In Canada

1.248 Shaft Diameter 2.044 Bore Diameter 2.050 Outside Diameter Seal 0.378 Width

1.250 Shaft Diameter 2.402 Bore Diameter 2.407 Outside Diameter Seal 0.382 Width 1st Design

FAG Global Number 413 2326 100

with 7.25 (in) Ring Gear with GMC Axle Carrier Unit Independent

1.574 Shaft Diameter 2.716 Bore Diameter 2.720 Outside Diameter Seal 0.531 Width

1st Design FAG Global Number 413 2303 100

8.25 in. Ring Gear Flange Design

FAG Global Number 413 2607 100

with 7.25 (in) Ring Gear with AAM Axle Independent Front Suspension

w/o Heavy Duty FAG Global Number 413 2332 100

Spicer Axle FAG Global Number 413 2365 100 1.313" I.D.

with 8.5 (in) Ring Gear with Spicer 44-5F Axle
