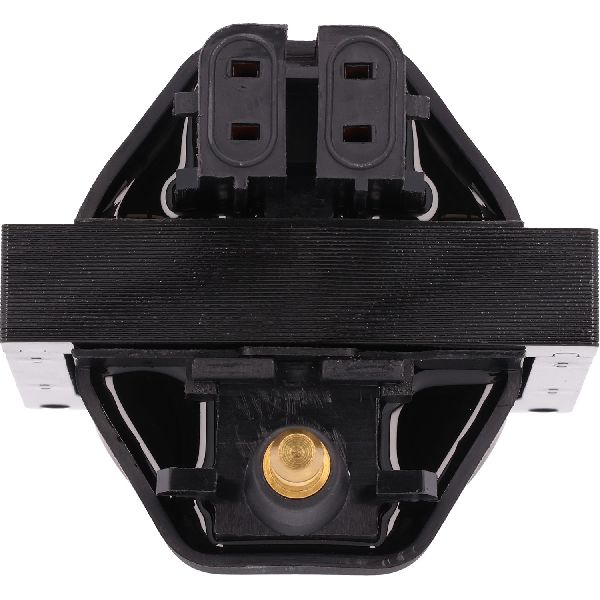

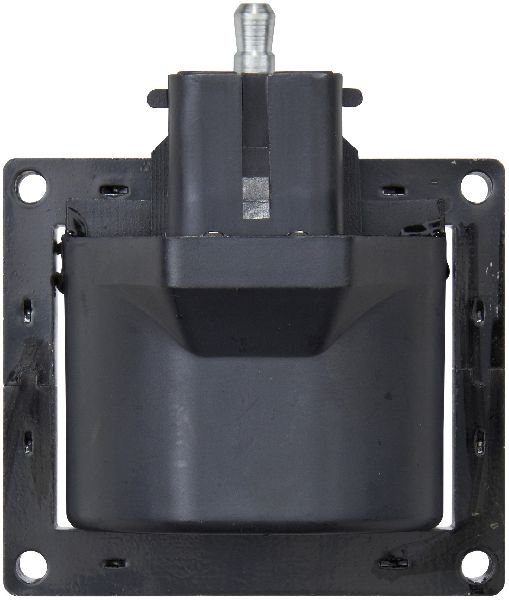

GMC Jimmy Ignition Coil Replacement

Pack Horizontal Mount

Horizontal Towers

Pack

Pack

Horizontal Towers

w/ Points Ignition

Pack

Pack

Blue Streak Premium Quality

Blue Streak Premium Quality

Pack

Blue Streak Premium Quality

4-Pin Connector - Ignition Coil to Distributor - Bolted - with Attachment Material

with Federal Emissions System Includes Hardware

Includes Hardware

Includes Hardware

High Performance; w/MSD 6 Series; 8 mH Inductance; 45000 Max Volts; 140mA Peak Current; 350 uS Spark Duration; 100:1 Turns Ratio; Red;CARB E.O. D-40-37 0.7 OHMs Primary Resistance/4.5K OHMs Secondary Resistance

Direct Replacement; Red/Black;OEM Replacement

Fits w/HEI Remote Mount Systems; Primary Resist 0.2 Ohms; Secondary 6.7 k Ohms; Turns Ratio 92:1; Max. Voltage 48000 Volts; Yellow;OEM Replacement

Direct Replacement; 5.6 mH Inductance; 44000 Max Voltage; 220 ma Peak Current; 300 uS Spark Duration; 100:1 Turns Ratio; Red; Single;CARB E.O. D-40-37 0.68 ohms Primary Resistance/4.8k ohms Secondary Resistance~GM Dual Connector Coil Use PN[8876] Harness For Direct Plug-in

Entry Level Spark Output w/Single Connector; 3.6 mH Inductance; 40000 Max Volts; 80:1 Turns Ratio; Red/Black;CARB E.O. D-40-37 0.5 ohms Primary Resistance/6.5k ohms Secondary Resistance

HEI In-Cap Design; Primary Resist 0.5 Ohms; Secondary 8.6 k Ohms; Turn Ratio 80:1; Max Voltage 45000V; Red And Yellow Primary Wire; Gray;CARB E.O. D-221-6

3.5 mH Inductance; 42000 Max Voltage; 200mA Peak Current; 0.31 ohms Primary/9.2K ohms Secondary Resistance; 200 uS Spark Duration; 70:1 Turns Ratio; Black;CARB E.O. D-40-37 Recommend To Use w/HEAT HEI Module PN[83647]

Primary Resist 0.7 Ohms; Secondary 11.8 k Ohms; Turn Ratio 70:1; Max Voltage 45000V; Yellow

HEI In-Cap Design; Primary Resist 0.5 Ohms; Secondary 8.6 k Ohms; Turn Ratio 80:1; Max Voltage 45000V; Red And White Primary Wire;CARB E.O. D-221-6
