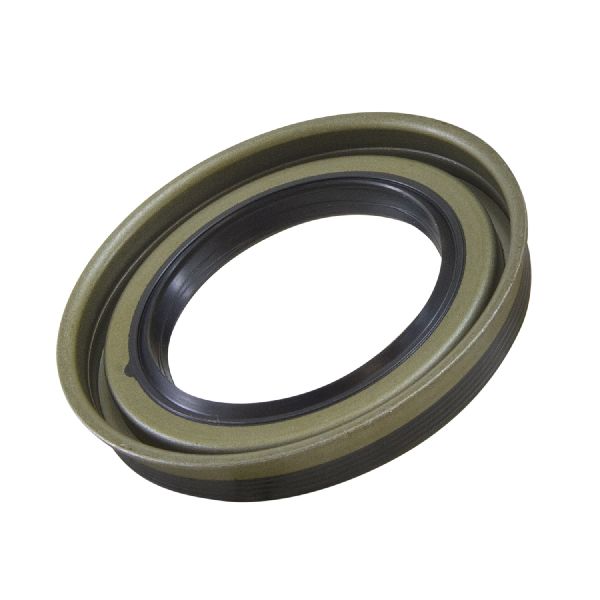

GMC K2500 Differential Pinion Seal Replacement

with 8.5 (in) Ring Gear with GMC Axle

1.739 Shaft Diameter 2.812 Bore Diameter 2.816 Outside Diameter Seal 0.594 Width with 8.875 Ring Gear ; Speedi-Sleeve # 99170

8.5 in. 10 Bolt GM 8.5 in.

1.940 Shaft Diameter 2.909 Bore Diameter 2.914 Outside Diameter Seal 0.516 Width with 9.5 Ring Gear 1st Design

IFS GM 8.25 in.; IFS

Replacement Dana 44; Standard Rotation; Pinion seal; 3.165 in. x 1.552 in. x 0.53 in.

9.2 in./9.25 in.; IFS GM 9.25 in.; IFS

1.552 Shaft Diameter 3.160 Bore Diameter 3.165 Outside Diameter Seal 0.665 Width ; w/ Spicer Axle

10.5 in. 14 Bolt GM 10.5 in.; 14 Bolt Cover; Rear

2.201 Shaft Diameter 3.519 Bore Diameter 3.523 Outside Diameter Seal 0.591 Width with 10.5 Ring Gear

8.88 in. Ring Gear - H031, H035 Axle

1st Design 9.50" Ring Gear FAG Global Number 413 2987 100

with 9.5 (in) Ring Gear with GMC Axle

1.940 Shaft Diameter 2.900 Bore Diameter 2.910 Outside Diameter Seal 0.421 Width with 9.25 Ring Gear

w/Spicer Axle FAG Global Number 413 2633 100

Nitrile with 8.5 (in) Ring Gear with Spicer 44-8F Axle

with 8.25 (in) Ring Gear with AAM Axle Independent Front Suspension

1.938 Shaft Diameter 2.813 Bore Diameter 2.817 Outside Diameter Seal 0.500 Width with 8.5 Ring Gear

with 0.530in Width with Dana 44 Axle

w/Triple Lip GM 10.5 in; 14 Bolt Cover; w/Triple Lip

9.5" Ring Gear

with 10.5 (in) Ring Gear with GMC Axle

2.324 Shaft Diameter 3.541 Bore Diameter 3.546 Outside Diameter Seal 0.591 Width with 10.5 Ring Gear

2.088 Shaft Diameter 2.911 Bore Diameter 2.915 Outside Diameter Seal 0.500 Width with 9.5 Ring Gear 2nd Design

9.5 in. 14 Bolt GM 9.5 in.; 14 bolt cover; Rear

with 8.25 (in) Ring Gear with GMC Axle Carrier Unit Independent

w/o Dana Axle 10.50" Ring Gear FAG Global Number 413 3147 100

with 8.5 (in) Ring Gear with GMC Axle

w/8600 lb. G.V.W. FAG Global Number 413 2994 100

Dana/Spicer 44 Axle

(10.5" R.G.)

8.25 in., 9.25 in. Ring Gear

8.5 in. Ring Gear

Except Spicer Axle FAG Global Number 413 2984 100

with 10.5 (in) Ring Gear with AAM Axle

9.50" Ring Gear

10.50" Ring Gear FAG Global Number 413 3190 100

with 9.5 (in) Ring Gear with AAM Axle

2nd Design 9.50" Ring Gear FAG Global Number 413 3085 100

Viton Type with 8.5 (in) Ring Gear with Spicer 44-8F Axle

9.5 in. 14 Bolt GM 9.5 in.; 14 bolt cover

10.50" Ring Gear

w/ 9.50" Ring Gear

10.50" Ring Gear
