Buy INFINITI JX35 Alternators

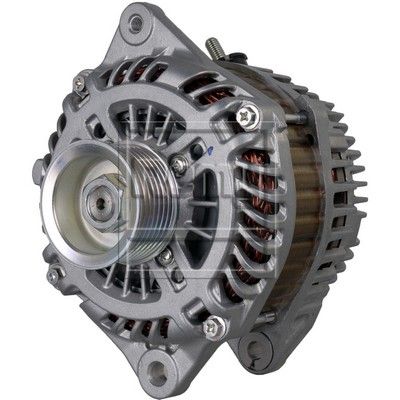

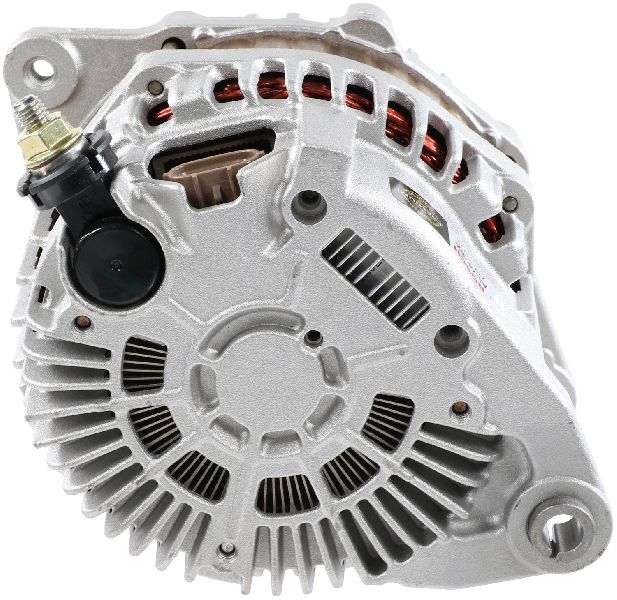

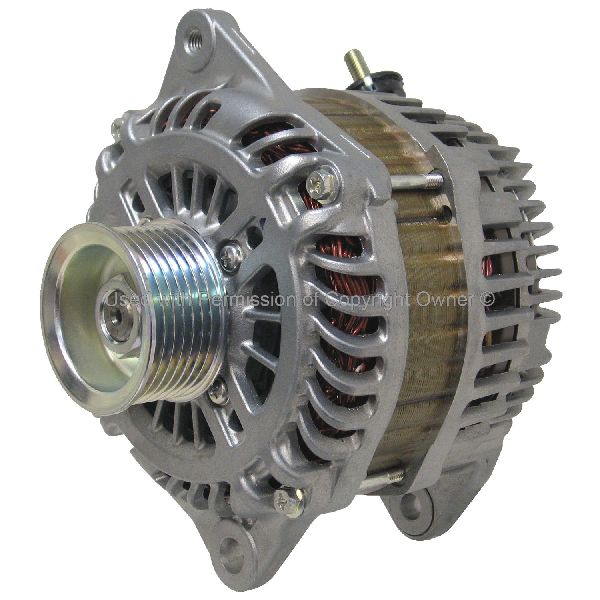

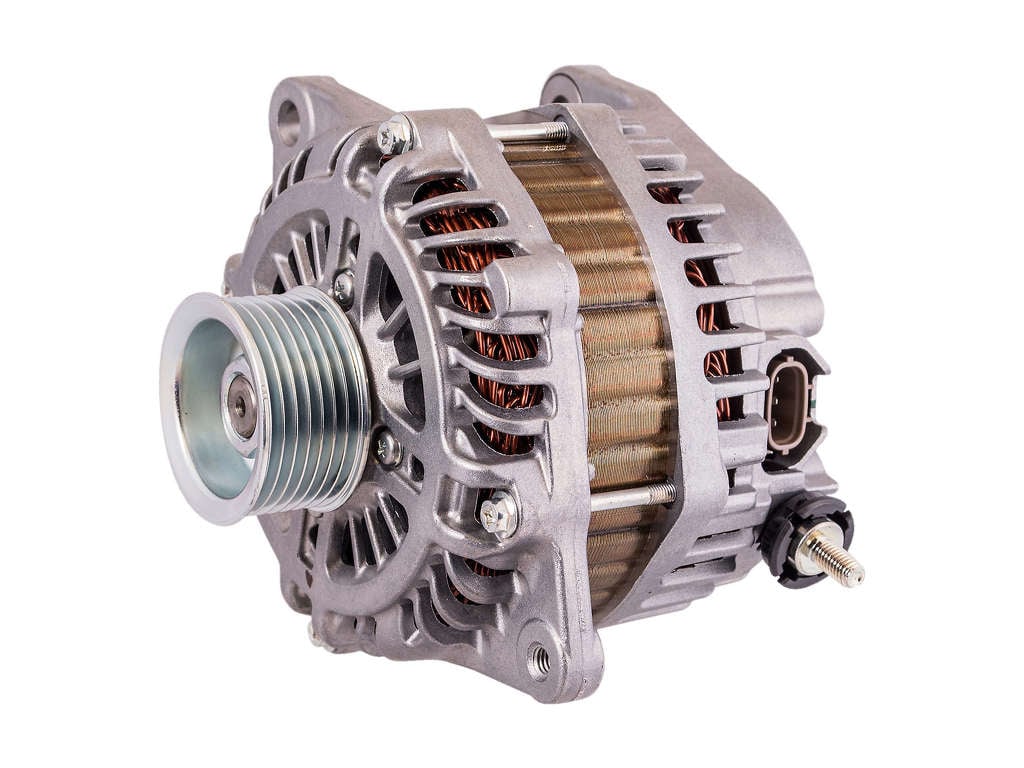

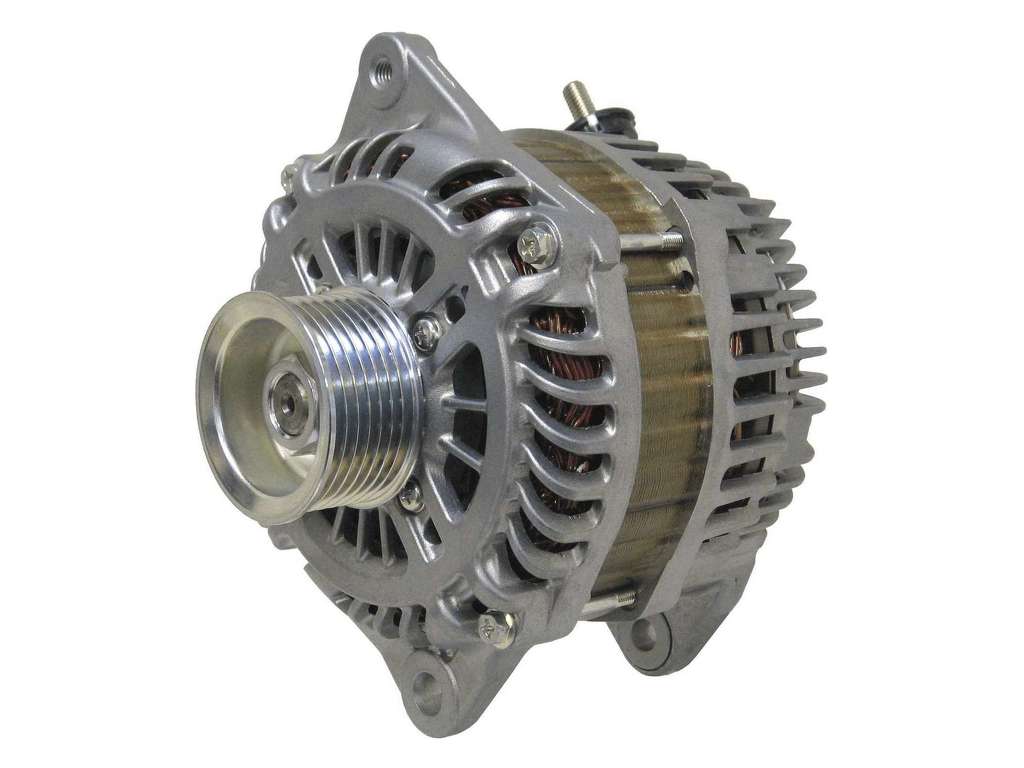

The 2013 INFINITI JX35 uses a 12-volt, belt-driven alternator (also called a generator or charging unit) that delivers about 150 amps to keep the battery and every onboard gadget alive. (amazon.com, ebay.com) When this part wears out you may notice dim headlights, warning lights, or even stalling because the vehicle is running only on stored battery power. (auto.howstuffworks.com) The JX35 was sold for one model year before being renamed QX60, so its alternator also fits many early QX60 and some Nissan Pathfinder models that share the same 3.5-liter VQ35DE engine. (en.wikipedia.org, rareelectrical.com) Typical repair bills run roughly $1,300-$1,600 in the U.S., parts and labor combined, though prices vary by region. (repairpal.com)

An alternator is a small electrical generator that turns engine rotation into alternating current (AC), then converts it to direct current (DC) to recharge the battery and power lights, pumps, and computers while you drive. (en.wikipedia.org, auto.howstuffworks.com) It relies on a pulley and the serpentine belt; if that belt slips or breaks, the alternator stops spinning and the charging system warning light comes on. (championautoparts.com)

• Output voltage on a healthy unit stays near 13.5-14.5 volts at idle. (autozone.com)
• High-output replacements (250-400 amps) are available for heavy audio or towing loads but require upgraded wiring. (js-alternators.com)

← scroll table horizontally →

The factory alternator mounts low on the passenger side of the engine with two main bolts and one wiring plug. (charm.li)

• Dashboard battery/charging light stays on. (infinitiofmobile.com)
• Dim or flickering headlights at night. (bommaritoinfiniti.com)
• Brake + battery lights together on many Nissan/Infiniti models. (reddit.com)
• Strange noises (whine or grind) from the front of the engine.
• Dead battery after short drives; jump-start works but problem returns. (auto.howstuffworks.com)

1. Visual check - look for a loose or glazed serpentine belt and corroded battery cables. (infinitipartsdeal.com)
2. Voltage test - with the engine idling, a multimeter across the battery should read 13.5-14.5 V; below 13 V usually means the alternator is weak. (auto.howstuffworks.com)
3. Load test - switch on headlights and rear defogger; voltage should hold above 13 V.
4. Noise test - use a mechanic's stethoscope to isolate bearing noise.

RepairPal lists an average alternator replacement cost for the JX35 at $1,272-$1,580 (labor $659-$967; parts ≈ $613). (repairpal.com) Prices drop if you choose remanufactured units or do-it-yourself labor, but always factor in a fresh belt and tensioner if they show wear. (repairpal.com, repairpal.com)

• Inspect the serpentine belt every 15,000 miles and replace if cracked or shiny. (repairpal.com)
• Keep battery terminals clean; corrosion forces the alternator to work harder.
• Avoid adding high-draw accessories without upgrading wiring and the alternator.
• Run the vehicle weekly if parked for long periods to maintain battery charge.

Most factory alternators last 90,000-120,000 miles or 7-10 years under normal loads. (auto.howstuffworks.com) Many remanufactured replacements carry a limited lifetime warranty; always keep your receipt.

Used alternators contain aluminum, copper, and steel that can be recycled-drop the old unit at a metal recycler or auto-electric shop. Proper recycling prevents heavy-metal contamination in landfills. Batteries should be recycled at authorized centers, too.
For open recalls or safety campaigns on your JX35's electrical system, check the free INFINITI Recall Lookup or the U.S. NHTSA database. (infinitiusa.com, carpro.com)

The 150-amp alternator used on the 2013 JX35 also fits:

• 2014-2016 INFINITI QX60 with the 3.5 L V6,
• 2013-2017 Nissan Pathfinder V6,
• Some 2015-2017 Nissan Murano models. (rareelectrical.com)
  Always match the mounting pattern and electrical plug before ordering.

Q: What size belt drives the alternator?
A: The JX35 uses a 7-rib serpentine belt (Infiniti #11720-6TA0A). (parts.infinitiusa.com)

Q: Can I drive with a bad alternator if the battery is new?
A: Only for a short time; once battery voltage drops below ~12 V the engine and power steering can shut down.

Q: Why do the battery and brake lights come on together?
A: On many Nissan/Infiniti dashboards these two lights illuminate when the charging system voltage is low. (reddit.com)

Q: What voltage should I see at idle?
A: Around 13.5-14.5 V with all accessories off. Anything under 13 V signals a charging issue. (autozone.com)

Q: Does the alternator have an external voltage regulator?
A: No. The regulator is integrated into the alternator housing and managed by the ECU.

Q: How long does a swap take for an experienced DIYer?
A: Plan on 1.5-2 hours with basic hand tools and a floor jack.

Q: Are high-output units safe for stock wiring?
A: Outputs above 200 amps need heavier-gauge charge cables and secure grounds to prevent overheating. (js-alternators.com)

Q: Is there a recall on the JX35 alternator?
A: No alternator-specific recall is listed, but always verify your VIN on the recall lookup pages mentioned above. (infinitiusa.com)

Q: What causes early alternator failure?
A: Over-tight belts, oil leaks dripping onto the pulley, repeated deep-cycle battery drains, or aftermarket audio loads without wiring upgrades. (auto.howstuffworks.com)

Q: Can a weak alternator trigger other trouble codes?
A: Yes. Low voltage can set random misfire or sensor-related codes, so test the charging system before replacing other parts. (justanswer.com)

Need more details? The 2013 INFINITI JX35 Owner's Manual includes torque figures and wiring diagrams for the charging system, available for free download in PDF form. (cdn.dealereprocess.org)

For deeper reading on how a car generator works, visit HowStuffWorks' explainer or the technical overview on the Alternator Wikipedia page. (auto.howstuffworks.com, en.wikipedia.org)
