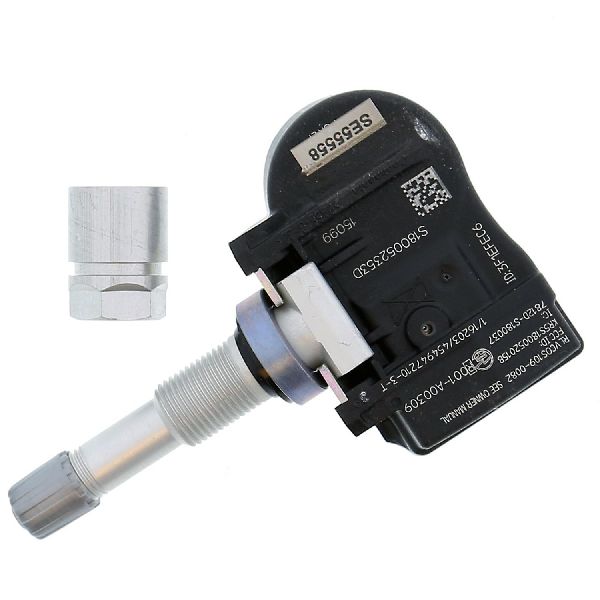

INFINITI Q50 Tire Pressure Monitoring System (TPMS) Sensor Replacement

with Aluminum Type Valve

with Rubber Type Valve

Supersession (ACES) Replaces 29015 Mounting Method: Clamp-in Torque: Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Frequency: 433.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Aluminum Valve Color: Silver Valve Stem Not Included Washer Not Included Includes 1 TPMS sensor w/ nut Quantity Included: 1

Supersession (ACES) Replaces 20034; 20069 Mounting Method: Clamp-in Torque: Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Frequency: 315.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Not Included Valve Core Material: Nickel Plated Valve Material: Aluminum Valve Color: Silver Valve Stem Not Included Washer Not Included Includes 1 TPMS sensor w/ nut Quantity Included: 1

Replacement Fixed Angle 43mm Metal Valves: RDV036 Silver, RDV037 Black, RDV038 Titanium. Replacement Rubber Valve: RDV043. OE Quality (must be programmed prior to install) Updateable, Reprogrammable and Copy Clone Capable

with aluminum valve; 433 Mhz Sensor Tire Pressure Monitoring System OE Design Sensor

433.92 MHz Sensor

433.92 MHz, Clamp In, 71 in-lbs, 8 N.m OE Manufactured

Grade: Aftermarket

with aluminum valve; 315 Mhz Sensor Tire Pressure Monitoring System OE Design Sensor

315 MHz, Clamp In, 71 in-lbs, 8 N.m OE Manufactured
