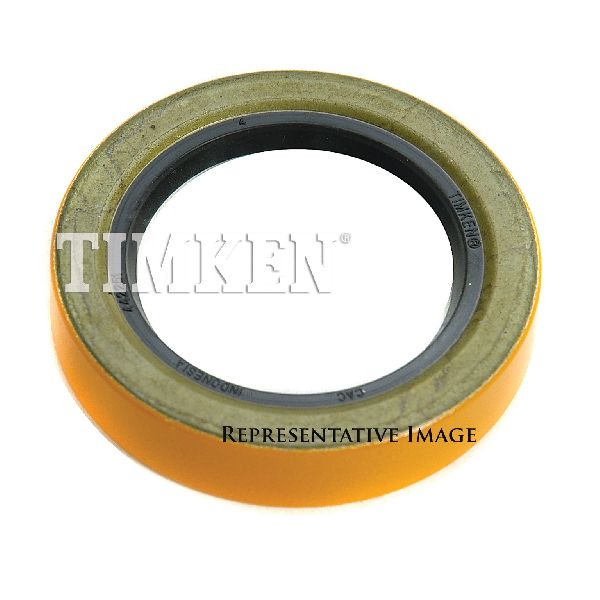

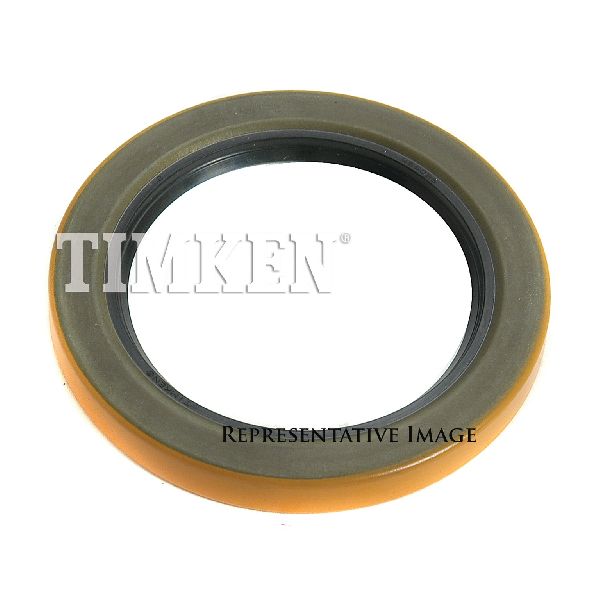

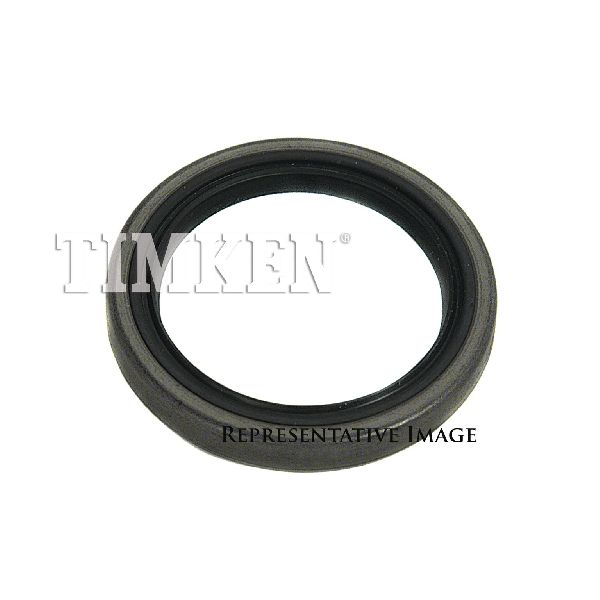

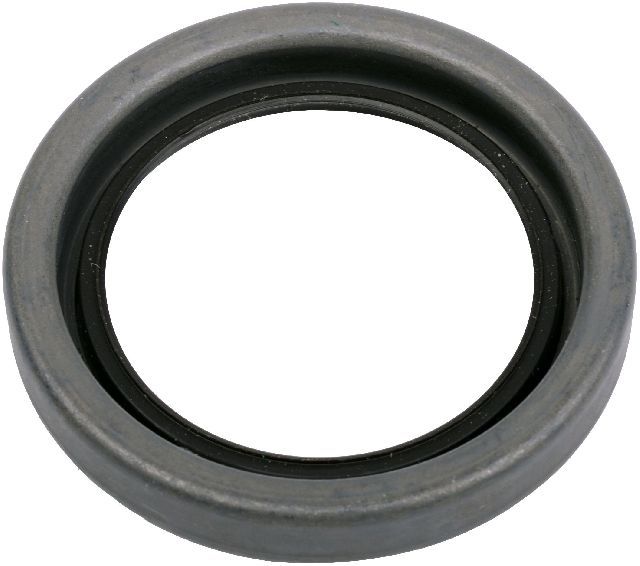

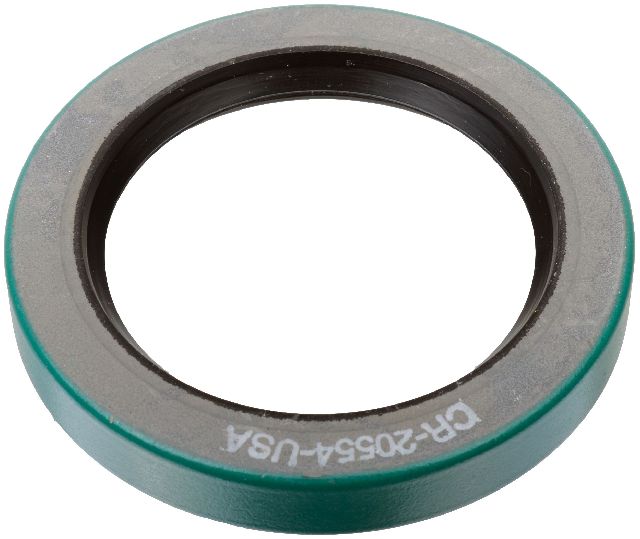

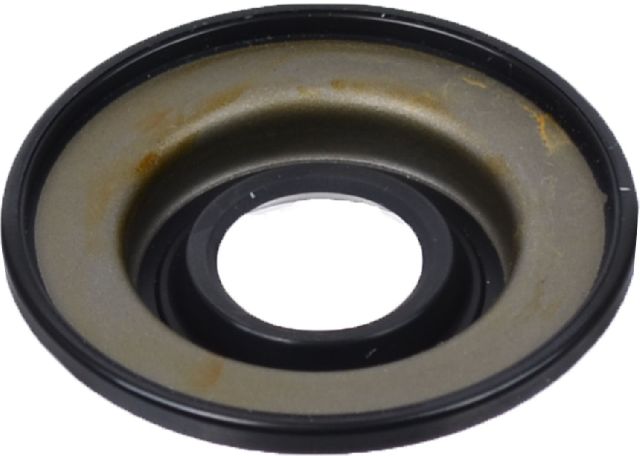

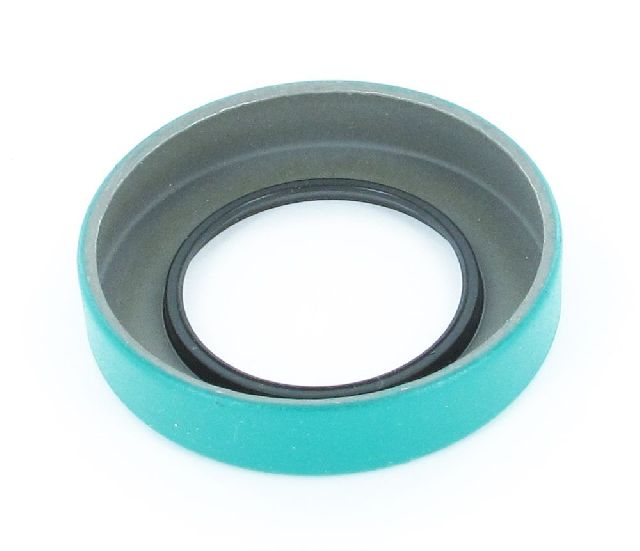

International Scout II Wheel Seal Replacement

1.500 Shaft Diameter 2.502 Bore Diameter 0.313 Width ; RA18, RA28 (Spicer 44) Axles

RA18 and RA28 (Spicer 44) Axles FAG Global Number 413 2577 100 2.506" O.D.

1.660 Shaft Diameter 2.440 Bore Diameter 2.444 Outside Diameter Seal 0.594 Width ; FA4 (IHC) Axle

with RA-4 Rear Axle

RA 18, RA 28 Axle

2.328 Shaft Diameter 3.000 Bore Diameter 3.005 Outside Diameter Seal 0.395 Width ; FA3, FA13 (Spicer 30), FA43, FA44 (Spicer 44) Axles

2.063 Shaft Diameter 2.875 Bore Diameter 2.879 Outside Diameter Seal 0.438 Width ; RA9, RA23 (Spicer 44) Axles

1.563 Shaft Diameter 2.502 Bore Diameter 2.506 Outside Diameter Seal 0.250 Width ; RA9, RA23 (Spicer 44) Axles

FAG Global Number 413 3195 100

1.875 Shaft Diameter 2.868 Bore Diameter 2.893 Outside Diameter Seal 0.375 Width ; RA18, RA28 (Spicer 44) Axles

FAG Global Number 413 3080 100

FA 3,43

RA-9, RA-23 Axle

2.125 Shaft Diameter 2.891 Bore Diameter 2.895 Outside Diameter Seal 0.250 Width ; FA11, FA14 (Spicer 27), FA21, FA24 (Spicer 30) Axles From Ser. FC60131, G165000

RA18 and RA28 (Spicer 44) Axles FAG Global Number 413 2034 100 2.893" O.D.

FA11, FA14 (Spicer 27), FA21 and FA24 FAG Global Number 413 3101 100

RA 18, RA 28 Axle

FA 11,14,21,24
