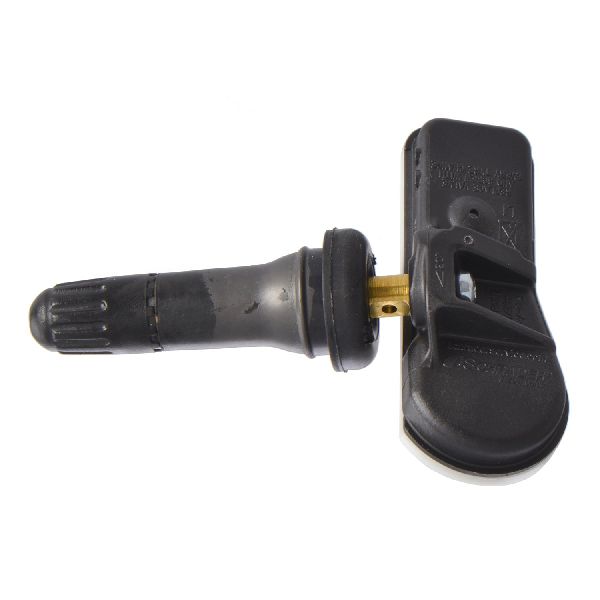

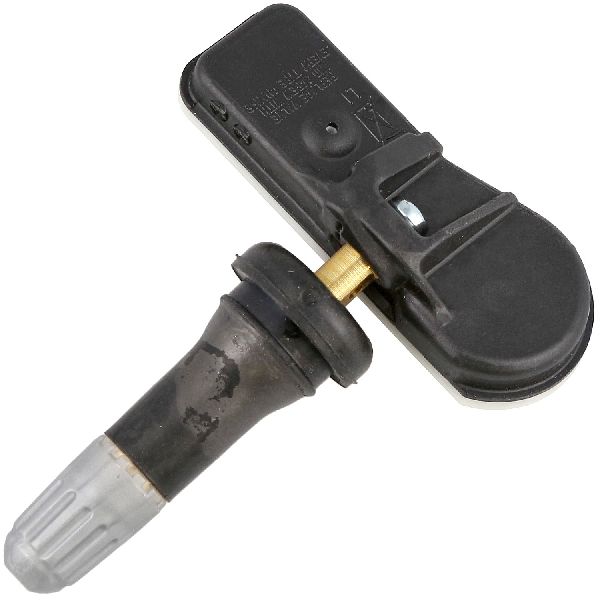

Kia Sedona Tire Pressure Monitoring System (TPMS) Sensor Replacement

No Programming Required. Install and Follow Mfr. Relearn Procedure. Includes Straight-In Screw Rubber Valve Includes Replacement Rubber Valve RDV043 Optional Replacement Metal Valves: RDV036 Silver 43mm, RDV037 Black 43mm, RDV038 Titanium 43mm Full Performance Validation- Every Application Validated To Function Exactly As The OE Sensor

No Programming Required. Install and Follow Mfr. Relearn Procedure. Includes RDV021 Silver 43mm Metal Valve Optional Replacement Flexible Angle Metal Valves: RDV022 Silver 48mm, RDV023 Silver 49mm, RDV026 Black 43mm, RDV027 Titanium 43mm. Full Performance Validation- Every Application Validated To Function Exactly As The OE Sensor

No Programming Required. Install and Follow Mfr. Relearn Procedure. Includes RDV021 Silver 43mm Metal Valve Optional Replacement Flexible Angle Metal Valves: RDV022 Silver 48mm, RDV023 Silver 49mm, RDV026 Black 43mm, RDV027 Titanium 43mm. Full Performance Validation- Every Application Validated To Function Exactly As The OE Sensor

with Rubber Type Valve

with Aluminum Type Valve

Supersession (ACES) Replaces 20083 Mounting Method: Clamp-in Torque: Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Frequency: 315.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Aluminum Valve Color: Dark Gray Valve Stem Not Included Washer Not Included Includes 1 TPMS sensor w/ nut Quantity Included: 1

Mounting Method: Snap-in Torque: Screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Frequency: 433.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Rubber Valve Color: Black Valve Stem Included Washer Not Included Includes 1 TPMS sensor with valve Quantity Included: 1

Mounting Method: Snap-in Torque: Screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Frequency: 433.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Rubber Valve Color: Black Valve Stem Included Washer Not Included Includes 1 TPMS sensor with valve Quantity Included: 1

Metal Clamp-in Stem; 315 MHz; Multi-application Sensor Relearn procedure may need to be performed upon installation of unit. Please refer to the service manual for vehicle specific instructions. Next Generation REDI-Sensor Replacement

Replacement Fixed Angle 43mm Metal Valves: RDV036 Silver, RDV037 Black, RDV038 Titanium. Replacement Rubber Valve: RDV043. OE Quality (must be programmed prior to install) Updateable, Reprogrammable and Copy Clone Capable

Rubber Snap-in Stem; 433.90 MHz; Multi-application Sensor Relearn procedure may need to be performed upon installation of unit. Please refer to the service manual for vehicle specific instructions. Next Generation REDI-Sensor Replacement

Metal Clamp-in Stem; 433.92 MHz; Multi-application Sensor Relearn procedure may need to be performed upon installation of unit. Please refer to the service manual for vehicle specific instructions. Next Generation REDI-Sensor Replacement

433MHz; Screw torque = 11.5in-lbs, 1.3 Nm OE Manufactured

oe style; w/ Rubber Valve 433 Mhz Sensor Tire Pressure Monitoring System OE Design Sensor

with aluminum valve; OE Style/ID Clone-able 315 Mhz Sensor Tire Pressure Monitoring System OE Design Sensor

Supersession (ACES) Replaces 28505; 28586 Mounting Method: Snap-in Torque: Screw torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 115 Max Pressure Rating: 80 Frequency: 433.0 MHz Housing Material: Plastic Without Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Included Valve Core Material: Nickel Plated Valve Material: Rubber Valve Color: Black Valve Stem Included Washer Not Included Includes 1 TPMS sensor with valve Replaces ~28505~; ~28586~ Quantity Included: 1

315 MHz, Clamp In, 35 in-lbs, 4 N.m OE Manufactured

Grade: Aftermarket With OE No. 52933B2100
