Buy Kia Soul Engine Timing Belt Kit with Water Pumps

The Kia Soul Engine Timing Belt Kit with Water Pump is a single package that keeps the cam belt (also called a timing belt) and cooling system working in sync. On 2010-2011 Soul models with the 2.0-liter engine, a toothed rubber belt turns both the camshaft and the water pump; the smaller 1.6-liter engine uses a metal timing chain instead. (JustAnswer, Reddit) Replacing the full kit about every 60,000 miles or four years prevents sudden belt failure and costly engine damage. (RepairPal.com)

The timing belt keeps the camshaft and crankshaft rotating together so the valves open and close at the right time. (YourMechanic) If the belt slips or breaks, the engine can stall instantly and internal parts may collide.
The belt also spins the water pump, which pushes coolant through the block and radiator to stop overheating. (NAPA Blog)

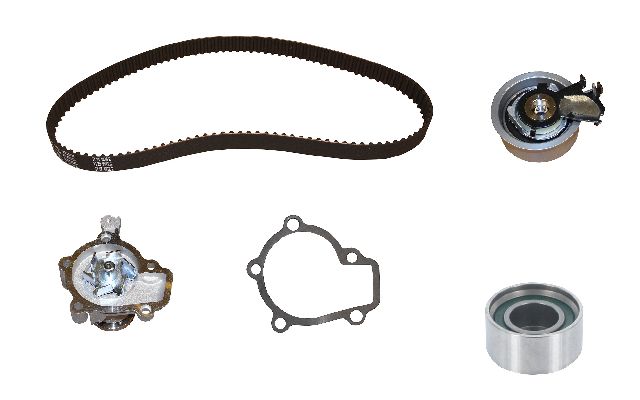

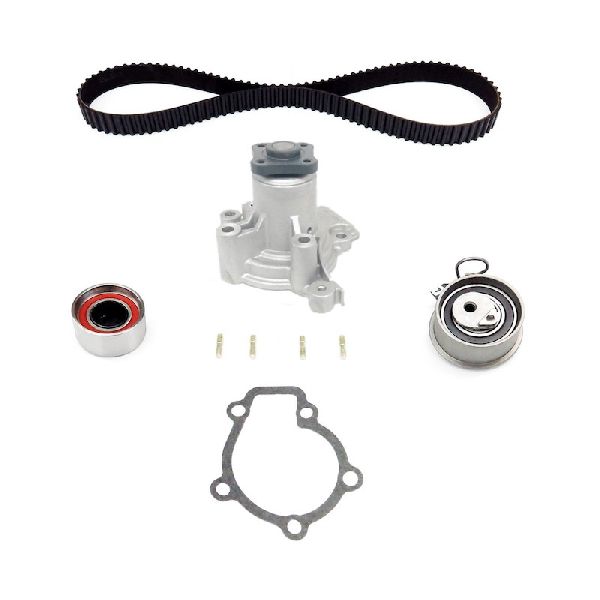

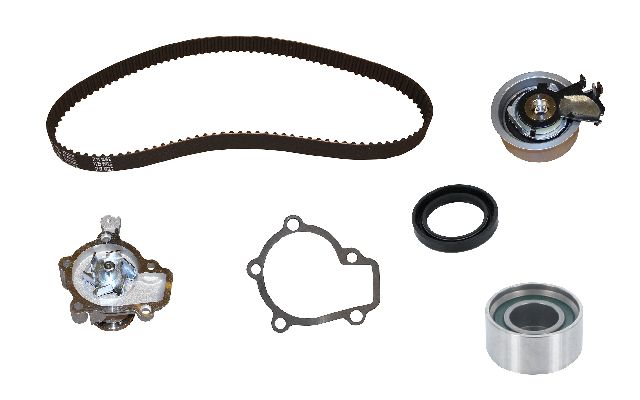

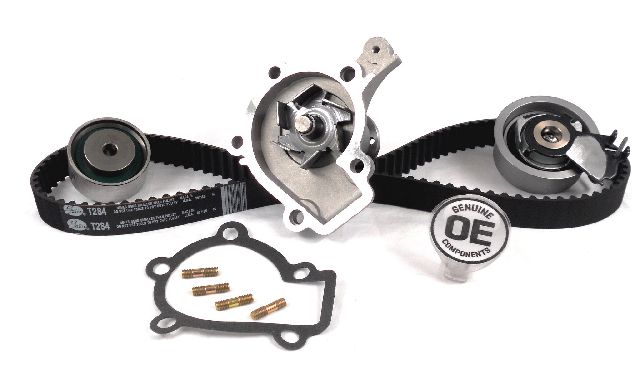

A complete kit usually contains:

• Timing belt (cam belt)
• Water pump with new gasket
• Belt tensioner and idler pulleys
• Front-engine oil seals

Bundling these matched parts means everything wears evenly and fits correctly. (, RepairPal.com)

• 2010-2011 2.0 L "Beta II" engines use a belt-driven setup and need periodic replacement. (JustAnswer, Car Forums at Edmunds.com)
• 2010-2011 1.6 L "Gamma" engines run a timing chain that normally lasts the life of the vehicle, though it can stretch over time. (Kia Soul Forums, Reddit)
• Later Soul generations switched fully to chains, so always confirm your engine code before ordering parts. (Kia Soul Forums)

Guides for the 2.0 L Soul recommend changing the belt, water pump, tensioner, and pulleys at 60 k miles or 48 months- whichever comes first. (RepairPal.com)
Some modern belts can last closer to 100 k miles, but early replacement is cheap insurance against valve damage. (Kbb.com)

• Squeaking, chirping, or ticking from the timing cover. (YourMechanic)
• Coolant weeping from the pump or unexplained overheating. (YourMechanic)
• Rough idle, hard starting, or flashing check-engine light pointing to cam/crank correlation codes. (YourMechanic)

Because the pump hides behind the cam belt, doing both jobs at once saves duplicate labor and means fresh bearings and seals go in with the new belt. (NAPA Blog, NAPA Blog) Replacing only the belt could leave an old pump that might seize and shred the new belt. (YourMechanic)

DIY steps include aligning factory timing marks, locking the shafts, slipping on the new belt, setting tension, rotating the crank by hand to double-check alignment, refilling coolant, and purging air. (YouTube, NAPA Blog) Always follow the factory service manual torque specs.

Owners report parts near $300 for a quality cam belt kit; professional labor can bring the total to $1,100-plus. (Reddit, RepairPal.com) A trained technician usually needs 4-6 hours for the complete job.

Extreme heat, dusty roads, oil leaks, or coolant drips shorten belt life. (Car Talk Community) Inspect more often if you drive in heavy stop-and-go traffic or tow a trailer.

Many technicians suggest adding a fresh serpentine belt, accessory idlers, and new radiator hoses since all must be removed for access. (RepairPal.com)

Q: How do I tell if my Soul has a timing belt or chain?
A: Check the 8th digit of the VIN or the engine label. Souls with the 2.0 L "Beta II" use a belt; the 1.6 L "Gamma" uses a chain. (JustAnswer, Car Forums at Edmunds.com)

Q: What happens if the belt snaps while driving?
A: The camshaft stops but the pistons keep moving. Valves can bend in seconds, leading to an expensive overhaul. (YourMechanic)

Q: Is the 2.0 L Soul an interference engine?
A: Many databases list it as interference, meaning valve-to-piston contact is possible after a belt break, so inspect carefully before installing a new belt. (YourMechanic)

Q: Do I really need the water pump too?
A: Yes. The pump is driven by the cam belt and sits behind it. Swapping both avoids paying the same labor twice and prevents a worn pump from damaging the new belt. (NAPA Blog, NAPA Blog)

Q: How long can a quality cam belt last?
A: Some reinforced belts can survive up to 100 k miles, but the Soul service schedule still calls for 60 k miles or 4 years-whichever comes first-to stay safe. (Kbb.com, RepairPal.com)

Q: What tools are needed for DIY?
A: You'll need basic metric sockets, a crank pulley holder, torque wrench, coolant catch pan, and alignment pins or paint to mark the gears. (YouTube)

Q: Can I reuse the old tensioner?
A: No. A weak or leaking tensioner can let the belt jump teeth, so always install the new tensioner and idler that come in the kit. (NAPA Blog, RepairPal.com)

Q: Should I flush coolant after the job?
A: Yes. Draining the pump lowers coolant level; refill with the correct 50/50 mix and bleed air to prevent hot spots. (NAPA Blog)

Q: Why does the belt squeak on cold mornings?
A: A glazed or loose belt can chirp as it slips over pulleys; imminent failure is possible-inspect right away. (YourMechanic)

Q: Can I extend belt life with additives?
A: No. Oil or chemical sprays can degrade the rubber and speed failure. Follow the change schedule instead. (YourMechanic)

Q: How much coolant does the Soul hold?
A: Around 1.5 gallons, but always confirm in the owner's manual and capture the old coolant for recycling. (NAPA Blog)

Q: Is it safe to drive with a small coolant leak at the pump?
A: Even a slow drip can wash antifreeze onto the belt, weakening the rubber. Fix it before the leak ruins the cam belt. (YourMechanic)

Keeping the Kia Soul's cam belt kit fresh protects the engine, keeps coolant flowing, and gives peace of mind on every drive.
