Mazda 2 Wheel Bearing Replacement

Wheel Bearing Axle Nut Torque Spec: Refer to OE service manual

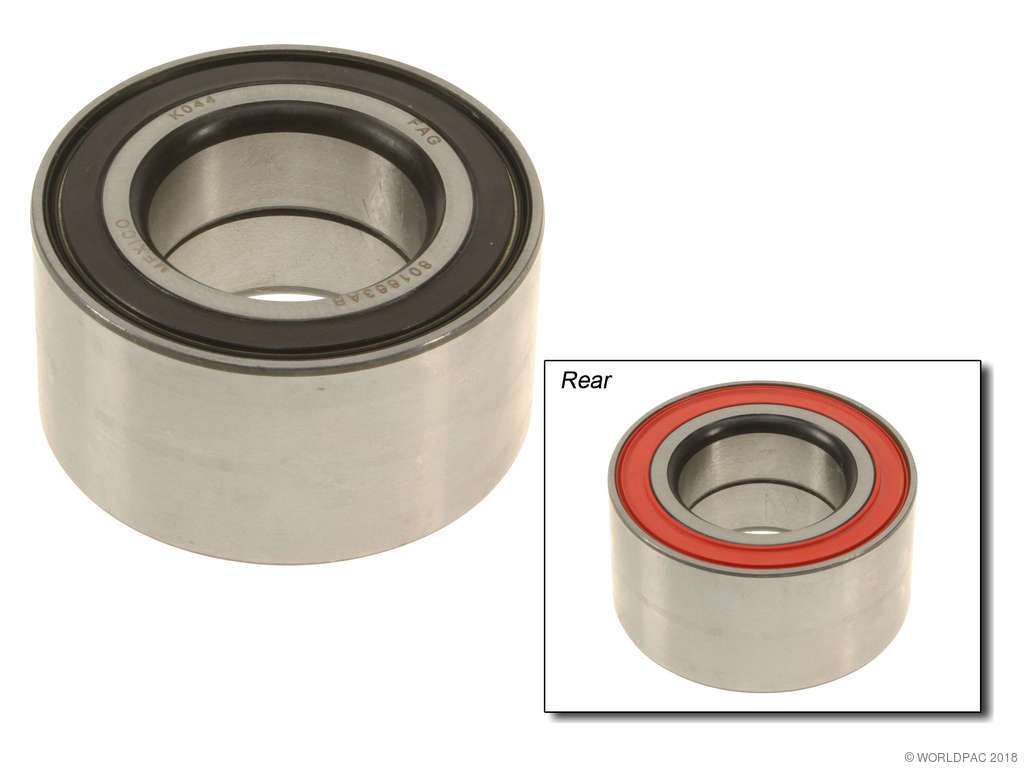

FAG Global Number 801663AA This bearing comes with a built in magnetic strip which should be assembled towards the ABS sensor. The correct side can be confirmed by moving an FAG magnet indicator or any magnet reactive product (such as a paper clip) over the end of the bearing. A protective metal cover can also indicate the correct side to be installed.

with 1.535 in. Bearing Inside Diameter with 2.834 in. Outside Diameter Bearing(s) 1.456 in. Width ; Sealed

Install Identical to OE

Contains ABS Encoder Seal Install With The Serrated Black Seal Toward Sensor
