Mazda RX-7 Wheel Bearing Replacement

with 0.6880 in. Bearing Inside Diameter with 1.5700 in. Outside Diameter Bearing(s) 1.5700 in. Width 0.5750 in. Cone Length 0.4200 in. Cup Length

0.6693 in. Cone Length 0.5315 in. Cup Length with 1.496 in. Bearing Inside Diameter with 2.480 in. Outside Diameter Bearing(s) 0.669 in. Width

Bearing Only. Original Equipment Sells Hub And Bearing Assembly.

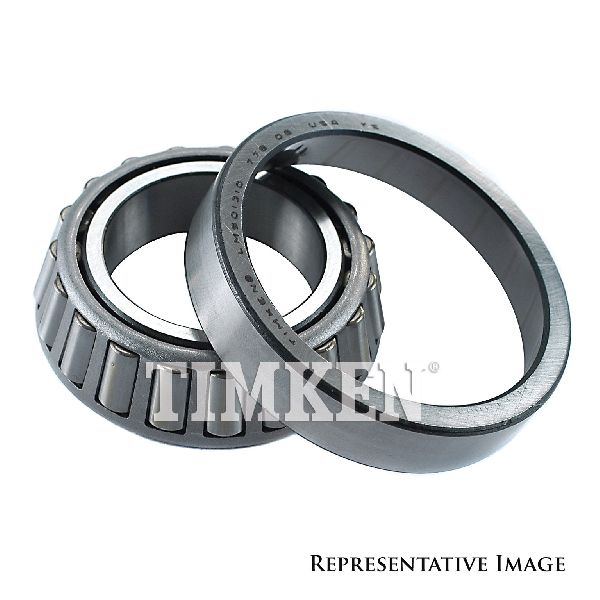

Taper Bearing Set Includes Cup and Cone

with 1.181 in. Bearing Inside Diameter with 2.440 in. Outside Diameter Bearing(s) 1.254 in. Width ; Sealed w/ Lock Ring

with 0.7870 in. Bearing Inside Diameter with 1.8500 in. Outside Diameter Bearing(s) 1.8500 in. Width 0.7087 in. Cone Length 0.5906 in. Cup Length

with 1.102 in. Bearing Inside Diameter with 2.047 in. Outside Diameter Bearing(s) 0.629 in. Width

Bearing Only

w/o Collar Requires collar # 8545-26-152

with 1.378 in. Bearing Inside Diameter with 2.834 in. Outside Diameter Bearing(s) 0.669 in. Width ; Sealed w/ Lock Ring

Wheel Bearing Axle Nut Torque Spec: 205 ft-lbs / 277Nm

NSK IS THE O.E. MANUFACTURER

with 1.6535 in. Bearing Inside Diameter with 3.1496 in. Outside Diameter Bearing(s) 3.1496 in. Width ; Sealed

FAG Global Number 562079

FAG Global Number 102570

with 1.7717 in. Bearing Inside Diameter with 3.2677 in. Outside Diameter Bearing(s) 3.2677 in. Width ; Sealed
