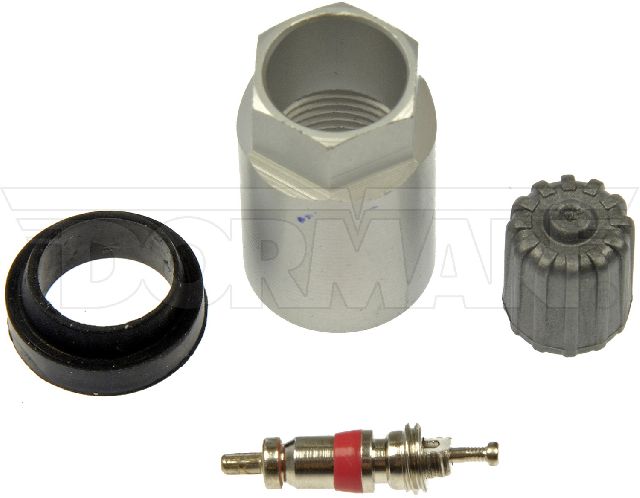

Mercedes-Benz S350 Tire Pressure Monitoring System (TPMS) Sensor Serv Replacement

Supersession (ACES) Replaces 20016 Mounting Method: Clamp-In components Torque: Nut Torque = 58in-lbs, 6.5Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included Quantity Included: 1

Supersession (ACES) Replaces 20016 Mounting Method: Clamp-In components Torque: Nut Torque = 58in-lbs, 6.5Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included 20013 - TPMS Service Kit Quantity Included: 25

Part Description: If valve is needed, use assembled valve kits 20037, 20038, 20039, 20040 Mounting Method: Clamp-In components Torque: Nut torque = 40 in-lbs, 4.5Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included 20023 - TPMS Service Kit Quantity Included: 25

oe style; w/o Valve 4 Per Box No programming required. Install sensor and follow the OEM factory relearn procedure.

oe style; w/o Valve 25 Per Box No programming required. Install sensor and follow the OEM factory relearn procedure.

Part Description: If valve is needed, use assembled valve kits 20037, 20038, 20039, 20040 Mounting Method: Clamp-In components Torque: Nut torque = 40 in-lbs, 4.5Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included Quantity Included: 1

Aluminum Stem Only OE Manufactured

with aluminum valve; No programming required. Install sensor and follow the OEM factory relearn procedure.

Supersession (ACES) Replaces 20016 Mounting Method: Clamp-In components Torque: Nut Torque = 58in-lbs, 6.5Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Without Mounting Hardware Valve Not Included Valve Cap Not Included Valve Stem Not Included Washer Not Included Quantity Included: 1

Services factory equipped TPMS Sensors

48-mm, 315 MHz, Clamp In, 35 in-lbs, 4 N.m, Use with Huf/Beru OE Sensors OE Manufactured

49-mm, 315 MHz, Clamp In, 35 in-lbs, 4 N.m, Use with Huf/Beru OE Sensors OE Manufactured

43-mm, 315 MHz, Clamp In, 35 in-lbs, 4 N.m, Use with Huf/Beru OE Sensors OE Manufactured
