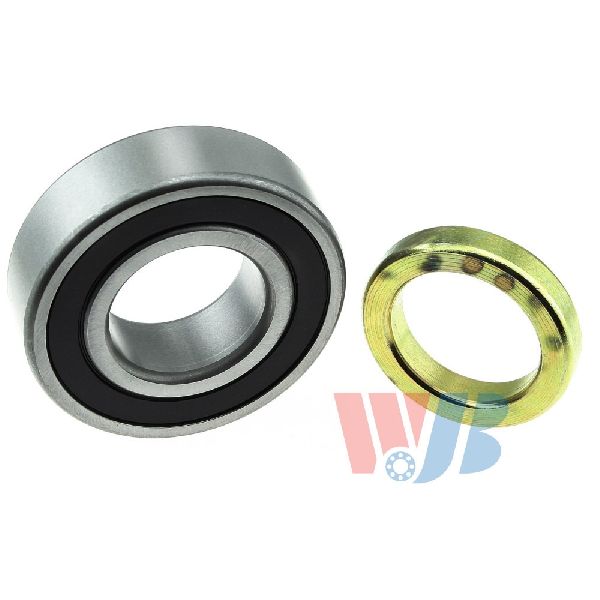

Mercury Cougar Wheel Bearing Replacement

w/ Bearing only w/o Race

Differential Bearing Retainer - Axle

0.6550 in. Cone Length 0.4750 in. Cup Length with 0.750 in. Bearing Inside Diameter with 1.781 in. Outside Diameter Bearing(s) 0.610 in. Width

Taper Bearing Set Includes Cup and Cone

with 1.3775 in. Bearing Inside Diameter with 2.3612 in. Outside Diameter Bearing(s) 2.3612 in. Width 0.6600 in. Cone Length 0.4700 in. Cup Length

with 1.378 in. Bearing Inside Diameter with 2.328 in. Outside Diameter Bearing(s) 0.625 in. Width

0.7200 in. Cone Length 0.5500 in. Cup Length with 1.375 in. Bearing Inside Diameter with 2.563 in. Outside Diameter Bearing(s) 0.710 in. Width

0.6693 in. Cone Length 0.5315 in. Cup Length with 1.496 in. Bearing Inside Diameter with 2.480 in. Outside Diameter Bearing(s) 0.669 in. Width

Replacement Bearing

Taper Bearing Set Includes Cup and Cone

w/ 9" Ring Gear & 3300 LB Axle Wheel Bearing Axle Nut Torque Spec: N/R

Standard Replacement Bearing

Rear Bearing Kit; Repair Bearing With Seal

Wheel Bearing Axle Nut Torque Spec: 214 ft-lbs / 290Nm

w/ Bearing only w/o Race

Standard Design

Wheel Bearing Axle Nut Torque Spec: 221 ft-lbs / 300Nm

FAG Global Number 805971

FAG Global Number FC67147

FAG Global Number 102583 2.8346" O.D.

FAG Global Number 579102A

FAG Global Number 102402

28 Splines Axle

with 1.6535 in. Bearing Inside Diameter with 2.9920 in. Outside Diameter Bearing(s) 2.9920 in. Width 1.5354 in. Cone Length 1.5354 in. Cup Length ; Sealed

with Axle Repair Bearing Assembly

with 1.5630 in. Bearing Inside Diameter with 3.1490 in. Outside Diameter Bearing(s) 3.1490 in. Width 0.8720 in. Cone Length 0.6010 in. Cup Length ; Roller Brg.

Non Heavy Duty Axle - Roller Ball Bearing

with 9 (in) Ring Gear with 3,300 (lb) Axle(s)

with 1.531 in. Bearing Inside Diameter with 3.149 in. Outside Diameter Bearing(s) 1.083 in. Width ; w/Lock Ring Ball Brg.

with 1.574 in. Bearing Inside Diameter with 2.952 in. Outside Diameter Bearing(s) 1.456 in. Width ; Sealed

FAG Global Number 102674 2.506" O.D. 3.1496" O.D.

FAG Global Number 102675
