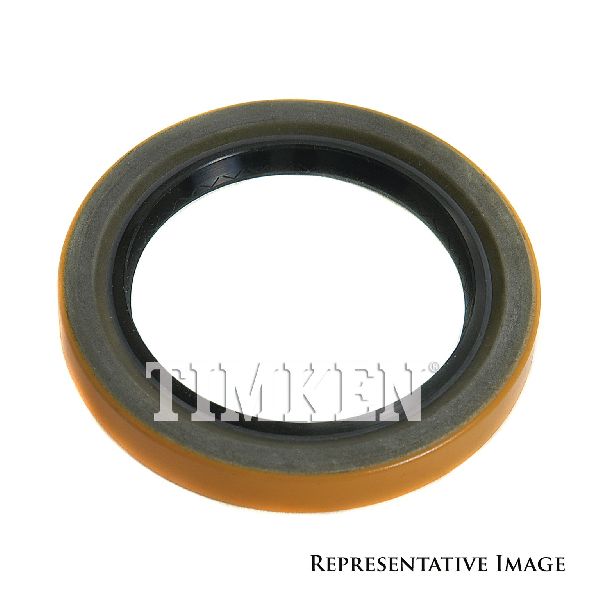

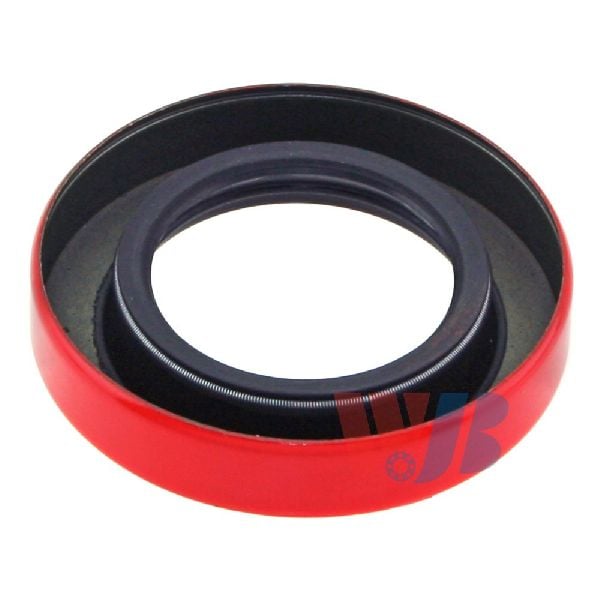

Mercury Cougar Wheel Seal Replacement

8" Ring Gear 28 Spline

9" Ring Gear 3,300 lb. Axle

(2 3/4 OD X 9/32 Thick )

1.399 Shaft Diameter 2.292 Bore Diameter 2.296 Outside Diameter Seal 0.469 Width

1.938 Shaft Diameter 2.502 Bore Diameter 2.506 Outside Diameter Seal 0.281 Width

9" Ring Gear 2,900 lb. Axle

1.500 Shaft Diameter 2.260 Bore Diameter 2.264 Outside Diameter Seal 0.406 Width

FAG Global Number 413 2468 100 1.399" Shaft

FAG Global Number 413 2977 100

(2 3/4 OD X 9/32 Thick )

with 31 Splines with 9 (in) Ring Gear

31 Splines Axle

FAG Global Number 413 2557 100

1.500 Shaft Diameter 2.502 Bore Diameter 0.313 Width ; Ball Brg.

with 9 (in) Ring Gear with 3,300 (lb) Axle(s)

1.365 Shaft Diameter 2.261 Bore Diameter 2.265 Outside Diameter Seal 0.313 Width

Non Heavy Duty Axle - Roller Ball Bearing

ball brg. FAG Global Number 413 2577 100 2.506" O.D.

1.375 Shaft Diameter 2.374 Bore Diameter 2.378 Outside Diameter Seal 0.313 Width ; w/o WEZ Axle

1.938 Shaft Diameter 2.578 Bore Diameter 2.582 Outside Diameter Seal 0.294 Width

FAG Global Number 413 2410 100

with 28 Splines with 9 (in) Ring Gear

w/o WEZ Axle FAG Global Number 413 2419 100 2.378" O.D.

FAG Global Number 413 2978 100

28 Splines Axle

roller brg. FAG Global Number 413 2946 100

with 9 (in) Ring Gear with 2,900 (lb) Axle(s)

Heavy Duty Axle - Roller Bearing

9 in. Ring Gear

9 in. Ring Gear
