Plymouth Trailduster Wheel Seal Replacement

Locking Hub

8 Stud Hub 3,600 lb. Axle

5 Stud Hub 3,300 lb. Axle

1.618 Shaft Diameter 2.575 Bore Diameter 2.579 Outside Diameter Seal 0.500 Width with 8.375 Ring Gear

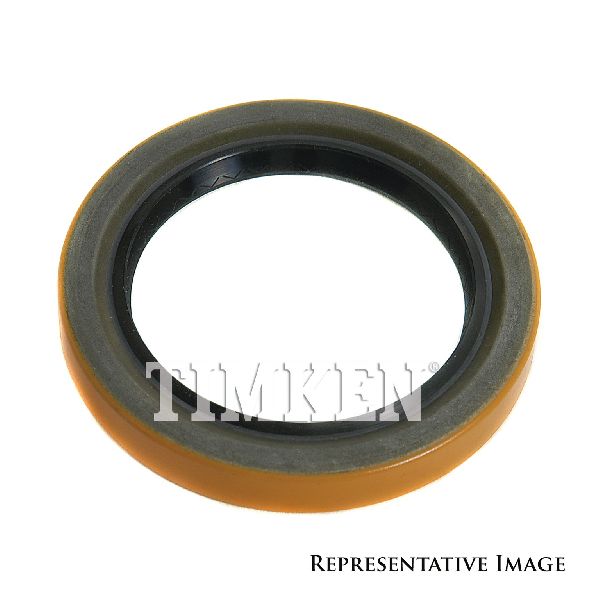

1.938 Shaft Diameter 2.621 Bore Diameter 2.626 Outside Diameter Seal 0.570 Width ; 3000, 3300 lb. Axles

3.251 in. Bore Diameter 0.375 in. Width 2.500 in. Shaft Diameter 3.256 in. Outside Diameter Seal

with 5 Stud Hub with 3,300 (lb) Axle(s)

3,300 lb. 3,600 lb Axle 5 Stud

8.38 in., 9.25 in. Ring Gear

8.375" Ring Gear FAG Global Number 413 2698 100 .70" Wide Brg. .830" Wide Brg. 1.024" Wide Brg.

FAG Global Number 413 3230 100

2.500 Shaft Diameter 3.251 Bore Diameter 3.256 Outside Diameter Seal 0.250 Width

2.048 Shaft Diameter 2.727 Bore Diameter 2.732 Outside Diameter Seal 0.570 Width ; 3600 lb Axle

Locking Hubs

with Locking Hubs

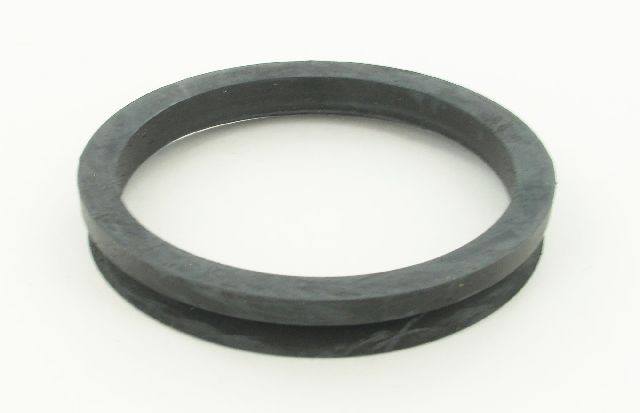

2.750 Shaft Diameter; V-Ring

with 8 Stud Hub with 3,300 (lb) Axle(s)

1.704 Shaft Diameter 3.034 Bore Diameter 3.039 Outside Diameter Seal 0.500 Width with 9.25 Ring Gear

FAG Global Number 413 3072 100

2.625 Shaft Diameter 3.371 Bore Diameter 3.376 Outside Diameter Seal 0.438 Width

1.552 Shaft Diameter 2.686 Bore Diameter 2.690 Outside Diameter Seal 0.500 Width with 8.75 Ring Gear

3,300 lb. 3,600 lb Axle 8 Stud

1.893 Shaft Diameter 2.434 Bore Diameter 2.438 Outside Diameter Seal 0.250 Width with 8.75 Ring Gear

FAG Global Number 413 3594 100

9.25" Heavy-duty Ring Gear FAG Global Number 413 2761 100

with 8.75 (in) Ring Gear

with 8.75 (in) Ring Gear

3,800, 4,000 lb. Axle - 8 Stud

8.75" Ring Gear FAG Global Number 413 2964 100

Non Locking Hubs
