Porsche 911 Engine Oil Line Replacement

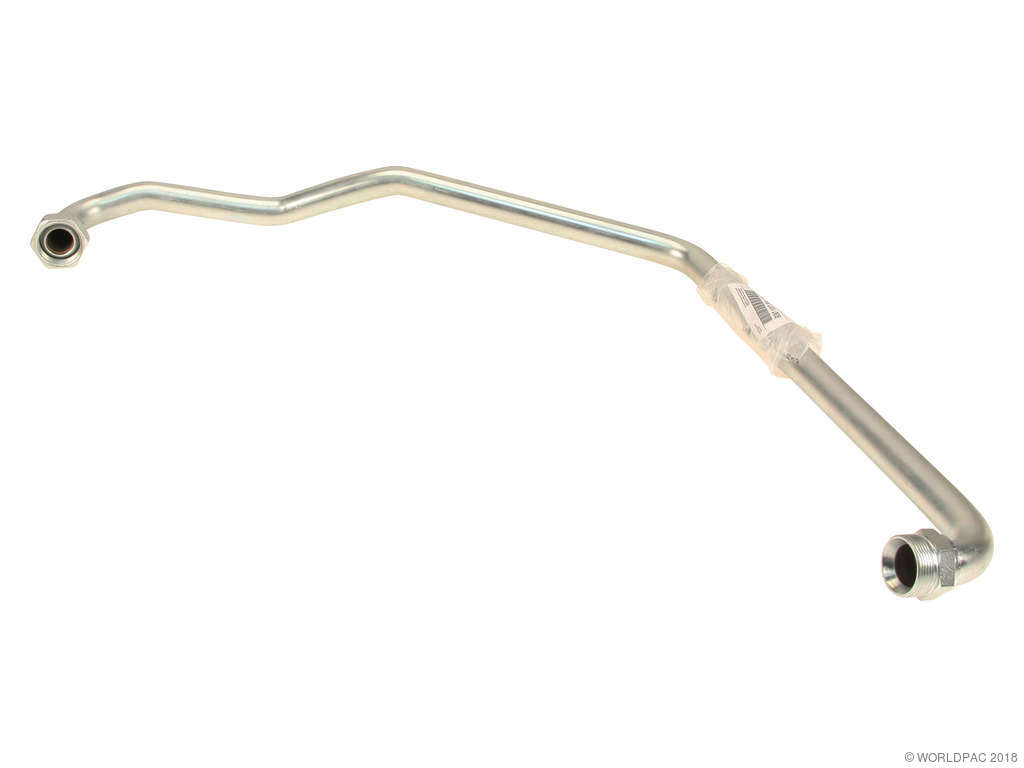

Lower Outlet on Oil Tank to Oil Pipe.

All Metal - Right Tensioner - Update

When using 930 107 911 912 Timing Chain Tensioner update kit - Left

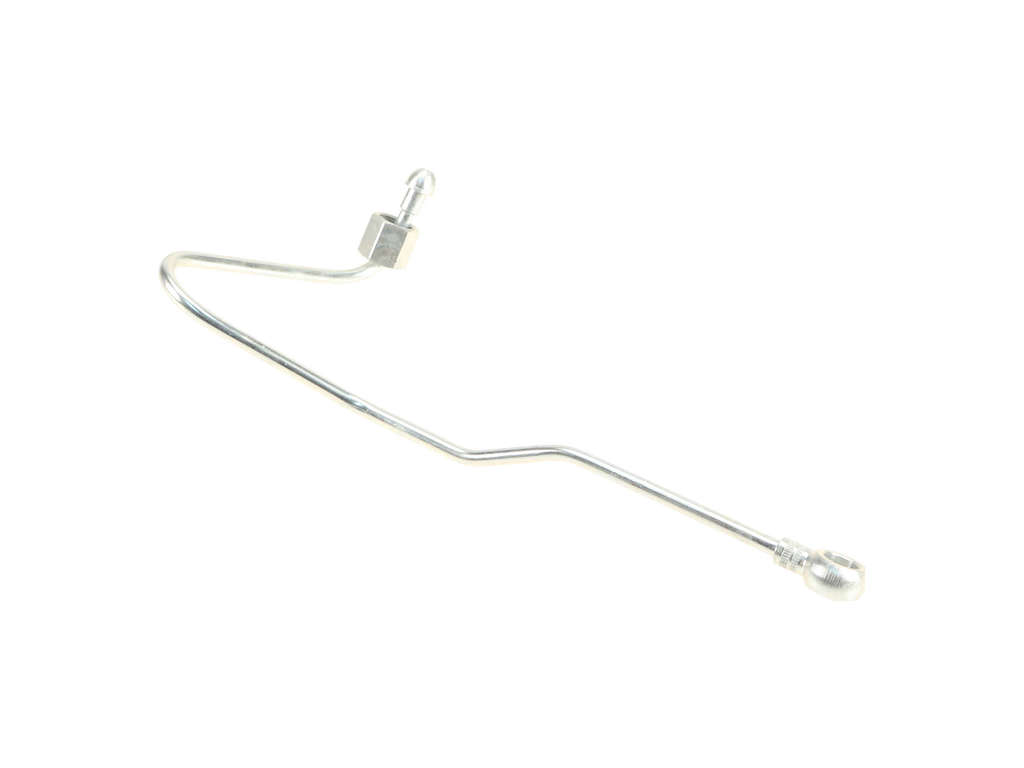

Eng: 903070-, Camshaft - Right

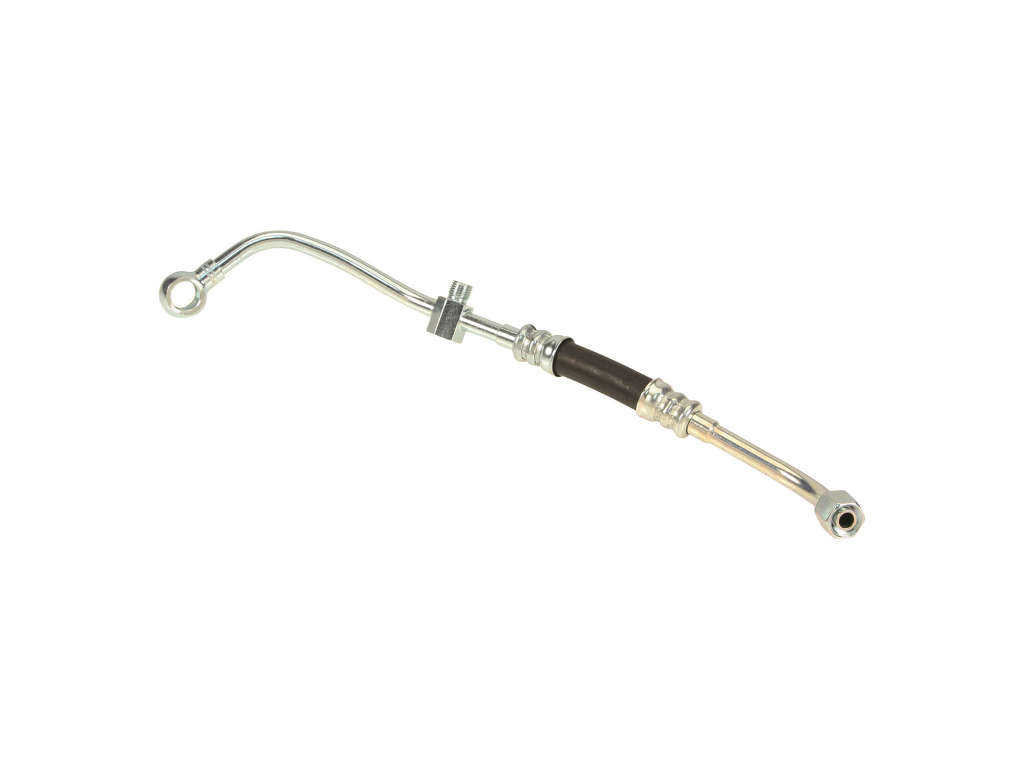

Left Camshaft Update (Rubber & Metal) with 3 fittings Associated line 930 107 347 06.

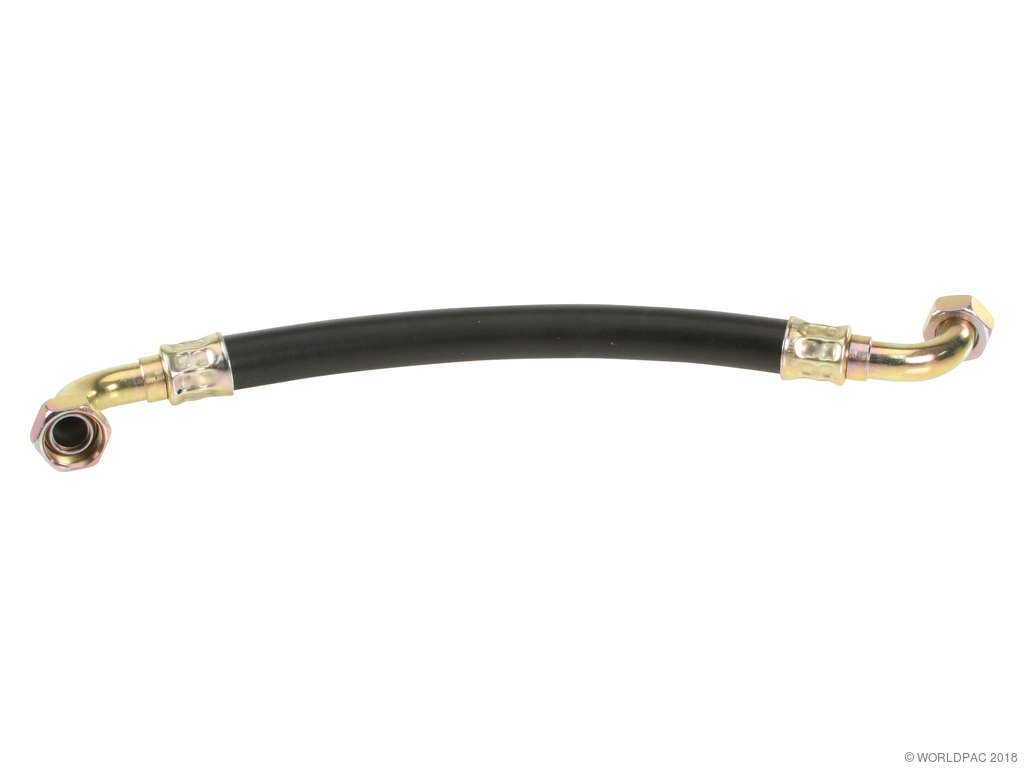

for Oil Pressure Fed Tensioners From 2/83 to Chain Tensioner

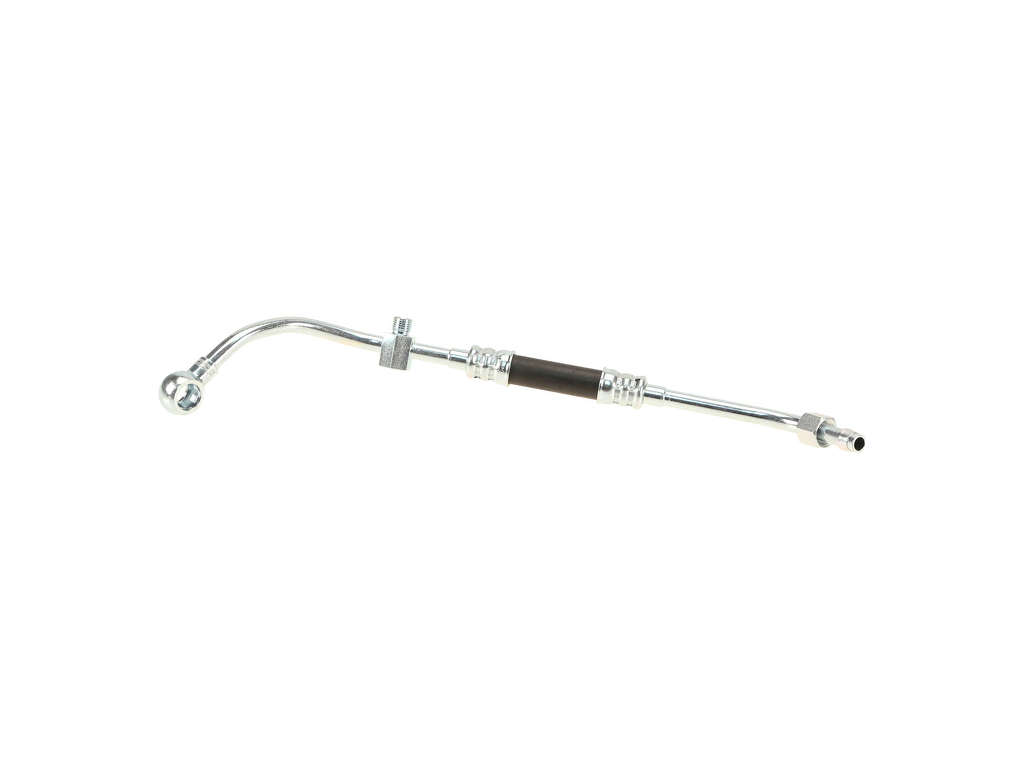

All Metal - Left Tensioner - Update Top of line is straight, from 90 degree angle. Associated hose 930 107 347 04.

Eng: 903070-, Camshaft - Left

Engine Oil From engine pipe (930 107 741 11) to thermostat mounted in wheel well. Rubber & metal, approximately 1250mm in length.

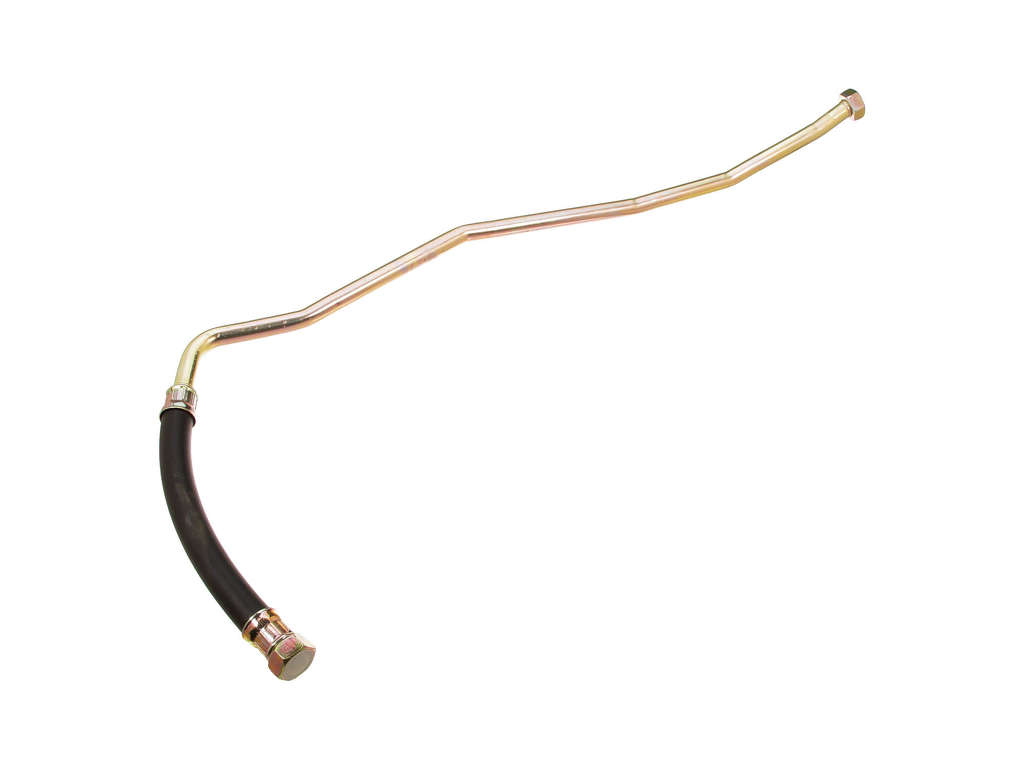

(Bottom of Tank, Front Connection. Rubber)

Connecting Piece to Engine Breather Cover

When using 930 107 911 912 Timing Chain Tensioner update kit - Right

Engine Pipe to Oil Tank Fed. w/o Front Oil Cooler

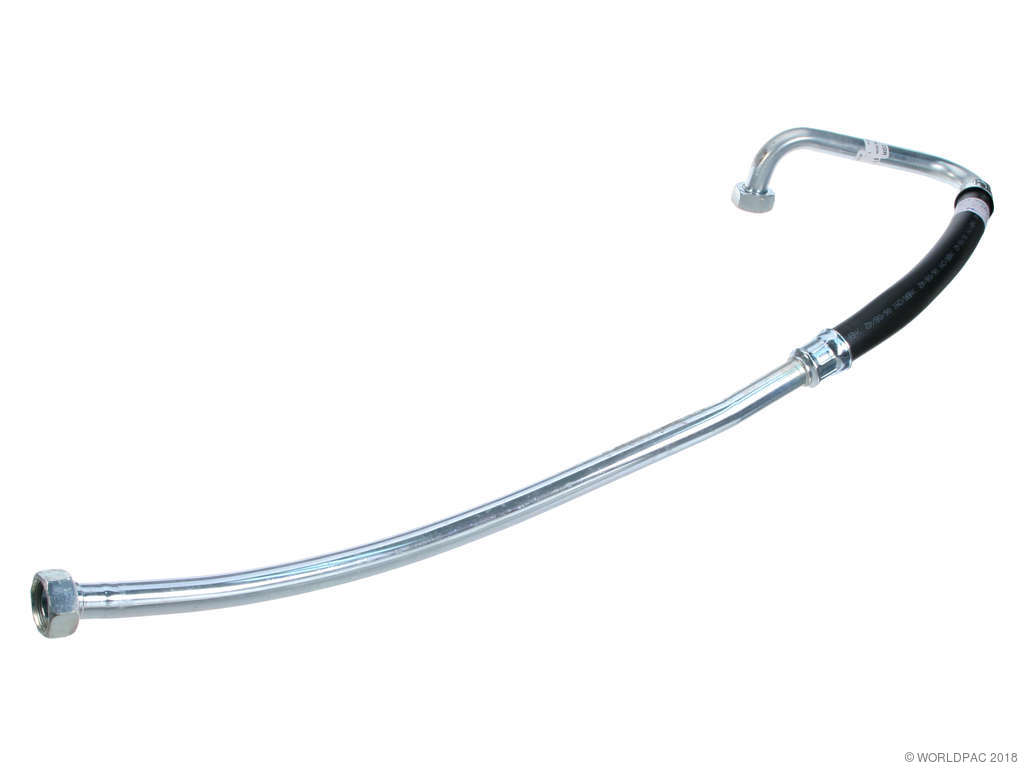

Engine Oil - Suction - w/o Front Cooler - Exc. California - Tank to Engine Case Pipe - 911 107 741 11. Metal & rubber, "L" shaped, approximately 515mm in length.

Tank to Pipe - w/o Front Cooler engine pipe (911 107 739 10). "L" shaped, metal & rubber approximatley 430mm in length.

w/ Front Cooler - From Engine Pipe (911 107 739 10) to Thermostat wheel well. Metal & rubber. Approximately 1335mm in length.

USA Exhaust System From engine pipe (930 107 741 11) to thermostat in wheel well. Rubber and Metal. Approximately 1250mm in length.

Oil Tank to Engine Mounted Cooler

Engine Oil - European Exhaust System From Engine Pipe 930 107 741 11 to thermostat mounted in wheel well. Approximately 1250mm in length. Metal & rubber. *Not Applicable to Slant/Slope Nose Models*

Engine Case to Thermostat Line, Around Pulley End of Engine, Approximately 950mm in length.

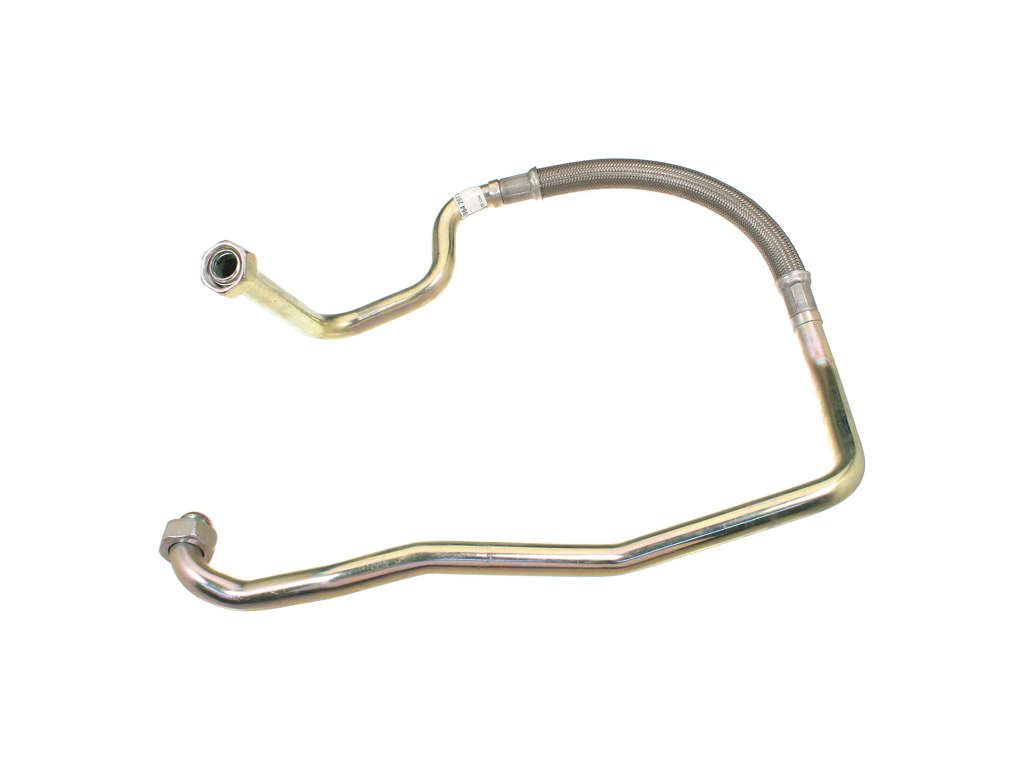

Engine Oil - w/o Front Cooler - Case to Tank Line 911 107 728 00. All metal, passes under transmission. Approximately 850mm in length.

Oil Crossover Pipe to External Thermostat

Oil Filter Console to Thermostat Housing

Oil Filter to Engine Case (Rubber and metal)

Oil Crossover Pipe from Engine

Oil Filter Housing to Thermostat Housing (Rubber and metal)
