Toyota Pickup Engine Timing Gear Set Replacement

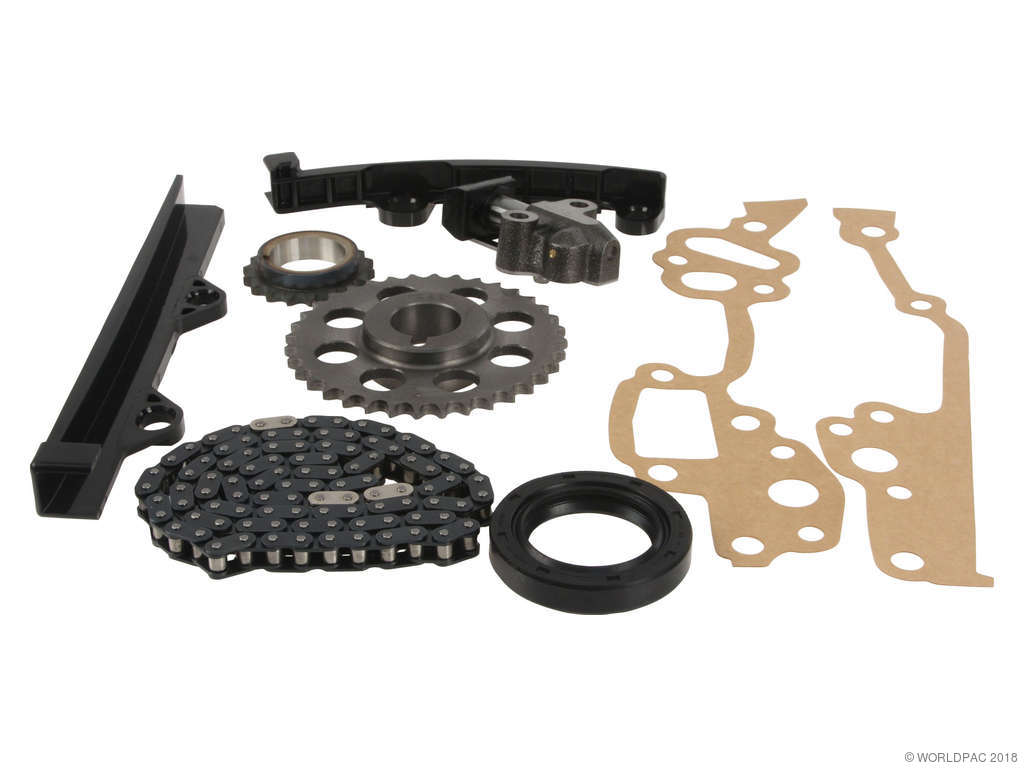

Production: 08/1983-07/1984, Single Row Chain The alignment point of the cam gear in this kit is square cut. The original gear alignment point is round and uses a dowel pin. The square cut cam gear in this kit also uses a dowel pin for alignment. Contents: 13506-35011 timing chain (1); 13540-35011 tensioner (1); 13561-35 010 guide (1); 13562-35010 guide (1); 13523-35010 cam gear (1); 13521-35010 crank gear (1); 90311-45002 crank seal (1); 11328-35011 timing cover gasket (1); 11329-35011 timing cover gasket (1).

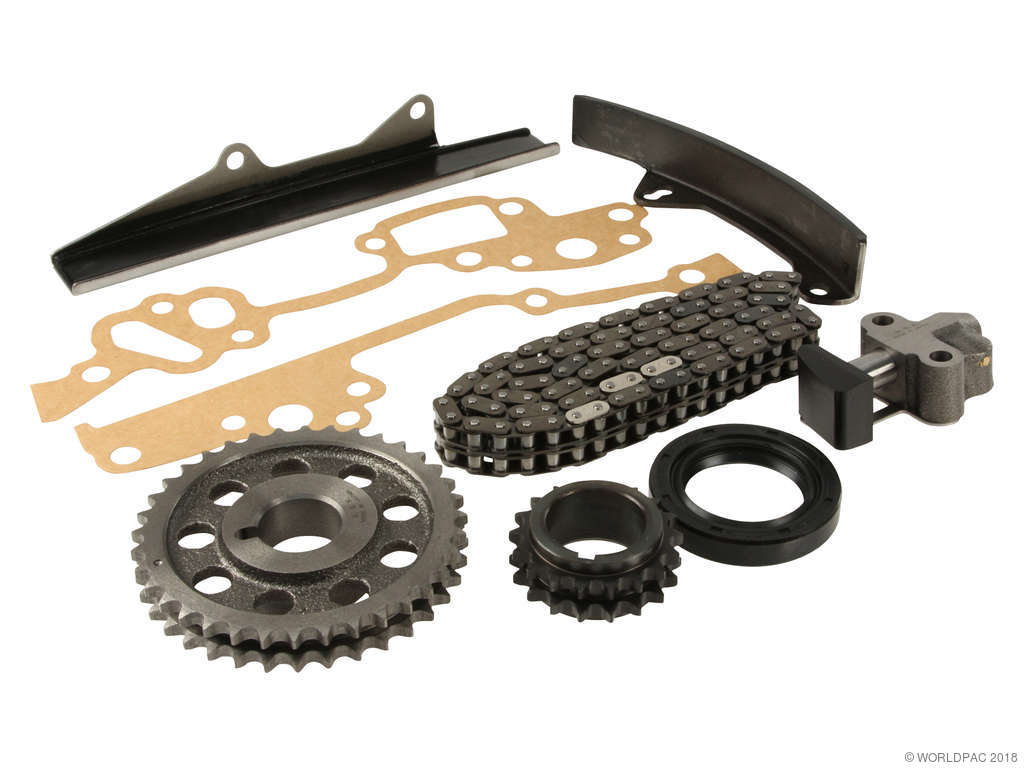

Double Row Chain Contents: 13506-38010 chain; 13540-38012 tensioner; 13561-38010 guide; 13562-38010 guide; 13523-38010 sprocket; 13521-38010 sprocket; 90311-45069 oil seal; 11328-38020 gasket; 11338-38030 gasket.
