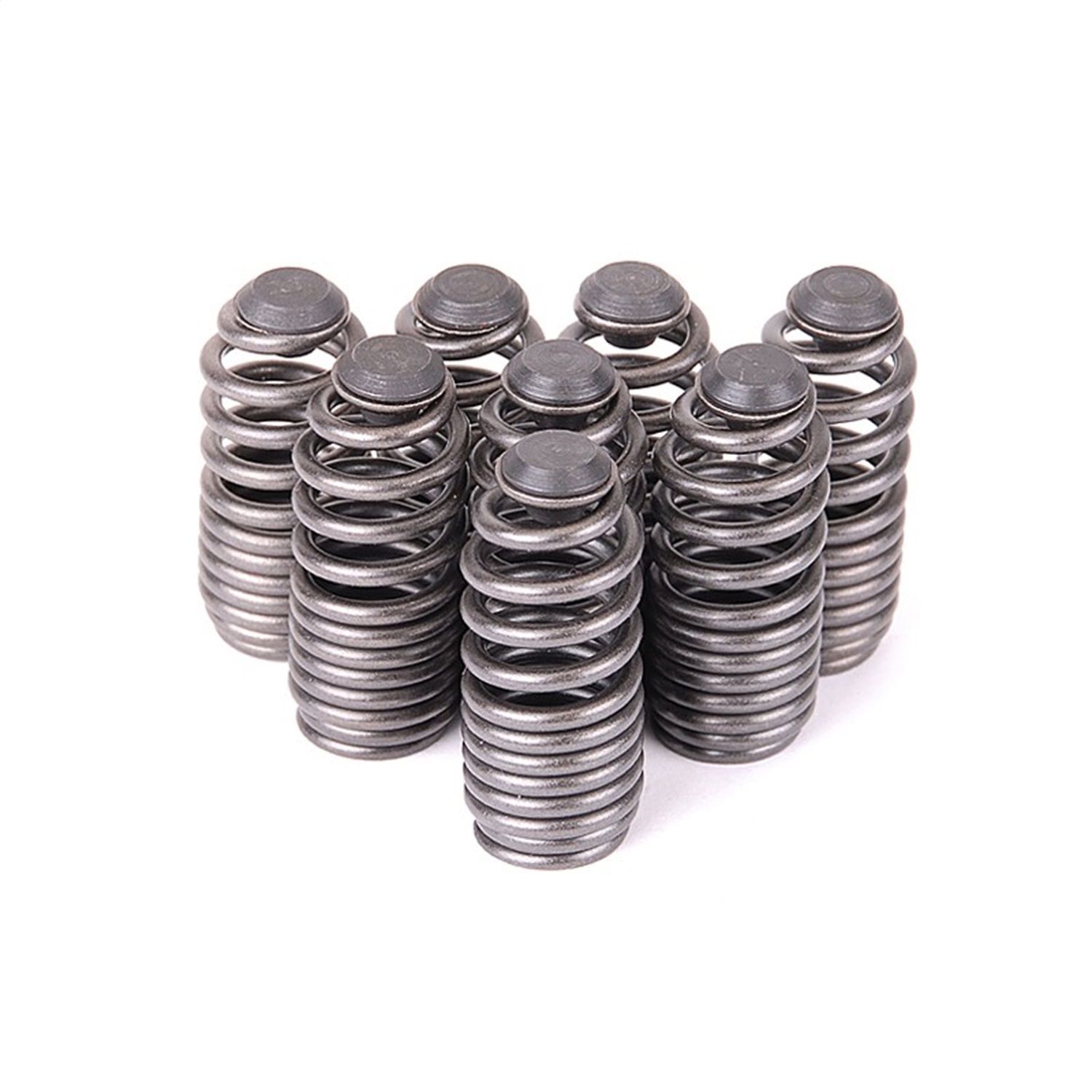

2001, 2000, 1999, 1998, 1997, 1996, 1995, 1994, 1993, 1992 Acura Integra Engine Valve Spring Kit
View 1
View 2
View 3
View 4
View 5
View 6

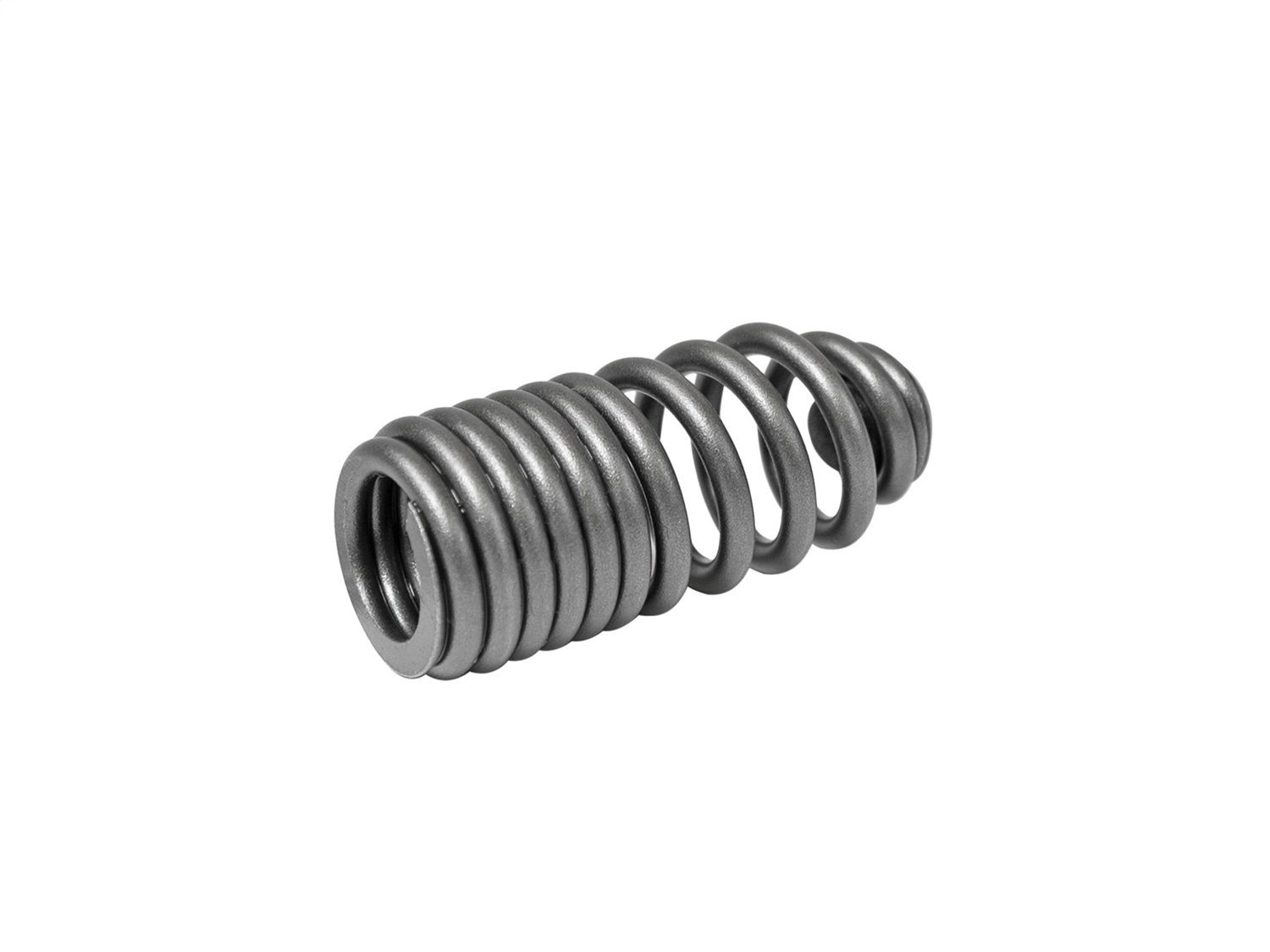

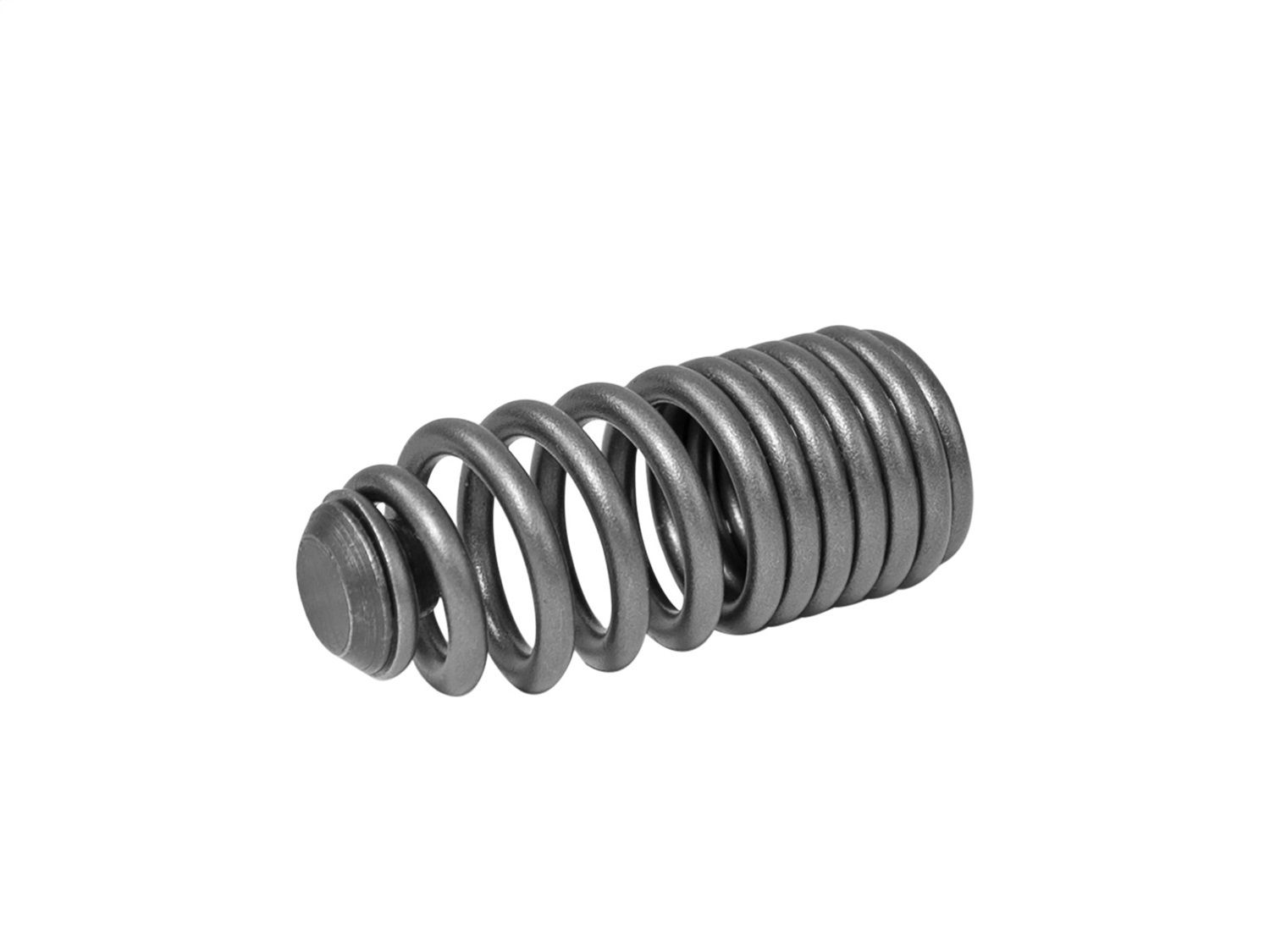

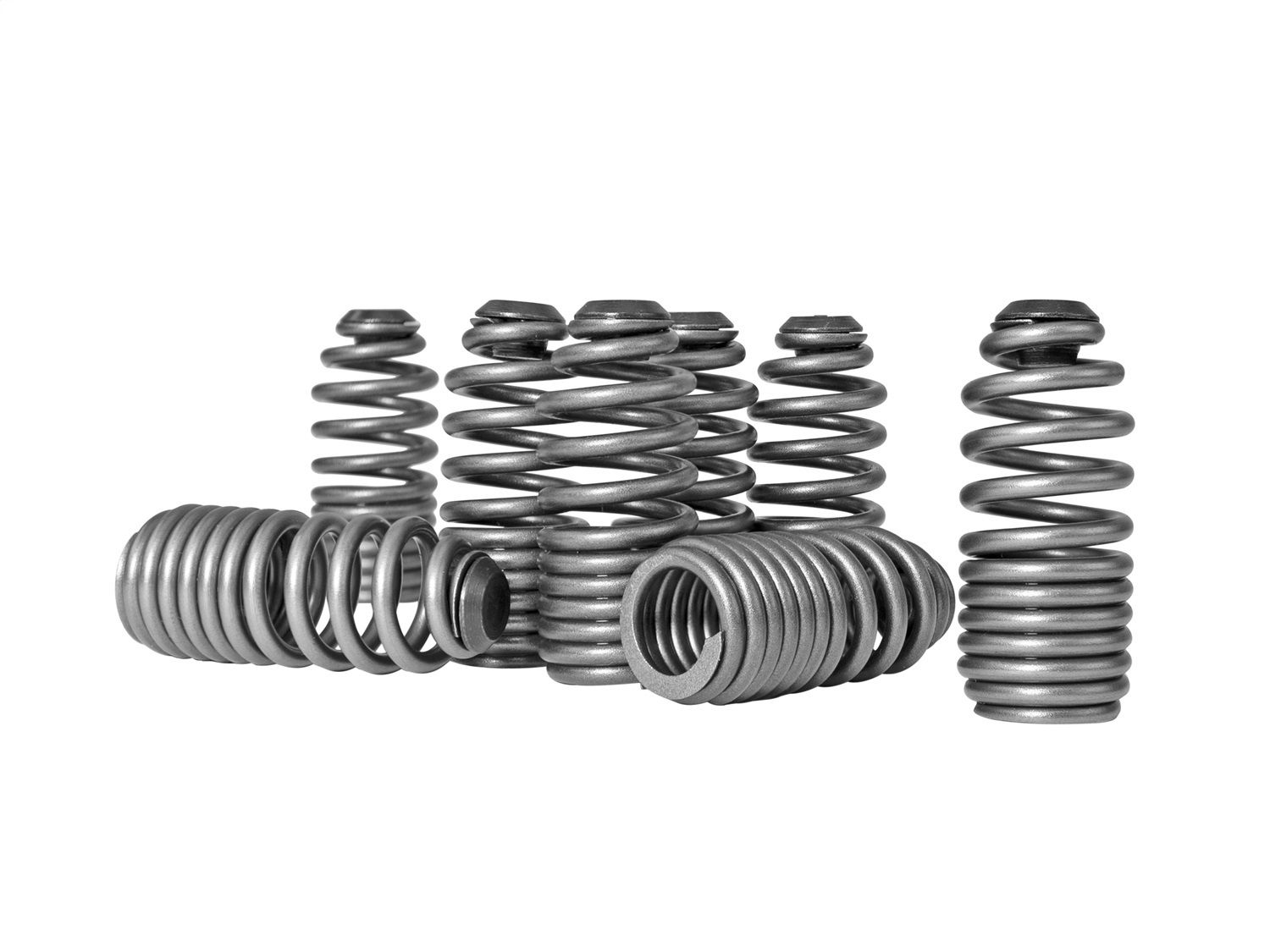

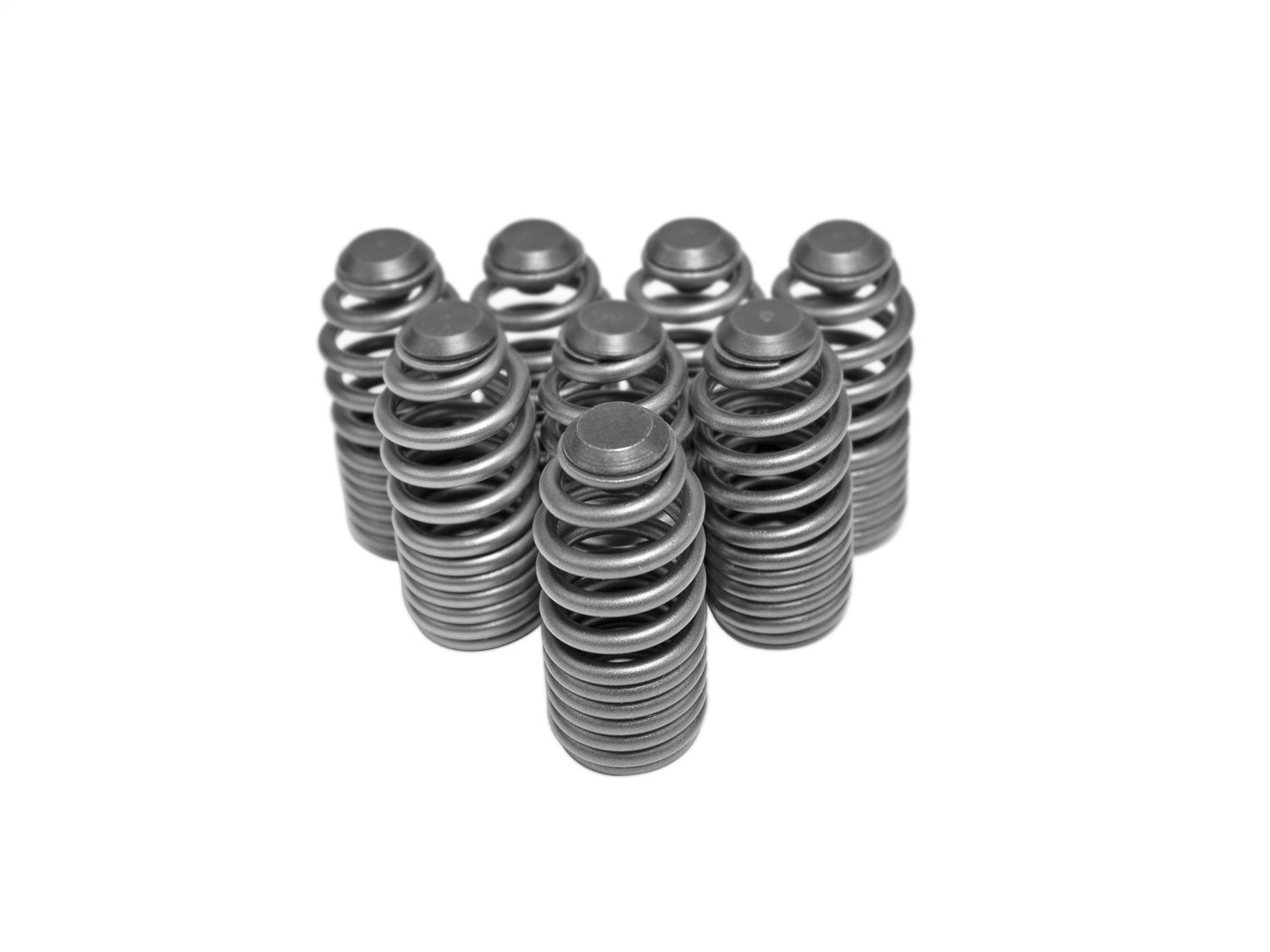

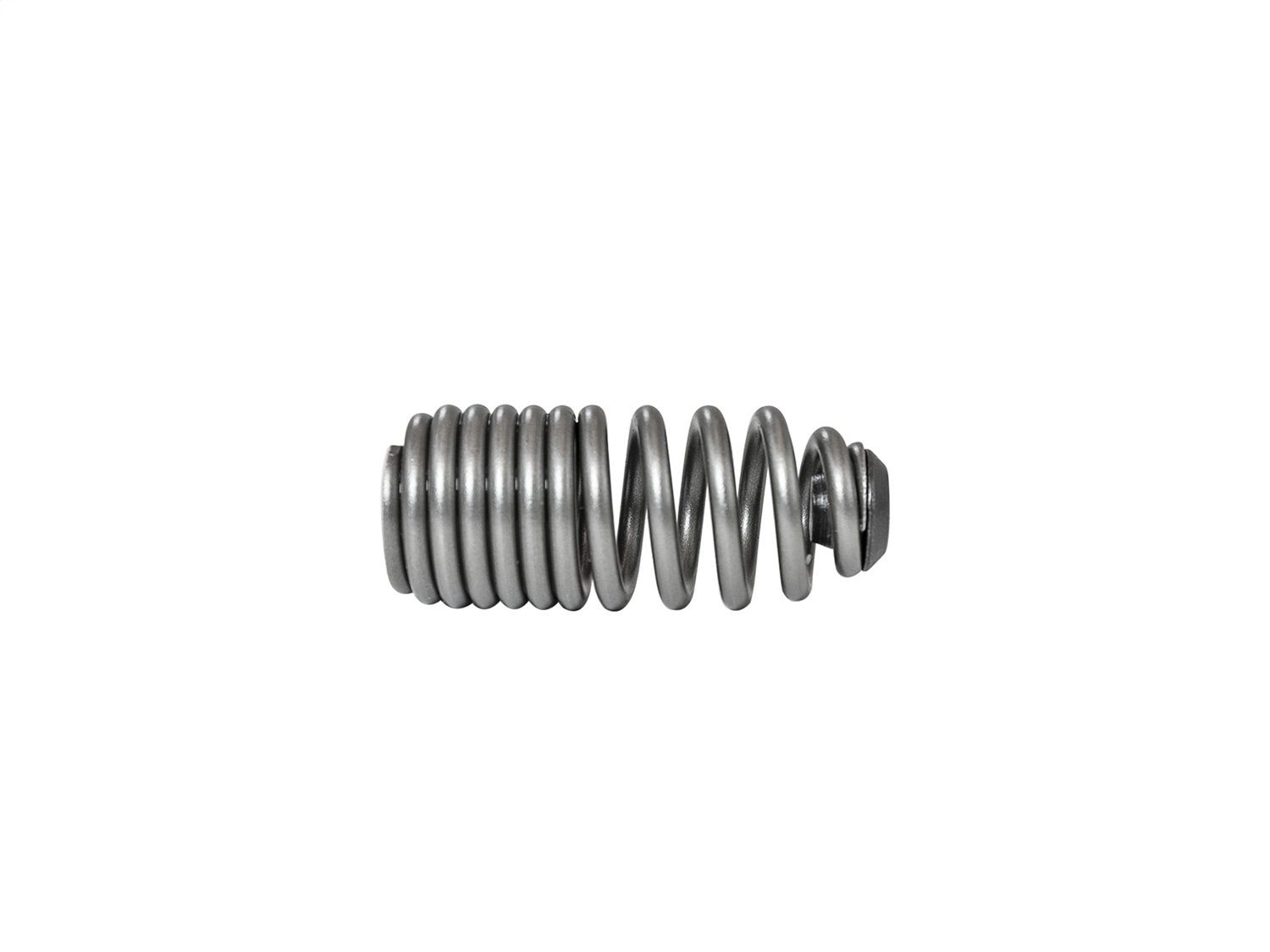

1992 - 2001 Acura Integra Engine Valve Spring Kit (Skunk2 Racing) NEW

Out of Stock
$ 104 .26
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

Spring Type; For Use w/Camshaft Lift Above 0.490 in.
Lost Motion Assembly Spring Set
Skunk2 is proud to introduce its Lost Motion Assembly Kits for Honda's B-series VTEC engines. Skunk2 Lost Motion Assemblies will fit any B-Series DOHC VTEC engine (Type-R/GSR B16A, B17A, B18C). The Skunk2 Lost Motion Assembly is an advance spring device that is designed to put pre-load on the center portion of the VTEC rocker when it is in the unlocked position (when VTEC mode is disabled). During extended operating conditions, the contaminants in the oil will more than likely cause the piston to seize resulting in the VTEC rocker rattling when VTEC is not engaging or when the vehicle is in idle. Each Skunk2 Lost Motion Assembly is manufactured exclusively from chrome silicone steel using the latest 3D CAD (Computer Aided Design) modeling and FEA (Finite Element Analysis) to ensure maximum optimization. Each chrome silicone steel spring features a hardened tip for added durability. Skunk2 engineers then tested and proved their design on the engine dyno as well as the race track. The Skunk2 Lost Motion Assembly Kit replaces the factory piston-style LMA design with an improved design commonly found in newer generation Honda engines. Replacing LMAs are recommended when installing aftermarket camshafts and required when installing Skunk2 Pro Series and other high-lift camshafts. Each Lost Motion Assembly Kit includes a set of 8 assemblies for an entire Honda DOHC VTEC B-Series 4-cylinder engine (Type-R/GSR, B16A, B17A, B18C) and are compatible with all camshafts. When using camshafts with +12.5mm lift, LMAs are an absolute must, and Skunk2 Lost Motion Assembly springs are 3 percent stiffer than ITR springs.
Brand: Skunk2 Racing
Condition: New
See Other Acura Integra Engine Valve Spring Kits
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Camshaft Type Hydraulic
Coil Bind Height 1.150 In.
Inside Diameter Oem
Installed Height 1.770 In.
Installed Pressure 100 Lbs.
Open Height 1.700 In.
Spring Type Single
Tubing Length 220
WARNING CA Proposition 65 Yes
WARNING CA Proposition 65 Message Warning: This Product Can Expose You To Chemicals Including Lead; Which Is Known To The State Of California To Cause Cancer. For More Information; Go To Www.p65warnings.ca.gov.

Vehicle Fitment Guide

This part fits the following vehicles:

Acura 1 model (tapclick to expand)(tapclick to hide)
Integra 1992-2001 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
GS Hatchback 1992 - 1993, 1997 - 2001 L4 1.8L FWD Automatic & Manual
GS Sedan 1992 - 1993, 1997 - 2001 L4 1.8L FWD Automatic & Manual
GS-R Hatchback 1994 - 2001 L4 1.8L FWD Manual
GS-R Hatchback 1992 - 1993 L4 1.7L FWD Manual
GS-R Sedan 1994 - 2001 L4 1.8L FWD Manual
LS Hatchback 1992 - 2001 L4 1.8L FWD Automatic & Manual
LS Sedan 1992 - 2001 L4 1.8L FWD Automatic & Manual
RS Hatchback 1992 - 1998 L4 1.8L FWD Automatic & Manual
RS Sedan 1992 - 1996 L4 1.8L FWD Automatic & Manual
Special Edition Hatchback 1995 - 1996 L4 1.8L FWD Automatic & Manual
Special Edition Sedan 1995 - 1996 L4 1.8L FWD Automatic & Manual
Type R Hatchback 1997 - 2001 L4 1.8L FWD Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
Skunk2 is proud to introduce its Lost Motion Assembly Kits for Honda's B-series VTEC engines. Skunk2 Lost Motion Assemblies will fit any B-Series DOHC VTEC engine (Type-R/GSR B16A, B17A, B18C). The Skunk2 Lost Motion Assembly is an advance spring device that is designed to put pre-load on the center portion of the VTEC rocker when it is in the unlocked position (when VTEC mode is disabled). During extended operating conditions, the contaminants in the oil will more than likely cause the piston to seize resulting in the VTEC rocker rattling when VTEC is not engaging or when the vehicle is in idle. Each Skunk2 Lost Motion Assembly is manufactured exclusively from chrome silicone steel using the latest 3D CAD (Computer Aided Design) modeling and FEA (Finite Element Analysis) to ensure maximum optimization. Each chrome silicone steel spring features a hardened tip for added durability. Skunk2 engineers then tested and proved their design on the engine dyno as well as the race track. The Skunk2 Lost Motion Assembly Kit replaces the factory piston-style LMA design with an improved design commonly found in newer generation Honda engines. Replacing LMAs are recommended when installing aftermarket camshafts and required when installing Skunk2 Pro Series and other high-lift camshafts. Each Lost Motion Assembly Kit includes a set of 8 assemblies for an entire Honda DOHC VTEC B-Series 4-cylinder engine (Type-R/GSR, B16A, B17A, B18C) and are compatible with all camshafts. When using camshafts with +12.5mm lift, LMAs are an absolute must, and Skunk2 Lost Motion Assembly springs are 3 percent stiffer than ITR springs.

Fits Years: 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001

Fits Models: Integra
