| Attribute | Value |
|---|---|
| ABS Tone Ring Included | No |
| Assy/Disassy By Qualified Personnel Required! | . |
| Balancing Type | Mill Balancing |
| Bearings Included | No |

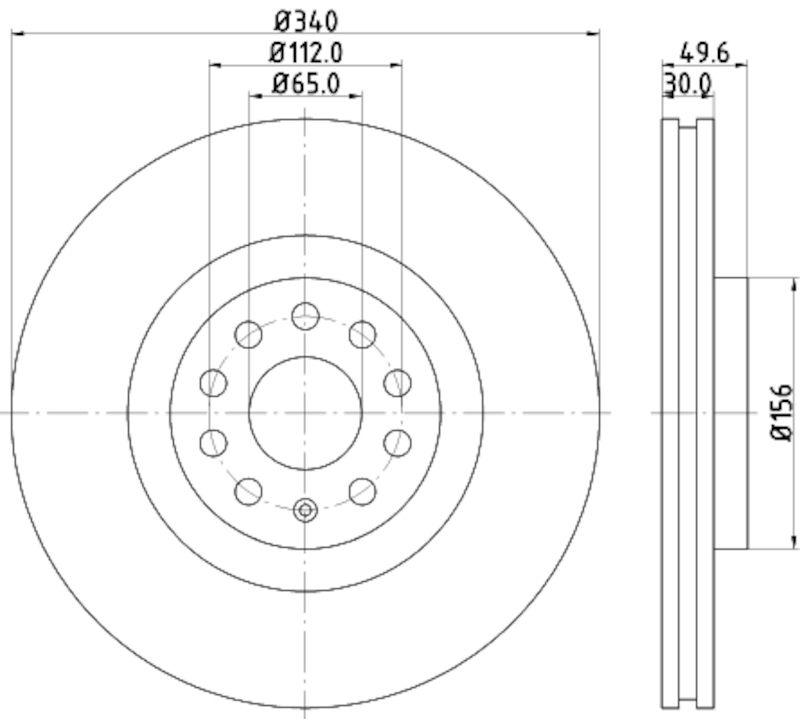

| Bolt Hole Circle Ø [in] | 4.41 |
| Bolt Hole Circle Ø [mm] | 112 |
| Brake Disc Thickness [in] | 1.18 |
| Brake Disc Thickness [mm] | 30 |
| Brake Disc Type | Internally Vented |
| California Proposition 65 Required | No |
| Center Hole Diameter | 108.0 |
| Centering Diameter [in] | 2.56 |
| Construction | Full Cast |
| Directional Or Non Directional Brake Surface | Non-directional |
| Disc Finish | Coated |
| Discard Thickness | 27.0 |
| Grade Type | Standard Replacement |
| Hat Finish | Coated |
| Hole Arrangement / Number | 05/10 |
| Hole Arrangement/Number | 05/10 |
| Inner Diameter [in] | 5.71 |
| Inside Diameter | 65.0 |
| Machining | High-carbon |
| Material | Gray Cast Iron |
| Minimum Thickness [in] | 1.06 |
| Minimum Thickness [mm] | 27 |
| Mounting Bolt Hole Circle Diameter | 112.0 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 30.0 |
| Outer Diameter [in] | 13.39 |
| Overall Height | 49.6 |
| Rust Resistant Coating | Yes |
| Solid Or Vented Type Rotor | Vented |
| Surface | Coated |
| Surface Type | Smooth |
| Technical Information Number | 55298pro_hc |
| Weight [kg] | 10,8, 10.8 |
| Wheel Bolt Bore Diameter [mm] | 15.3 |
| Wheel Bolt Bore Ø [mm] | 15.3 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Hatchback | 2017 | L4 2.0L Turbo | AWD Automatic Dual Clutch |
| Base | Hatchback | 2015 - 2016 | L4 2.0L Turbo | AWD Manual |
| Base | Sedan | 2017 - 2020 | L4 2.0L Turbo | AWD Automatic Dual Clutch |
| Base | Sedan | 2015 - 2016 | L4 2.0L Turbo | AWD Manual |
| Premium | Sedan | 2020 | L4 2.0L Turbo | AWD Automatic Dual Clutch |
| Premium Plus | Sedan | 2015 - 2020 | L4 2.0L Turbo | AWD Automatic Dual Clutch |
| Prestige | Sedan | 2015 - 2019 | L4 2.0L Turbo | AWD Automatic Dual Clutch |
| Progressiv | Sedan | 2015 - 2020 | L4 2.0L Turbo | AWD Automatic Dual Clutch |
| Technik | Sedan | 2015 - 2020 | L4 2.0L Turbo | AWD Automatic Dual Clutch |
We offer fast, reliable shipping on all orders:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
We want you to be 100% satisfied with your purchase. That's why we offer:
| Brand | Part Number |
|---|---|
| Akebono | BN0022 |
| Akebono | BN0022E |
| ATE | 24013002251 |
| Bendix | 521696 |
| Bendix | 562663BC |
| Bendix | BR2830EURO |
| Bendix | BR2830ULT |
| Blue Print | ADV184372 |
| Borg & Beck | BBD5963S |
| Bosch | 0986479734 |
| Bosch | 0986479C90 |
| Brake Engineering | DI956959S |
| Brembo | 09C30611 |
| Brembo | 09C3061E |
| Brembo | 09C3061X |
| Brembo | 59E11457 |
| Cifam | 8001243C |
| Delphi | BG9109 |
| Delphi | BG9109C |
| DON | PCD12781 |
| Dynamic Friction Company | 600-74034 |
| Dynamic Friction Company | 604-74034 |
| Dynamic Friction Company | 900-74034 |
| EBC Brakes | BSD1877 |
| EBC Brakes | D1877 |
| EBC Brakes | GD1877 |
| EBC Brakes | SG2FC1877 |
| EBC Brakes | USR1877 |
| Febi-Bilstein | 39129 |
| Ferodo | DDF2000C |
| Ferodo | DDF2000C1 |
| Ferodo | DDF2592C1 |
| Ferodo | DDF3062C1 |
| FREMAX BRAKE ROTORS AND DRUMS | BD6085 |
| FTE | 9071055 |
| FTE | 9081017 |
| FTE | BS7706 |
| FTE | BS7706B |
| Girling | 6061335 |
| Hella Pagid | 55298PROHC |
| Hella Pagid | 8DD355129241 |
| Japan Parts | DI0907 |
| Japan Parts | DI0907C |
| JP Group A/S | 1163114400 |
| Jurid | 562663JC |
| Jurid | 562663JC1 |
| Jurid | 563171JC1 |
| Jurid | 563706JC1 |
| LPR | V2010V |
| LPR | V2010VR |
| Magneti Marelli | 3.60406E+11 |
| METELLI | 231243C |
| MEYLE | 1835210008PD |
| Mintex | MDC2253 |
| Motaquip | LVBD1628 |
| NK Autoparts | 2047141 |
| NK Autoparts | 3147141 |
| NK Autoparts | 344714 |
| Optimal | BS8712 |
| Optimal | BS8712C |
| Optimal | BS8712HC |
| PAGID Racing | 55298 |
| PAGID Racing | 55298PRO |
| Remsa | 6148510 |
| Remsa | 6148610 |
| SBS | 18152047141 |
| SBS | 18153147141 |
| SBS | 1815344714 |
| Skoda | 5Q0615301C |
| Textar | 92229803 |
| Textar | 92229805 |
| Textar | 98200229801 |
| Textar | MDC82253C |
| Topran | 114839 |
| Trucktec | 0735258 |
| TRW | DF6124S |
| TRW | DF6133S |
| VAICO | V1080119 |
| Valeo | 197677 |
| Valeo | 672769 |
| Volkswagen | 3C0 061 530 C |
| Volkswagen | 3C0 061 530 D |
| Volkswagen | 3C0615301D |
| Volkswagen | JZW698302DG |
| Werner Metzger GmbH | 6110715 |
| Zimmermann | 600324320 |
| Zimmermann | 600324352 |
| Zimmermann | 600324354 |
| Zimmermann | 600324355 |
| Zimmermann | 600326270 |
Fits Years: 2015 2016 2017 2018 2019 2020
Fits Models: S3
