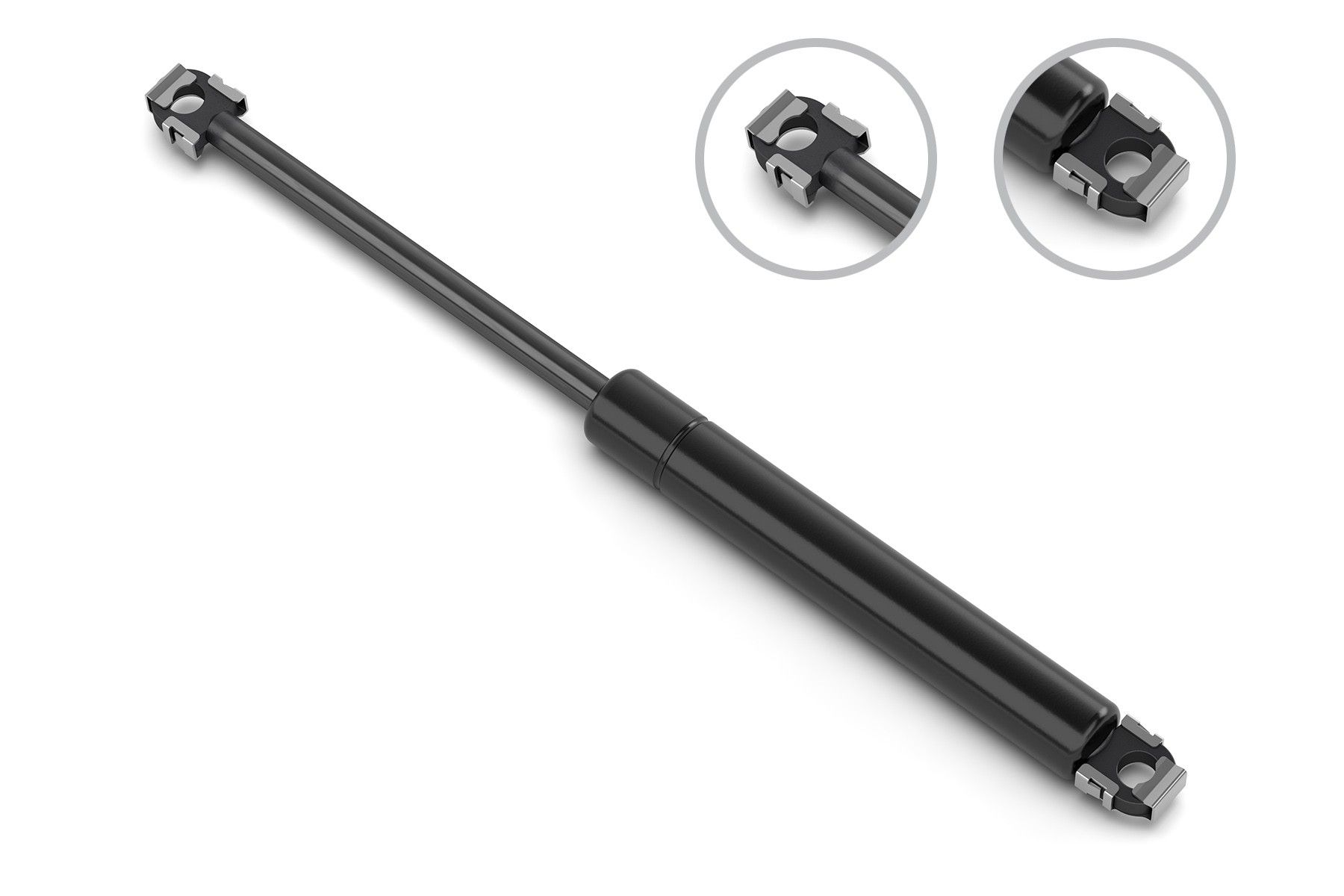

1991 - 1993 BMW M5 Trunk Lid Lift Support (Stabilus) NEW

$ 35 .77
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

⚠️ Most jobs typically require 2 of this item.
w/o Spoiler

Lift-O-Mat by Stabilus - Precision Motion with Controlled Damping The Lift-O-Mat by Stabilus combines advanced hydraulic damping with precise motion control to deliver smooth, dependable performance. Using an innovative oil channeling system, Lift-O-Mat adjusts its damping according to an oil column that flows through a patented labyrinth piston. This unique design allows each Lift-O-Mat to be finely tuned for its application, with damping speeds determined by customized oil viscosities and labyrinth piston configurations. Built for Professionals Engineered with high-quality materials and stabilized by a precision seal-guide system, Lift-O-Mat is crafted to withstand demanding applications with durability and reliable operation. This lift support is the ideal solution for applications requiring smooth, controlled lifting and lowering, making it a trusted choice across automotive, furniture, and ergonomic equipment industries. Why Choose Lift-O-Mat? - Precision Damping: Achieve consistent motion control with custom-tuned oil viscosities and labyrinth piston designs. - High-Quality Build: High-grade materials and a proprietary seal-guide system ensure performance and durability. - Application-Specific Engineering: Every Lift-O-Mat is designed to meet the exact requirements of its application, delivering reliability you can trust. Choose Lift-O-Mat by Stabilus for hydraulic damping that provides a refined, controlled user experience.
Brand: Stabilus
Condition: New
Wrenchy the Robot
Not sure? Ask WrenchyYour Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Agricultural Equipment N
CarLight Truck Y
Compressed Length 220, 8.66
Cylinder Outside Diameter 0.709, 18
End 1 Material Steel
End 1 Mount Diameter 0.327, 8.3
End 1 Type Blade W/retainer
End 2 Material Steel
End 2 Mount Diameter 0.327, 8.3
End 2 Type Blade W/retainer
Engine Specific N
Extended Length 14.35, 364.5
Heavy Truck N
High Performance N
IndustrialOff Highway N
Inner Shaft Diameter 0.315
Marine N
Maximum Force 410, 92
Medium Truck N
MotorCycleRV N
Mounting Hardware Included No
NonVehicle Specific N
Personal Watercraft N
Prop 65 Affected Yes
Prop 65 Chemical Dehp
Prop 65 Warning Warning: This Product Can Expose You To Chemicals Including Di(2-ethylhexyl) Phthalate (dehp), Which Is Known To The State Of California To Cause Canc
Small Engine N
Snowmobile N
Stroke Length 144.5, 5.69
Transmission Specific N
Type Gas

Vehicle Fitment Guide

This part fits the following vehicles:

BMW 1 model (tapclick to expand)(tapclick to hide)
M5 1991-1993 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL
Body Style Years Engine Attributes
Base Sedan 1991 - 1993 L6 3.6L RWD Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
Lift-O-Mat by Stabilus - Precision Motion with Controlled Damping The Lift-O-Mat by Stabilus combines advanced hydraulic damping with precise motion control to deliver smooth, dependable performance. Using an innovative oil channeling system, Lift-O-Mat adjusts its damping according to an oil column that flows through a patented labyrinth piston. This unique design allows each Lift-O-Mat to be finely tuned for its application, with damping speeds determined by customized oil viscosities and labyrinth piston configurations. Built for Professionals Engineered with high-quality materials and stabilized by a precision seal-guide system, Lift-O-Mat is crafted to withstand demanding applications with durability and reliable operation. This lift support is the ideal solution for applications requiring smooth, controlled lifting and lowering, making it a trusted choice across automotive, furniture, and ergonomic equipment industries. Why Choose Lift-O-Mat? - Precision Damping: Achieve consistent motion control with custom-tuned oil viscosities and labyrinth piston designs. - High-Quality Build: High-grade materials and a proprietary seal-guide system ensure performance and durability. - Application-Specific Engineering: Every Lift-O-Mat is designed to meet the exact requirements of its application, delivering reliability you can trust. Choose Lift-O-Mat by Stabilus for hydraulic damping that provides a refined, controlled user experience.

Interchange Parts

Brand Part Number
BMW 51 24 8 110 327
BMW 51241934270
BMW 51248110327
FCS 84472
Stabilus 466816
Stabilus 579165
Stabilus 8356BN
Stabilus 9097EM
Stabilus 9105EP

Fits Years: 1991 1992 1993

Fits Models: M5
