Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.
| Attribute | Value |
|---|---|
| Abutment Clips Included | Yes |
| Air Gap [orely] | 100.5mm |
| Attribute ID (Type) | California Proposition 65 |
| Bleeder Screw Included | Yes |
| Bleeder Screw Included [cntrc] | Yes |
| Bleeder Screw Thread Diameter | 8.000, M8x1.25 |
| Bleeder Screw Thread Size | M8-1.25 |
| Bore Size(s) Millimeters | 44 |
| Bracket # [cntrc] | Na |
| Bracket Included | Yes |
| Bracket Mounting Bolts Include | No |
| Bracket Required (Y/N) | Yes |
| Bracket Required [cntrc] | Yes |

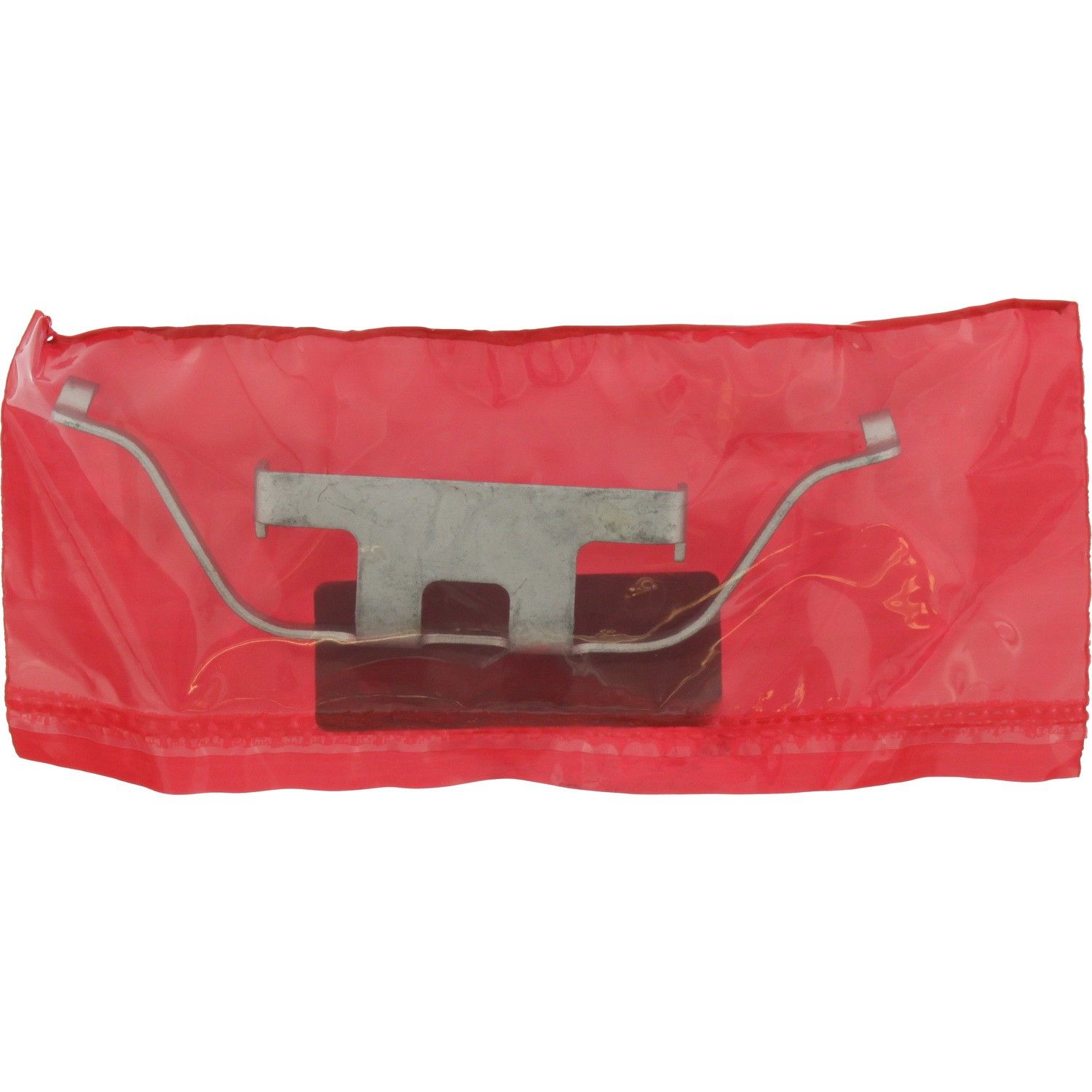

| Caliper & Pad Hardware Include | Yes |
| Caliper Boot & Seal Kit# [cntrc] | 143.39018 |
| Caliper Color | Gray |
| Caliper Manufacturer [cntrc] | Ate |
| Caliper Type | Floating |
| Casting Number | 44/22; 957; Vl3; |
| Color | Gray |
| Disc Brake Caliper Casting Material | Cast Iron |
| Finish | Rust Preventative |
| Finish [cntrc] | Rust Preventative |
| Friction Materials Standards Institute Pad Number | 10x.11700 |
| Hardware Kit# [cntrc] | 117.34013 |
| Inlet Thread Diameter | 10.000, M10x1.0 |
| Inlet Thread Size | M10-1.00 |
| Mount Thread Size [cntrc] Mm | M10-1.50 |
| Mounting Hardware Included | No |
| New Or Ramanufactured [cntrc] | Remanufactured |
| New Or Remanufactured | Remanufactured |
| Pad Wear Sensor Included | No |
| Pads Included | No |
| Piston Diameter | 1.732, 44.000 |
| Piston Material | Steel |
| Piston Quantity | 1 |
| Product Grade [cntrc] | Premium |
| Published Bore Size [cntrc] | 44 |
| Root Core# [cntrc] | 34578 |
| Rust Preventative Coating | Yes |
| Rust Preventative Coating [cntrc] | Yes |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Business | SUV | 2014 | L4 2.0L Turbo | RWD Automatic |
| Sport Line | SUV | 2015 | L4 2.0L Turbo | RWD Automatic |
| X Line | SUV | 2015 | L4 2.0L Turbo | RWD Automatic |
| sDrive20i | SUV | 2012 - 2014 | L4 2.0L Turbo | RWD Automatic |
| sDrive20i M Sport | SUV | 2013 | L4 2.0L Turbo | RWD Automatic |
| sDrive20i Sport | SUV | 2014 | L4 2.0L Turbo | RWD Automatic |
| sDrive20i X Line | SUV | 2013 - 2014 | L4 2.0L Turbo | RWD Automatic |
| sDrive20iA | SUV | 2015 | L4 2.0L Turbo | RWD Automatic |
| sDrive28i | SUV | 2013 - 2015 | L4 2.0L Turbo | RWD Automatic |
| sDrive28i Sport Line | SUV | 2013 | L4 2.0L Turbo | RWD Automatic |
| sDrive28i X Line | SUV | 2013 | L4 2.0L Turbo | RWD Automatic |
| xDrive2.5i | SUV | 2010 - 2011 | L6 2.5L | AWD Automatic |
| xDrive28i | SUV | 2012 - 2015 | L4 2.0L Turbo | AWD Automatic |
| xDrive28i | SUV | 2010 - 2013 | L6 3.0L | AWD Automatic |
| xDrive28i M Sport | SUV | 2012 - 2013 | L4 2.0L Turbo | AWD Automatic |
| xDrive28i M Sport | SUV | 2012 | L6 3.0L | AWD Automatic |
| xDrive28i Sport Line | SUV | 2014 | L4 2.0L Turbo | AWD Automatic |
| xDrive28i Top Line | SUV | 2012 - 2013 | L4 2.0L Turbo | AWD Automatic |
| xDrive28i Top Line | SUV | 2010 - 2011 | L6 3.0L | AWD Automatic |
| xDrive28i X Line | SUV | 2014 | L4 2.0L Turbo | AWD Automatic |
| xDrive35i | SUV | 2013 - 2015 | L6 3.0L Turbo | AWD Automatic |
We offer fast, reliable shipping on all orders:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
We want you to be 100% satisfied with your purchase. That's why we offer:
| Brand | Part Number |
|---|---|
| Beck/Arnley | 0771941S |
| CARDONE Reman | 193328 |
| CARDONE Reman | 19B3328 |
| Casting Numbers | 34216769104 |
| Casting Numbers | 44/22 |
| Casting Numbers | 750 |
| Casting Numbers | 957 |
| Casting Numbers | VL3 |
| Fenco | C6253 |
| Fenco | SLC6253 |
| IMC | 61206664 |
| King Kalipers | 1806 |
| NAPA Brake Calipers | 24273879A |
| Nugeon | 2202348L |
| OEM Part Number | 34216769101 |
| UCX | 102746S |
| Wagner Brake | CRB140404 |
Fits Years: 2010 2011 2012 2013 2014 2015
Fits Models: X1
