| Attribute | Value |
|---|---|
| Center Electrode Core Material | Copper |
| Center Electrode Insulator Tip Projection | 0.187, 4.75 |
| Center Electrode Projection | Long Projection |
| Center Electrode Tip Material | Nickel |
| Core Nose Length | 0.55, 13.97 |
| Electrical Terminal Type | Non-removable Nut |
| Grade Type | Regular |
| Ground Electrode Quantity | 1 |

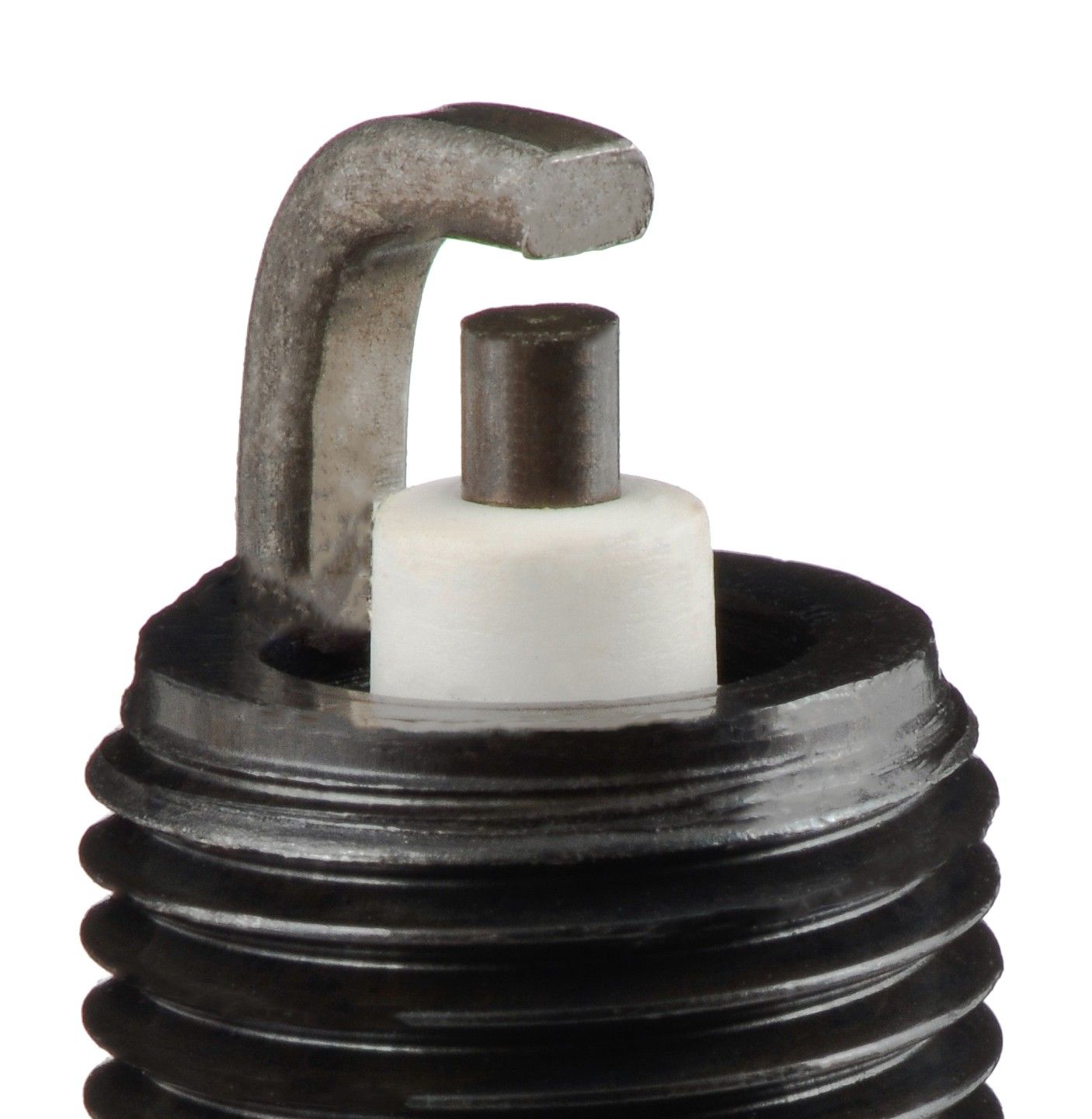

| Ground Electrode Tip Design | Standard |
| Ground Electrode Tip Material | Nickel |
| Hex Size | 5/8 |
| Hex Type | Hex |
| Indexed | No |
| Insulator Height | 1.988, 50.5 |
| Insulator Material | Ceramic |
| Pre Gap Size | 0.044, 1.12 |
| Reach | 0.75, 19.05 |
| Resistance | 4000 |
| Resistor Type | Yes |
| Seat Type | Flat |
| Washer Included | Yes |
| Washer Type | Crush |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 3.0i | SUV | 2004 - 2006 | L6 3.0L | AWD Automatic & Manual |
| 3.0si | SUV | 2007 - 2009 | L6 3.0L | AWD Automatic |
| 4.4i | SUV | 2004 - 2006 | V8 4.4L | AWD Automatic |
| 4.4i Formula 1 | SUV | 2004 - 2006 | V8 4.4L | AWD Automatic & Manual |
| 4.4i Lujo | SUV | 2004 - 2006 | V8 4.4L | AWD Automatic & Manual |
| 4.4i Top Line | SUV | 2004 - 2006 | V8 4.4L | AWD Automatic & Manual |
| 4.8i | SUV | 2007 - 2008 | V8 4.8L | AWD Automatic |
| 4.8i Premium | SUV | 2007 - 2009 | V8 4.8L | AWD Automatic |
| 4.8is | SUV | 2005 - 2006 | V8 4.8L | AWD Manual |
| 4.8is | SUV | 2004 - 2006 | V8 4.8L | AWD Automatic |
| M | SUV | 2010 | V8 4.4L Turbo | AWD Automatic |
| xDrive30i | SUV | 2009 - 2010 | L6 3.0L | AWD Automatic |
| xDrive30i M Sport | SUV | 2009 - 2010 | L6 3.0L | AWD Automatic |
| xDrive35d | SUV | 2009 - 2010 | L6 3.0L DIESEL Turbo | AWD Automatic |
| xDrive48i | SUV | 2009 - 2010 | V8 4.8L | AWD Automatic |
| xDrive48i M Sport | SUV | 2009 - 2010 | V8 4.8L | AWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| ACDelco | FLRLTE |
| Bosch | 7562 |
| Bosch | 7959 |
| Bosch | F7HER02 |
| Bosch | F7LC0R2 |
| Bosch | FLR8LDCU+ |
| Bosch | FQR8LEU2 |
| Bosch | FR7HE02 |
| Bosch | FR8LCX |
| Bosch | FR9LCX |
| Bosch | FR9LCX+ |
| Champion Spark Plug | 347 |
| Champion Spark Plug | 4318 |
| Champion Spark Plug | 455 |
| Champion Spark Plug | KC8ZMCC |
| Champion Spark Plug | QC9MC4 |
| Champion Spark Plug | RC10DMC |
| Champion Spark Plug | RC11ZYC4 |
| Champion Spark Plug | RC12LC4 |
| Champion Spark Plug | RC12LYC |
| Champion Spark Plug | RC12MC4 |
| Champion Spark Plug | RC12MCC4 |
| Champion Spark Plug | RC9MC4 |
| Champion Spark Plug | RC9MCC |
| Chrysler | 56028179 |
| Chrysler | 56028189 |
| Chrysler | 56028236AA |
| Chrysler | SPOZFR5F11 |
| DENSO Auto Parts | K16GPR-U11 |
| DENSO Auto Parts | K16TR11 |
| DENSO Auto Parts | KJ14CR-L11 |
| DENSO Auto Parts | KJ14CR11 |
| DENSO Auto Parts | KJ16CR-L11 |
| DENSO Auto Parts | KJ20CR-L11 |
| DENSO Auto Parts | KJ20CR11 |
| DENSO Auto Parts | KJ20DR-M11 |
| DENSO Auto Parts | Q16PR-U |
| DENSO Auto Parts | QJ16AR-U |
| DENSO Auto Parts | QJ20CR11 |
| General Motors | 93742299 |
| General Motors | 96476119 |
| Honda | 98079-5514G |
| Mopar | SP00QC9MC4 |
| Mopar | SP0RC12LC4 |
| Mopar | SP0RC12MC4 |
| Mopar | SPRC12MCC4 |
| Motorcraft | SP445 |
| Motorcraft | SP445A |
| Motorcraft | SP445AX |
| NGK | BKR5EKB-11 |
| NGK | BKR5EKU |
| NGK | BKR6EKB-11 |
| NGK | ZFR4F-11 |
| NGK | ZFR5A-11 |
| NGK | ZFR5D-11 |
| NGK | ZFR5E-11 |
| NGK | ZFR5F |
| NGK | ZFR5F-11 |
| NGK | ZFR5J-11 |
| NGK | ZFR5N |
| NGK | ZFR6A-11 |
| NGK | ZFR6F-11 |
| NGK | ZFR6F-11G |
| NGK | ZFR6J-11 |
| NGK | ZFR6K-11 |
| NGK | ZFR6K-13 |
| NGK | ZFR6U-11 |
| NGK | ZFR7F |
| Splitfire - Archived | CC522D |
| Splitfire - Archived | SF522D |
| Suzuki | 11109-85Z00 |
| Suzuki | 11109-85Z10 |
| Torch | K7RF |
| Toyota | 90919-01192 |
Fits Years: 2004 2005 2006 2007 2008 2009 2010
Fits Models: X5
